ETX900-TSO-INSTALL-KIT
$225.00
Approved STC installation kit to be used with the ETX900-TSO battery. This kit does NOT INCLUDE the battery.
The picture of the kit is for illustrative purposes.
You may not use all the pieces in the kit;
no left over parts can be returned.
Kits are non-returnable!
What’s included in STC Install Kit:
KIT Parts List
| Item | Qty | Part Number | Part Description |
| 1 | 1 | 11MM12 | MIL Spec Amber 12 Volt LED (MS25041-4) |
| 2 | 1 | 200208 | Fault Indicator Placard |

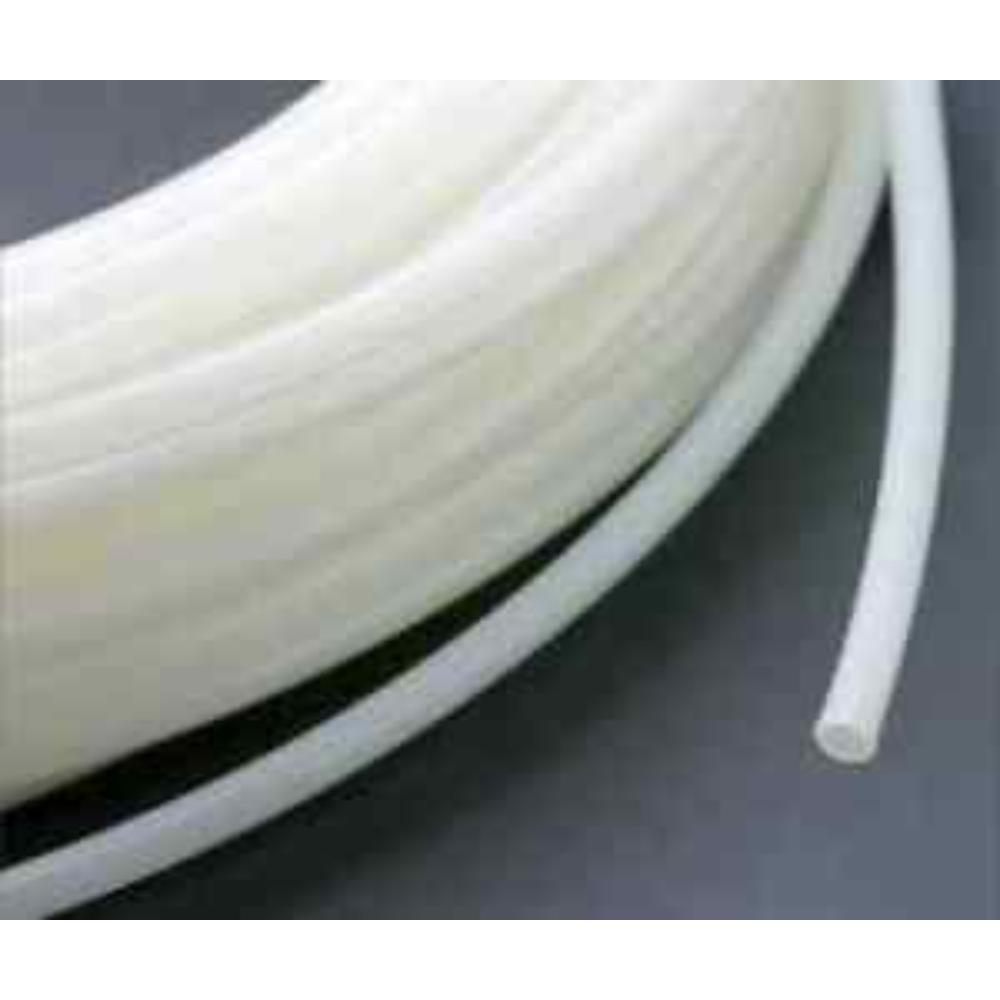

| 3 | 2ft | 5239K13 | 1/4” Teflon Tubing |
| 4 | 3ft | 5239K15 | 3/8” Teflon Tubing |
| 5 | 1 | 5463K722 | 3/8” Wye Tube Fitting |
| 6 | 1 | 9600K316 | 3/8”ID 9/16” OD, 1/16” Panel Grommet |
| 7 | 2 | 230607 | EPDM Foam ¼”x1 ½”x2” |
| 8 | 1 | 220707 | Quick Reference Guide |
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 0.1 × 0.1 × 0.1 in |
| Brand | EarthX Batteries |
You must be logged in to post a review.
SHIPPING INFORMATION
We can ship by UPS, or USPS and DHL Express. We ship nationally, and internationally.
Carriers In Use
SHIPPING COSTS
- International Shipping Quote has to be done manually due to dimensions, weight, end destination, and more. Please E-Mail us.
- Any manner or method is available, call if you need Priority 1-2 day or overnight shipping.
- We are shipping with UPS or USPS and DHL Express
Related products
BB-MU2 Light Weight Aluminum Battery Box
The light weight aluminum battery box is excellent to use with the EarthX lithium “E” case batteries for easy installation. Has a bolt-down tab for easy removal of the battery from the front or top, and is acrobat rated (even with PC680).
This battery box can be used with: ETX680, ETX900, ETX900-VNT, ETX1200, and Odyssey’s PC680
If you are using the battery box for the EarthX Lithium batteries, you will use a foam spacer on the left and right side of the battery for a snug fit. If you are using the battery box for the PC680, you will use the foam spacer on the backside at the bottom of the case to adjust for the tapering of the case for a snug fit.
This battery box was engineered to be strong enough to withstand 30 G of force for the EarthX Lithium Batteries or 6G of upward force and 9G of downward force with the PC680. It only weighs .23Kg or 8oz. This unique design allows for simple, easy installation with the dimensions: 7.1″ L x 3.1″ W x 6.5-6.6″ (adjustable height) or (180mm x 80mm 166-168mm).
What’s included:
- 1 x battery box
- 1 x top front removeable hold down tab
- 2 x screws for hold down
Vent Port Kit
This kit includes includes machined aluminum vent port, washer and nut to make the installation of a vented EarthX battery easy and professional looking. This vent port is designed for our ETX900-VNT battery. This custom machined port is designed to accept the ETX900’s ¼” O.D. vent tubes. The port is an anodized aircraft aluminum. The two vent tubes easily connect to the port with a “push-to-connect” connection like most small diameter tube fittings on the market today.
This port can be incorporated into most new or existing aircraft builds, making a clean, low profile finish.
Hole size required in aircraft skin for port is 1 1/8”.
BB-MU Light Weight Battery Box Fit “E” Case And PC680
The light weight aluminum battery box is excellent to use with the EarthX lithium batteries for easy installation. This battery box can be used interchangeably for the EarthX Lithium Battery models ETX680/900/900-VNT/1200 or the Odyssey PC680 with the use of a foam spacers. We call it the multi-use battery box for this reason.
If you are using the battery box for the EarthX Lithium batteries, you will use a foam spacer on the left and right side of the battery for a snug fit. If you are using the battery box for the PC680, you will use the foam spacer on the backside at the bottom of the case to adjust for the tapering of the case for a snug fit.
This battery box was engineered to be strong enough to withstand 30 G of force for the EarthX Lithium Batteries or 15 G of force for the PC680 yet only weighs .275Kg or 10oz. This unique design allows for simple, easy installation with the dimensions: 7.1″ L x 3.1″ W x 6.5-6.6″ (adjustable)H or (180mm x 80mm 166-168mm).
What’s included:
- 1 x battery box
- 1 x top front hold down
- 2 x screws for hold down
Adapter-ABF (Terminal Adapter Designed For A, B, And F Cases)
This terminal adapter kit comes with 2 brackets and 2 screws for the positive and negative posts with the standard size of 6mm and makes for an easy installation when your motor sports vehicle requires a side or front mounted battery cable versus top mounting. Fits all A, B, and F cases.
Comes included with the following batteries: ETX18B and ETX18F.
