Hawker Beechcraft ETX900-TSO-BC-KIT
$225.00

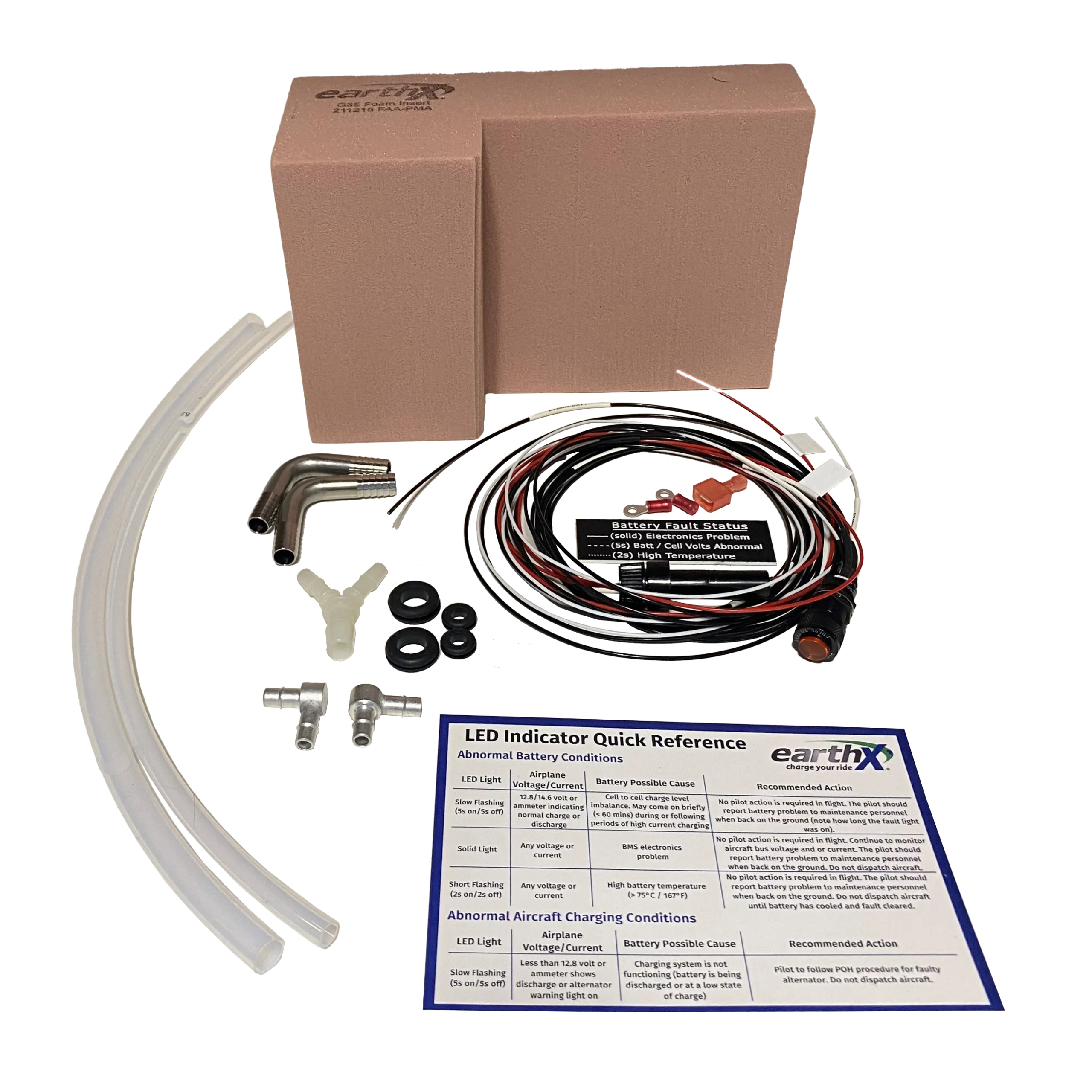

Approved STC installation kit to be used with the ETX900-TSO battery. This kit DOES NOT include the battery, it is sold separately.
What’s included:
KIT Parts List:
| Item | Qty | Part Number | Part Description |
| 1 | 1 | 211215 | 35ah Battery Box Spacer |
| 2 | 1 | 11MM12 | MIL Spec Amber 12 Volt LED |
| 3 | 1 | 200208 | Fault Indicator Placard |
| 4 | 1ft | 5239K15 | 3/8” Teflon Tubing |
| 5 | 1 | 5463K722 | 3/8” Wye Tube Fitting |
| 6 | 2 | 9600K316 | 3/8”ID 9/16” OD, 1/16” Panel Grommet |
| 7 | 1ft | 5239K13 | 1/4” Teflon Tubing |
| 8 | 2 | L6-AL | 90 Degree ¼” Close Elbows |
| 9 | 2 | 5670K18 | 90 Degree 3/8” SS Elbows |
| 10 | 2 | 9600K313 | 1/4”ID 3/8” OD, 1/16” Panel Grommet |
| 11 | 1 | 220707 | Quick Reference Guide |
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 0.1 × 0.1 × 0.1 in |
| Brand | EarthX Batteries |
| Aircraft Model | 19A, 23, A23, A23-19, A23-24, A23A, A24, A24R, B19, B23, B24R, C23, C24R |
