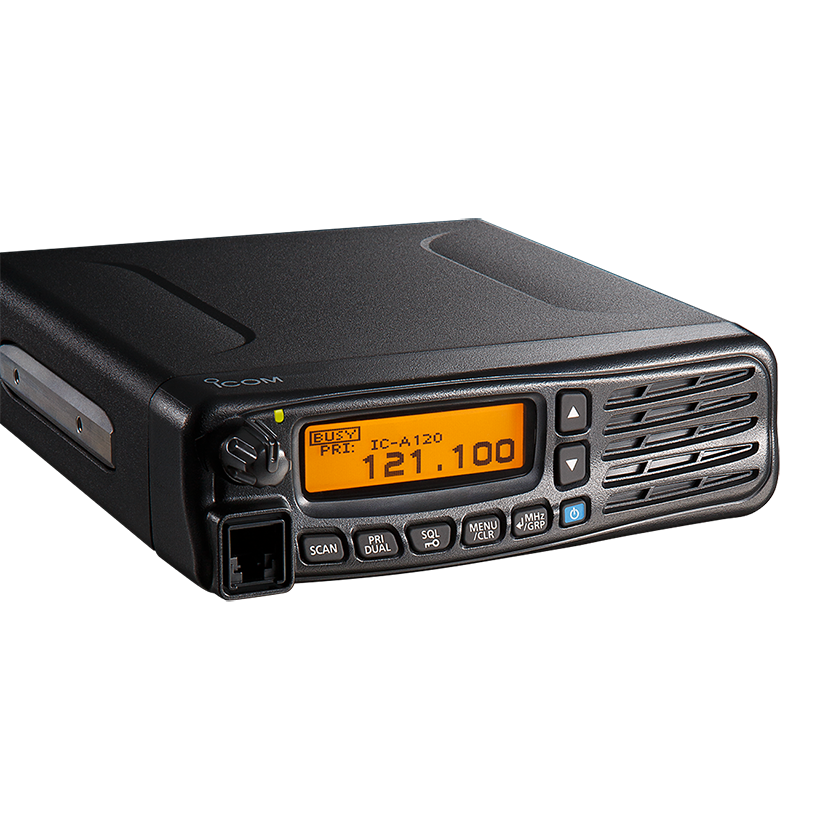

IC-A120 VHF Airband Mobile Transceiver | Vehicle Mount

Icom’s IC-A120 VHF Airband Mobile Transceiver introduces two features: Active Noise Cancelling (ANC) and Bluetooth® capabilities. The built-in ANC reduces background noise and is effective in extremely noisy airport environments. The automatic noise limiter (ANL) reduces pulse-type noise such as engine ignition.

The IC-A120 also features an ON-Hook scan function that automatically starts scanning when the hand microphone is hooked on the microphone hanger. When a user takes the microphone OFF hook, the scanning stops at the priority channel or displayed channel. A Dualwatch function checks the priority and operating channels alternatively. Meets IP54 standards for dust protection and water-resistance.

This version includes a vehicle mount and hand microphone.

Features

Includes:

• Vehicle mount
• Hand microphone (HM-216)
• DC power cable
• Microphone hanger kit
• Mounting bracket kit
• Fuses

Features:

• Dot-matrix LCD display is easy to read with crisp, clear text
• Memory channels and other radio settings can be programmed from the front panel
• Provides 200 memory channels with 12-character channel names and 8.33 kHz and 25 kHz channel spacing
• Built-in Active Noise Canceling (ANC) reduces background noise in the received and transmitted signals
• Automatic noise limiter (ANL) reduces pulse-type noise such as engine ignition (ANL and ANC functions cannot be used at the same time)
• IP54 dust-protection and water-resistant construction allows the IC-A120 to be used in open-air vehicles
• ON-Hook scan function automatically starts scanning when the hand microphone is hooked on the microphone hanger
• Dualwatch feature checks the priority and operating channels alternatively while ON-Hook
• Provides optional Bluetooth® headset connectivity when the UT-133 Bluetooth unit is added — allowing for third-party wireless Bluetooth headsets to be used
• Third-party headsets can be used with the optional OPC-871A headset adapter
• Optional HM-217 speaker-microphone allows the user to listen to received audio through the HM-217’s built-in speaker
• The speaker-microphone features up/down buttons as well as two programmable P1/P2 buttons that serve as a shortcut for activating frequently used functions
• Compatible with 12- and 24- volt systems
• 36W (PEP) RF output power
• Power-on password protection
• PC programming capability
• CI-V Commands for external control
• VE-PG3 RoIP gateway for interconnecting with other radio devices

Specifications

• Weight: 1.5 kg (3.3 lb)
• Dimensions: 161 x 45 x 193 mm (6.34 x 1.77 x 7.6 in)
• Frequency Range: 118.000 to 136.992 MHz
• Channel Spacing: 25 kHz/8.33 kHz
• Type of Emission: A3E (AM)
• Number of Memory Channels: 200 channels
• Antenna Connector: M type (50Ω)
• Power Supply Requirement: 13.75 V/27.5 VDC
• Current Drain (at 13.75 VDC): Transmitting: 5.0 A max. Receiving: 4.0 A (at AF max.), 0.5 A at standby
• Operating Temperature Range: -30°C to 60°C
• Frequency Stability: ±5 ppm (-30°C to 60°C)
• TRANSMITTER: Output Power (at 13.75V): 9.0 watts typical (carrier power)
• Modulation: 70% to 100%
• Spurious Emission: less than 60 dB (harmonics/non-harmonics, 30MHz to 1 GHz)
• Microphone Impedance: 600Ω
• RECEIVER: Intermediate Frequency: 38.85 MHz/450 kHz (1st/2nd)
• Sensitivity (pd): 1 µV (6 dB S/N)
• Selectivity: 8.33 kHz: 2.778/7.37 kHz (6 dB/ 60 dB) 25 kHz: 8/25 kHz (6 dB/60 dB)
• Spurious Response: more than 74 dBµ
• Audio Output Power:10% distortion, 60% modulation
• Internal Speaker: 1.5 watt (8Ω load)
• External Speaker: more than 10 watt (8Ω load)
• Headphones: more than 100 mW (500Ω load)
• Applicable IP Rating: dust and water: IP54 (dust-protection and water resistance)
