Click Images Below to Order Them as a Standalone
Add a Breaker To Your Cart
The TY96A and TMA45 require a 5 amp breaker Each. The TMA44 requires a 2 amp breaker.

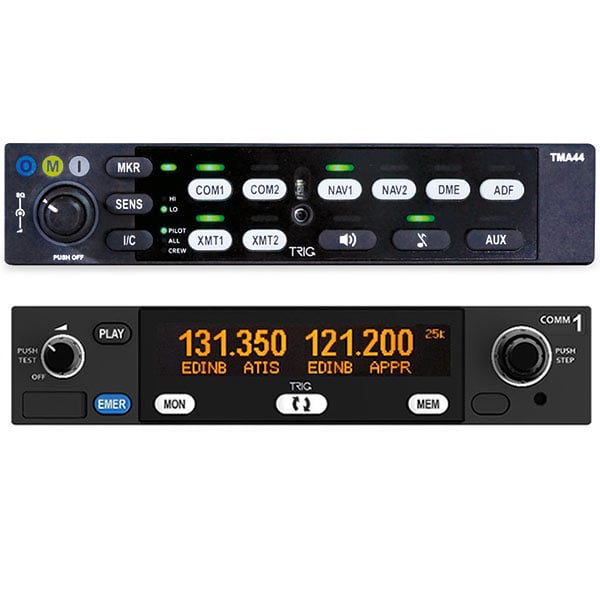

TMA44 or TMA45 + TY96A Bundle Promotion
*until supplies last
- This is a bundle promotion featuring the TMA45 Stereo Bluetooth Audio Panel + the TY96A VHF 10W 25Khz Radio. Both sets of equipment are very capable and made of the highest quality. Optionally the lesser capable TMA44 which features Mono and only up to 4 places is an economical way to add an audio panel.
- Choose the Harness Option to add a Harness to your package. Harness prices are normally $650/each saving time and money during the installation process. Harnesses take up to 2 weeks to manufacture, we can still ship out the avionics less the connectors.
- Shipping is Included in the Pricing.
- The TY96A is Normally $2000.00
- The TMA45 is Normally $1953.00
- The TMA44 is Normally $1334.00
You can purchase the Audio Panel alone, as well as the Radio alone. Utilize the coupon on the products page for the promotional discounted pricing.
TMA45 AUDIO PANEL
The TMA45 audio panel work seamlessly with Trig stack products, they combine practical features and great value. Both panels support IFR and VFR flight and will also operate with a wide selection of existing legacy avionics.
Trig audio panels enable simple control of all your navigation, communication and entertainment choices – benefiting from Trig’s ‘Better by Design’ philosophy. The result – a logical and high quality interface that’s easier to use, with features pilots and passengers really appreciate.
About the TMA45:
- Stereo – full support for Bluetooth – phone / music
- High quality audio processing – TDNR and TAM
- Superior user interface – simple operation
- Dedicated buttons for ADF and DME functions
- Marker beacon receiver – with indicators
- Support 2-6 seats
- Plug and play retro-fit for the GMA340
BLUETOOTH AND STEREO – MAKE EVERY FLIGHT A SOUND PERFORMANCE
Hosting 2-6 seats the TMA45 has industry leading Trig Digital Noise Reduction (TDNR). By automatically selecting the optimum level of squelch and mic threshold TDNR reduces cockpit noise. This improves your audio environment; it aids pilot concentration and combats fatigue. Our Superior panel also features Trig Active Mute (TAM) this further removes unwanted background noise from radio static, producing class leading audio quality.
By creating a more comfortable audio environment you are best placed to enjoy the TMA45’s stereo music entertainment and mobile phone connectivity. Integrated Bluetooth allows two portable electronic devices to be connected providing stereo music and communication options – it’s the preferred solution for discerning pilots who want to stay connected.
PRODUCT INSTALLATION
The TMA45 is designed to fit in a standard avionics rack, it has two connectors and is a plug and play retrofit for the GMA340.
Specifications:
2-6 Seats
(TDNR) Trig Digital Noise Reduction and (TAM) Trig Active Mute provide the best quality of noise suppression and audio support for headsets and associated equipment.
Bluetooth: Yes – music / mobile phones can be connected via wireless.
TY96A 10w VHF Radio
The Trig stack radio has defined a new standard in design and is packed with pilot friendly features. The radio provides crisp and clear stereo communication, faster tuning, a user friendly programmable USB database, dual watch and Trig’s popular ‘Say Again’ feature.
Combining great quality and performance each radio is housed within a superbly engineered unit, slimline and light. At only 33mm high (1.3”) the radio saves valuable stack space, but retains innovative and practical features. Trig’s stack radios are designed for general and light-sport aviation, with features that both experienced and novice pilots really appreciate.
The TY96/TY97 is an 8.33 radio, the TY96A/TY97A is a 760 channel only version.
- Slimline – only 33mm high
- Bright, clear display / simple user interface
- Unique ‘Push Step’ for faster tuning
- Dual Watch – monitor two frequencies at the same time
- ETSO and TSO approved
- Stereo music / two place intercom
- ‘Say Again’ feature – allows playback of last transmission
- Emergency button
- Configurable airfield database – holds over 200 frequencies
- USB port on facia – upload frequency database (CSV file)
- Highly efficient – no cooling fans or external cooling required
- Ideal retro-fit for legacy radios – same height as an SL40
- Unbeatable quality – designed and manufactured in the U.K.
- Two year worldwide warranty
- 25khz spacing
EASY TO USE
The stack radio display is clear and bright, showing both primary and secondary frequencies along with ICAO or custom set airfield identifiers. A ‘Push Step’ knob allows the fastest change from 8.33 kHz to 25 kHz (TY96/TY97) or 25 kHz to 50 kHz (TY96A/TY97A)- so you can tune the radio quickly without compromising your look-out.
The Dual Watch feature allows two frequencies to be monitored at the same time – it’s like having two radios in one.
The user configurable database, allows over 200 frequencies and identifiers to be downloaded to the radio from a CSV file – using the USB stick (provided). There are no subscription fees and this provides a highly flexible way to customise the radio for every flight by every pilot – perfect for fleet or club aircraft. Create your database here.
SAY AGAIN
The radio has a ‘Say Again’ feature. A single button press replays the last radio transmission. This feature is ideal for student pilots, but every pilot can get distracted, so it avoids the embarrassment of asking air traffic to repeat a message. A one touch Emergency Button automatically sets 121.5 MHz, along with volume levels. This ensures a successful transmission in what can be a stressful situation.
INTERCOM
Each radio has a built in two place intercom with auxiliary inputs for stereo music and audio warnings. Each radio can also integrate with a GPS navigator (SL40 and GTR225 protocol) to automatically display frequencies as they are required along the flight route. Finally, an airfield database can be loaded via the handy USB port. This database can contain over 200 of your preferred frequencies and identifiers.
PRODUCT DESIGN
The radio’s low profile design requires no external cooling fans. The radios compact size and features make it a great choice for both forward and retro-fit installations. Each radio is designed to easily integrate with legacy radios, these include popular KY 196A, KY 197A and SL 40 models.
WHAT’S IN THE BOX
- All Trig products come with a two year warranty, starting from the day of installation
- Installation Manual and Operating Manual – contained on Trig USB
- Installation kit (frequency database sample file – contained on Trig USB)
- Tray
- EASA Form One
TMA44 – STANDARD PANEL
- Mono – audio inputs for phone / music
- Smooth fade feature
- Simple user interface – easy to use
- Dedicated buttons for ADF and DME functions
- Marker beacon receiver – with indicators
- Supports 2-4 seats
- Great value for fleet operators and flight schools
- Does NOT have any bluetooth (NO bluetooth on the 44, you need the 45)
Standard – 2-4 seats
THE GREAT VALUE PANEL THAT COVERS ALL THE BASES IFR/VFR
The TMA44 equips you for navigation and IFR flight, with switched inputs for; Nav 1, Nav 2, ADF, Aux and DME. An illuminated marker beacon for ILS approaches adds visual cues to marker audio tones. All switchgear has a positive feel, with adjustable panel illumination for a great user experience day or night.
The TMA44 has two additional unswitched inputs included for audio alerts, such as stall or undercarriage warnings. The option of playing music via two custom inputs is enhanced by the TMA44’s ‘smooth fade’ feature. This automatically adjusts music levels to ensure vital radio information is always clearly received.
