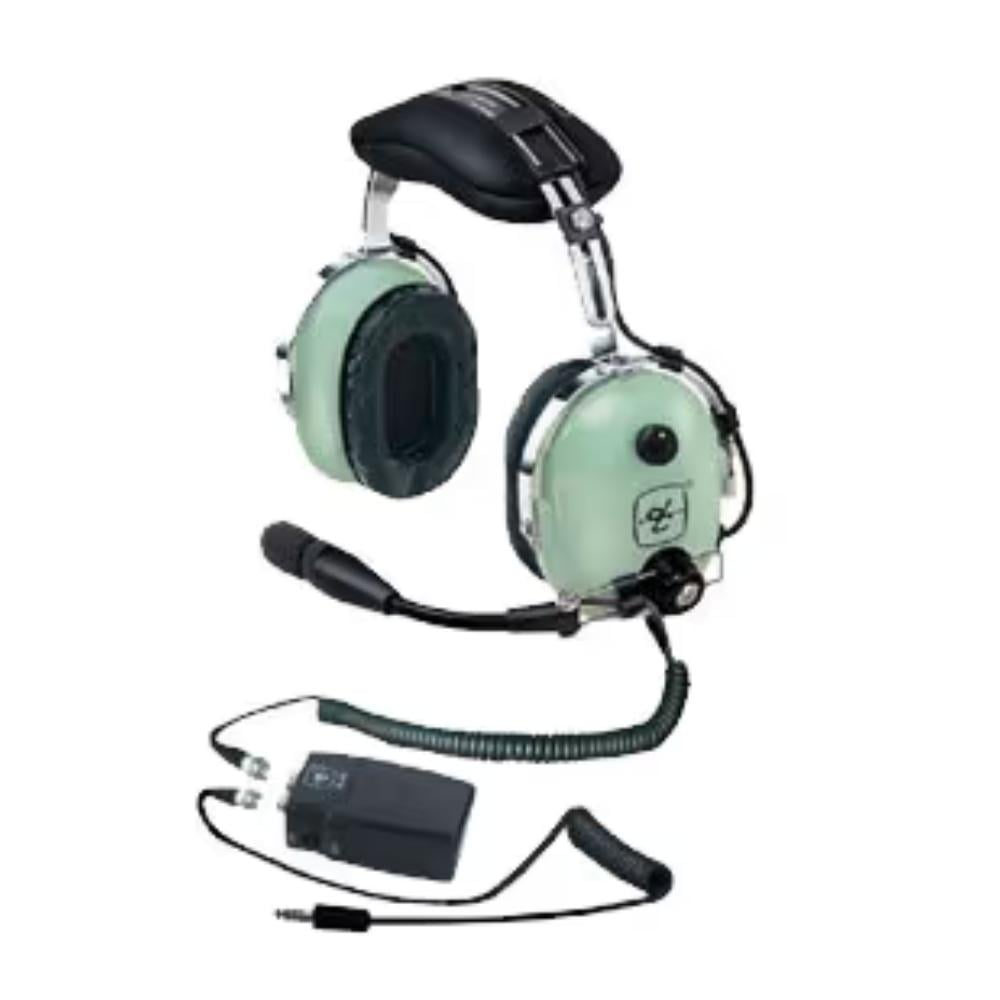

Model H10-13HXL Aviation Headset | U-174/U plugs, Helicopter
$894.25
The Model H10-13HXL aviation headset features electronic noice-cancellation (ENC) and a M-7A amplified electret microphone for offering pilots with crisp & clear communication. From a single nine-volt battery, this H10-13HXL operates up to 25 hours and has a pilot selectable auto-off function preserving battery life. Large, super-soft gel ear seal combined with a double-foam head pad offer comfort on long flights, while a flex/wire boom provides precise microphone place.
Features
- Battery power module provides up to 25 hour of operation from one 9-volt battery
- Expanded, super-soft, double-foam head pad offer comfort during long flights
- Larger and lighter undercut comfort gel ear seals
- Patented flex/wire boom provides precise microphone placement
- Pilot selectable auto-shut off
- M-7A noise-cancelling electret microphone for crisp & clear voice transmission
- Five-foot extended coiled cord
- Cord assembly connects to battery module then to panel intercom connector
- FAA TSO-C57a, TSO-C58a approved
Specifications
Weight:
18 oz
Ear Coupling:
around-the-ear
Hardware Material:
steel
Ear Dome Material:
ABS
Connectors:
U-174/U, earphone plug
U-174/U, mic plug
Connection Cable:
~5 ft coil cord (1.5 m)
Earphone Sensitivity:
90 dB SPL on flat plate coupler, re 1mW input @1KHz
Earphone Type:
Dynamic (ENC)
Ear Impedance:
150Ω, nominal (stereo)
300Ω, nominal (mono)
Ear Frequency Response:
100 Hz — 5,500 Hz
Microphone Principle:
M-7A amplified electret
Microphone Impedance:
50Ω ±20%
Microphone Sensitivity:
400mV ±6dB into 150Ω load @ 1kHz for 114 dB SPL input
Microphone Frequency Response:
300 Hz – 3,500 Hz per RTCA DO 214
Microphone DC Supply Voltage:
8V – 16V (not polarity sensitive)
Source Resistance:
470Ω
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 0.1 × 0.1 × 0.1 in |
| Brand | Faro |
