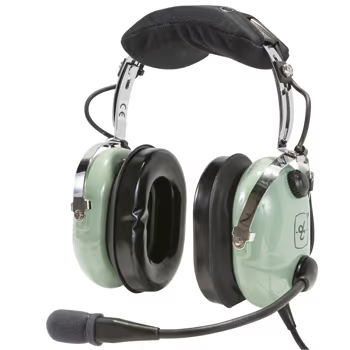

Model H10-20 Passive NR Aviation Headset | 24dB
$411.10
The H10-20 aviation headset offer maximum performance and reliability. It is designed with comfort in mind with features such as a super-soft head pad, adjustable headband, and comfortable gel ear seals. Adjustable flex boom assembly, M-7A microphone, and a 24 dB passive noise reduction contribute to excellent voice communications.
This H10-20 aviation headset is for standard fixed-wing aircraft with a straight cord and dual plugs.
Features
- Super-soft head pad
- Larger & lighter undercut comfortable gel ear seals
- Adjustable flex boom assembly for perfect microphone placement
- M-7A advanced noise cancelling microphone
- Low-profile volume control knob with detent settings
- Certified 24 dB noise reduction rating
- Exceeds RTCA/DO-214 standards
- FAA TSO C57b, TSO C58a approved
Specifications
Weight:
19 oz (562 g), without cable
Ear Coupling:
around the ear
Hardware Material:
steel
Connector Plugs:
PJ-055 (0.25 in) earphone
PJ-068 (0.206 in) mic plug
Connection Cable:
~5 ft, straight (1.5 m)
Dome Material:
ABS
Earphone Sensitivity:
90 dB SPL on flat plate coupler, re 1mW input @ 1kHz
Earphone Principle:
dynamic
Earphone Frequency Response:
200 Hz— 5,500 Hz
Microphone Principle:
M-7A amplified electret
Microphone Sensitivity:
400 mV ±6 dB in to 150Ω load @ 1kHz for 114 dB SPL input
Microphone Frequency Response:
300 Hz — 3.5 KHz per RTCA DO 214
Mic DC Supply Voltage:
8V — 16V, not polarity sensitive
Source Resistance:
470Ω
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 0.1 × 0.1 × 0.1 in |
| Brand | David Clark Company |
