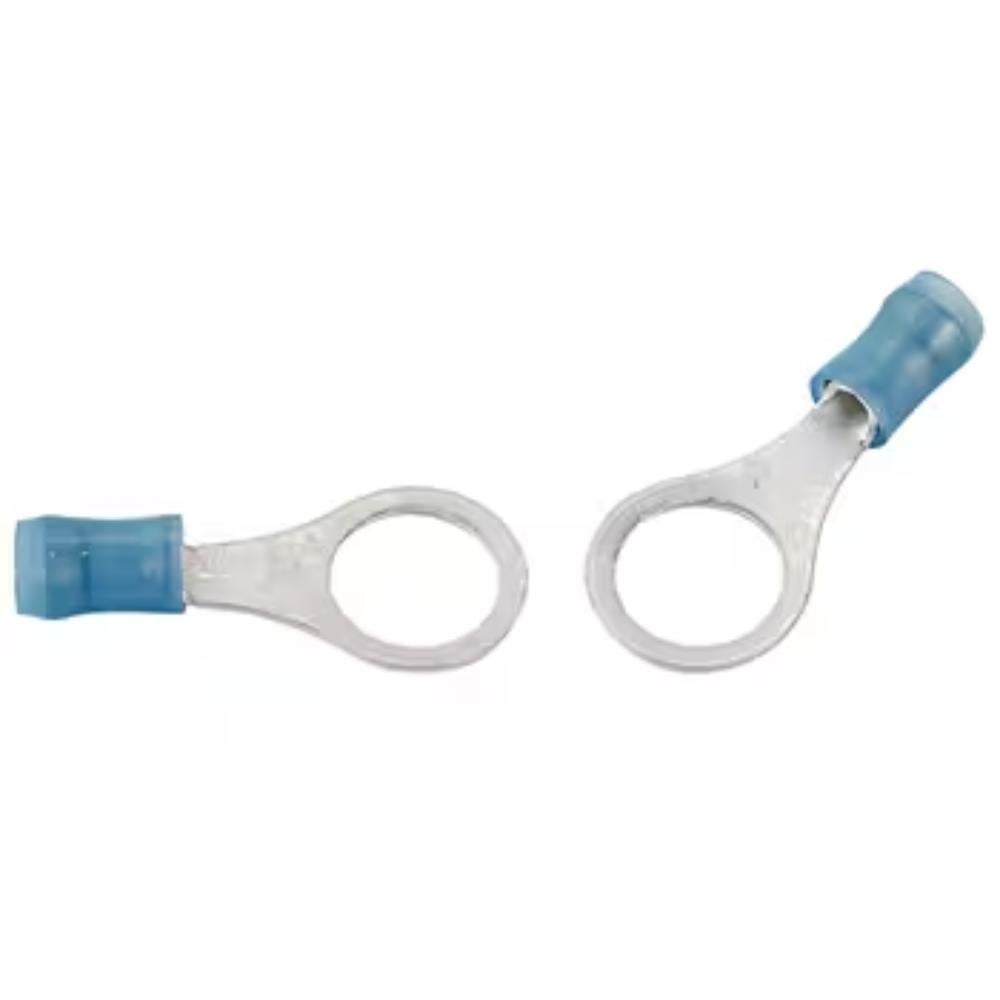

PIDG 6.35 mm Nylon Ring Terminal | 16 – 14 AWG, Blue
$0.39
A tariff fee of $0.0500 EA may apply.
PIDG terminals are designed for uniform reliability in the harshest circuit environments, especially where high vibration and movement become factors. These terminals consist of of a nylon or PVC insulated body, plus a metal sleeve which clamps to the wire adding support. The design of the wire barrel resists vibration while allowing the wire to bend in any direction without damaging the insulation or conductor.
This ring terminal has blue insulation, a 6.35 mm stud size, and used on 16 – 14 AWG wire.
Features
- Blue nylon insulation material
- Tin-plated copper conductor
- Exceeds requirements of SAE AS7928, Type II, Class 1 and 2
Specifications
Color:
blue
Contact Material:
tin-plated copper
Insulation:
nylon
Mounting Style:
screw
Product Type:
ring terminal
Stub / Tab Size:
6.35 mm
Voltage Rating:
300 VAC
Wire Gauge:
16 – 14 AWG
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand | TE Connectivity |
