New

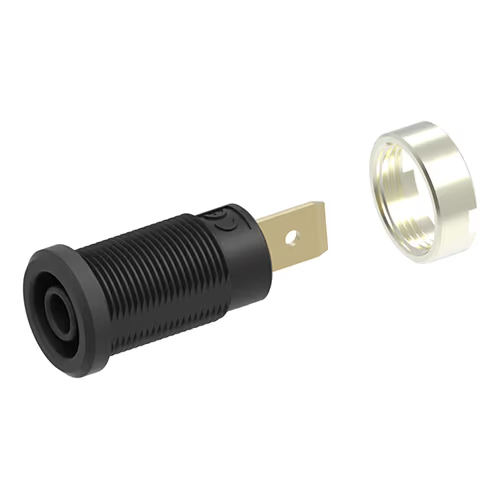

Quick Connect Panel Mount Banana Jack | 4 mm, Black
$2.36
18
Items sold in last 13 days
3
People watching this product now!
Description
This 4 mm Sheathed Banana Jack accepts sheathed (shrouded) banana plugs, meets the latest international safety standard IEC 61010-031 to 1,000 V CAT III, and has a quick connect termination. The round panel nut allows for compact placement and assembly.
Features
- 4 mm safety jack with 0.25 in Faston® terminal
- Recommended assembly tool: Model CT2246A
Specifications
Dimensions:
1.33 x 0.57 in
Mounting Hole Diameter:
0.472 ± 0.004 in
Max Panel Thickness:
0.40 in (10 mm)
Body Threads:
M12 x 0.75 mm
Max Body Thread Torque:
1.7 ft-lb (2.3 Nm) @ 20ºC
Body Material:
Polyamide (Nylon)
Jack and Nut Material:
Nickel Plated Brass
Voltage Rating:
1000 V CAT III, 600 V CAT IV P2 (IEC61010-031)
Max Current:
36 A
Resistance:
< 5 mΩ
Temperature Range:
-20ºC to 80ºC
Color:
Black
Additional information
| Brand | Cal Test Electronics |
|---|
