RAM® Ball Adapter with AMPS Plate – C Size
$16.49

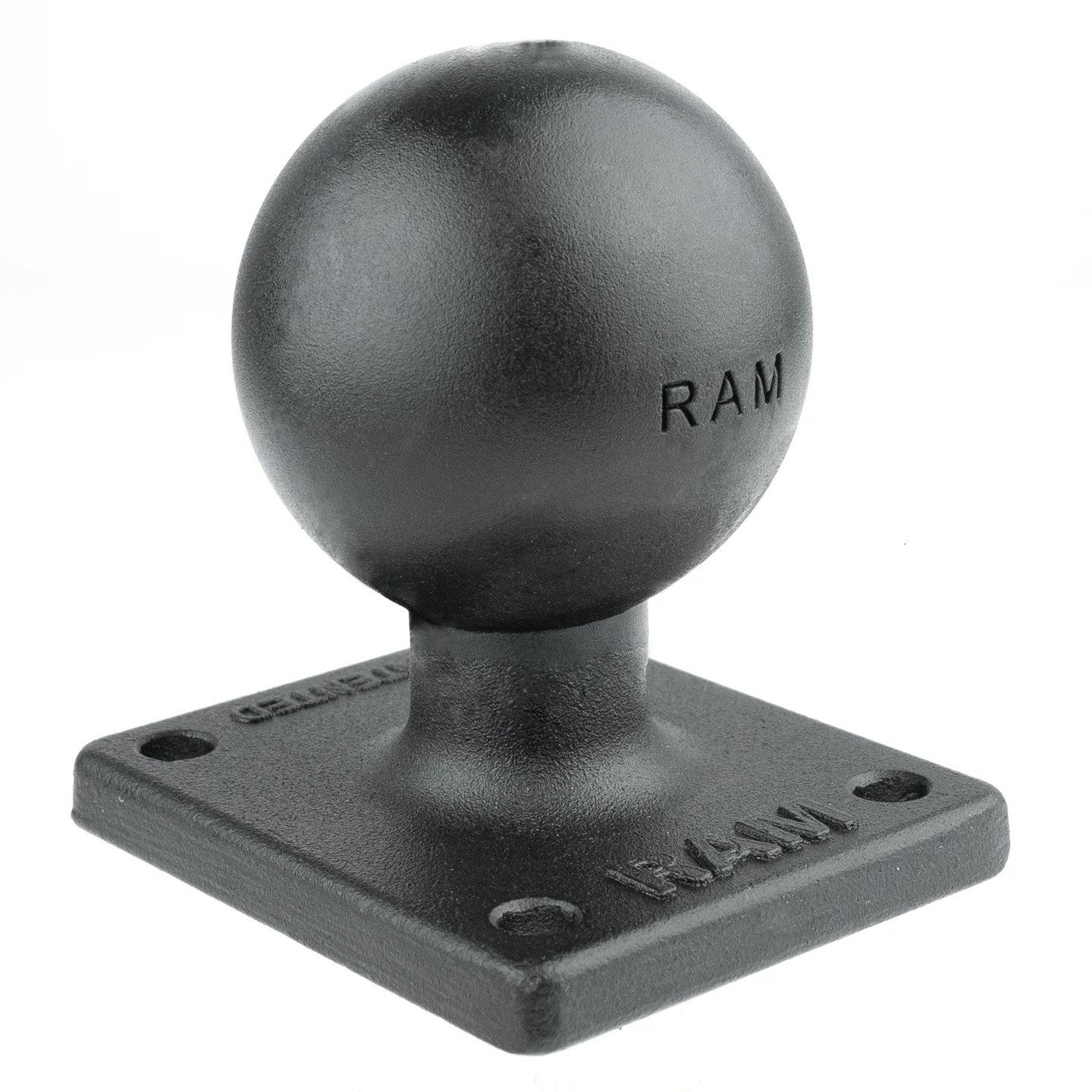

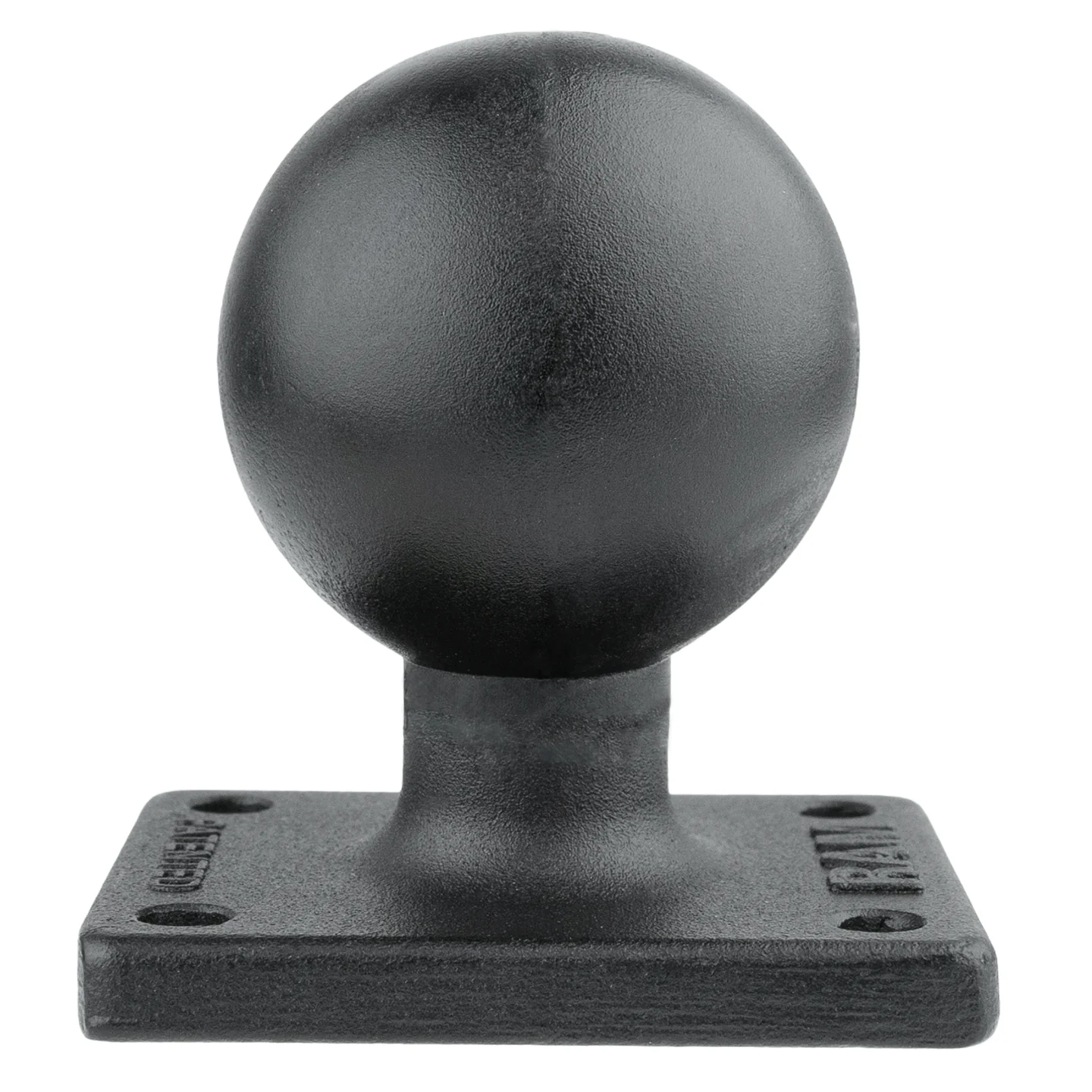

The RAM-347U consists of a 1.5″ diameter rubber ball connected at right angles to a 2″ x 1.7″ rectangle base. The base has four pre-drilled holes at each corner, making the universal AMPS hole pattern.
Features
- Rectangular plate features the AMPS hole pattern for connection to a wide variety of devices
- Included C size 1.5″ RAM® rubber ball allows for connection to any C size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
- Backed by a lifetime warranty

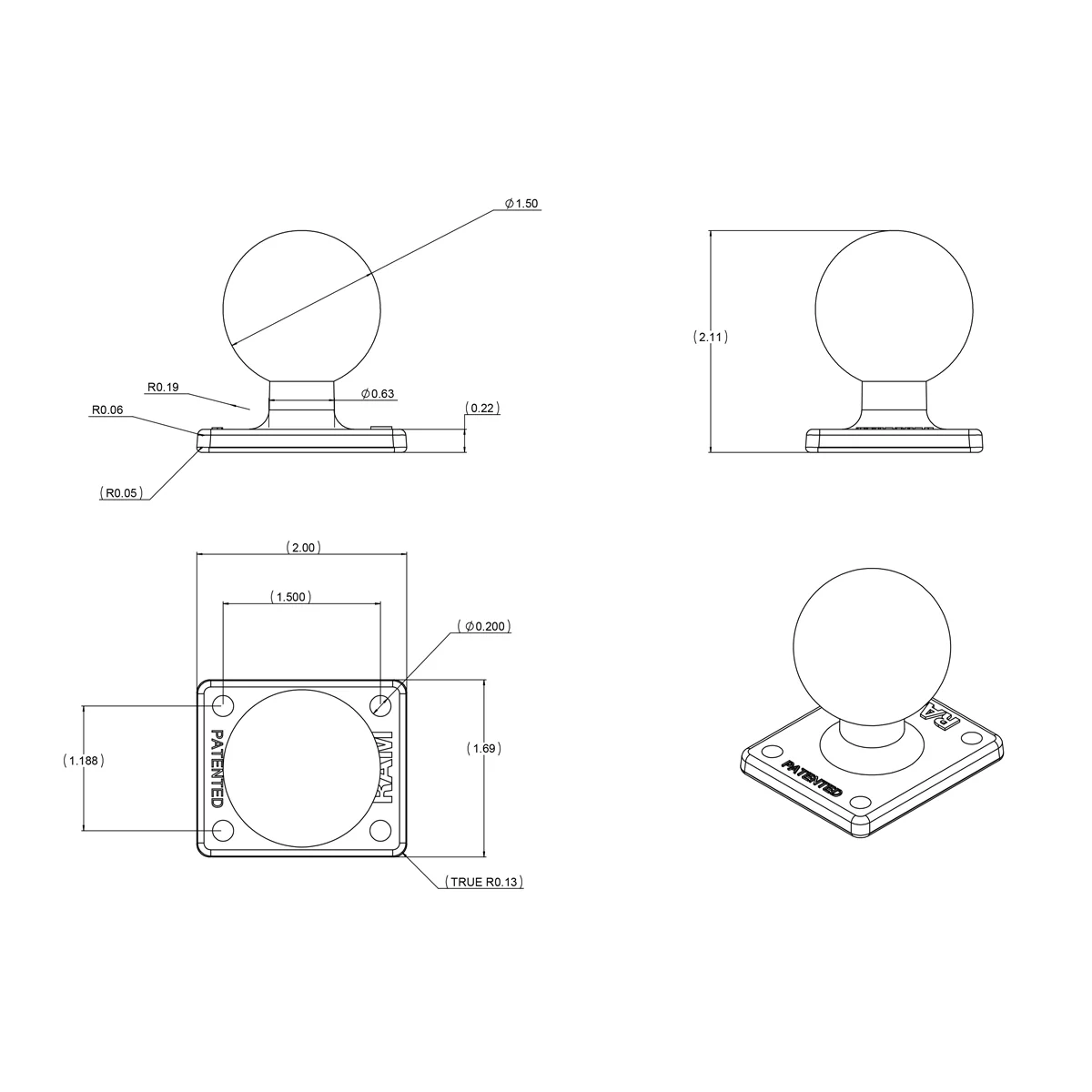

Specifications
Hole pattern:
4-Hole AMPS: 1.181″ x 1.496″
Plate size:
1.69″ x 2″
Ball size:
C Size (1.5″)
Weight capacity:
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
Materials:
Marine-grade aluminum
Packaging type:
Poly Bag
Weight:
0.21 lb
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand | RAM Mounts |
