RAM® Double Ball Mount with Universal Hardware for Garmin GPSMAP + More
$44.99
The RAM-B-101-G1U consists of a medium length B-size arm with two 2.5″ diameter round plate with universal AMPS hole pattern and the hardware needed to attach a Garmin StreetPilot III or a Garming GPSMAP 172-250.
Specifications

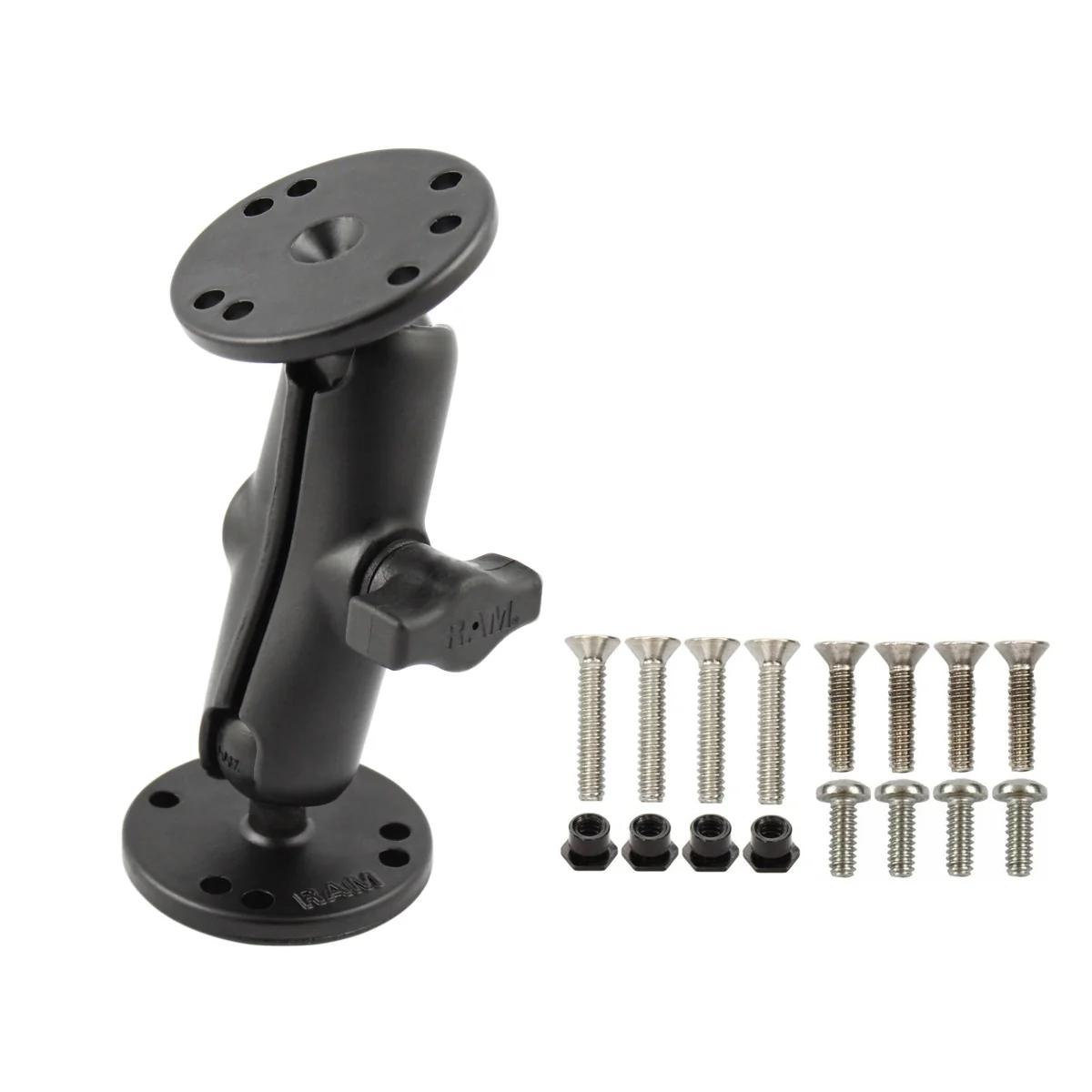

Hardware included:
(4) #6-32 x 5/8″ Machine Screws
(4) #6-32 x 7/8″ Machine Screws
(4) #6-32 x 3/8″ Machine Screws
(4) #6-32 Nut Inserts

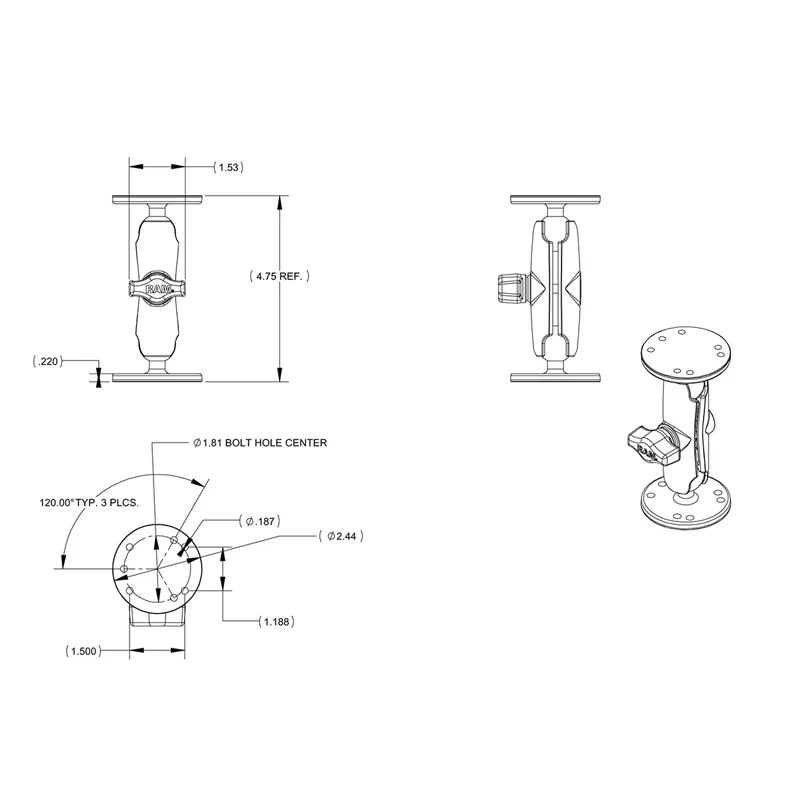

Product dimensions:
Overall Height: 5″
Socket to socket length:
3″
Hole pattern:
4-Hole AMPS: 1.181″ x 1.496″
3-Hole 120-Degree: 1.812″ Diameter
Ball size:
B Size (1″)
Weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
Materials:
Marine-grade aluminum
Packaging type:
Poly Bag
Weight:
0.58 lb
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand | RAM Mounts |
