RAM® Double Ball Strap Hose Clamp Mount with Round Plate – Medium
$51.49

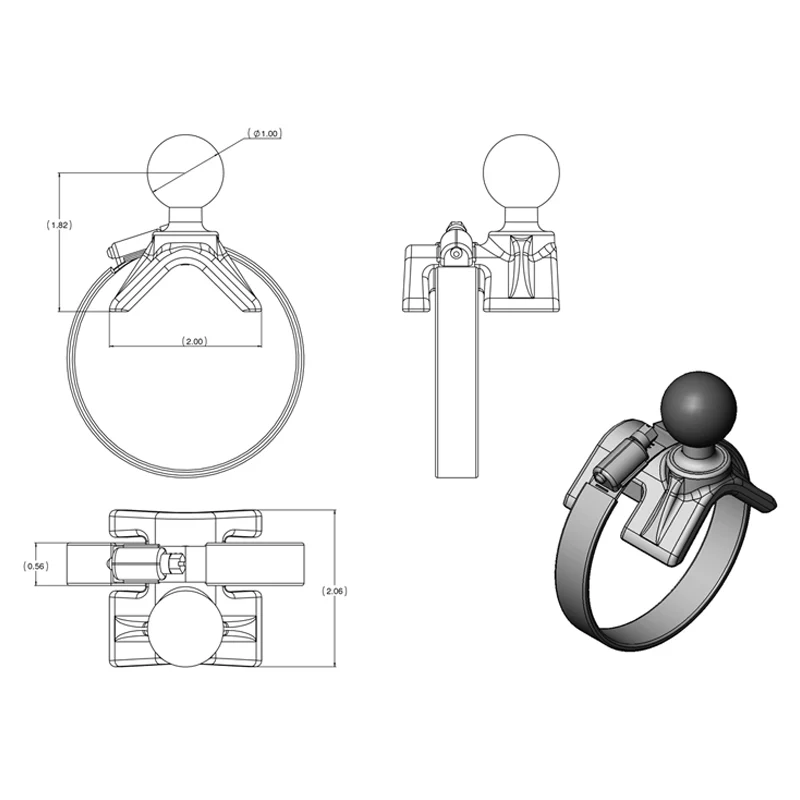

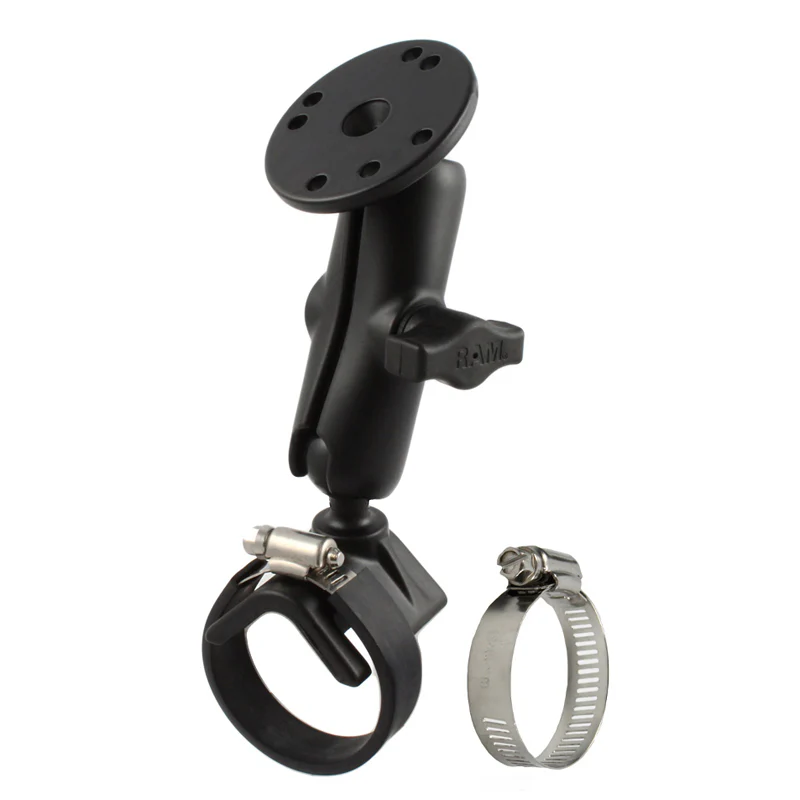

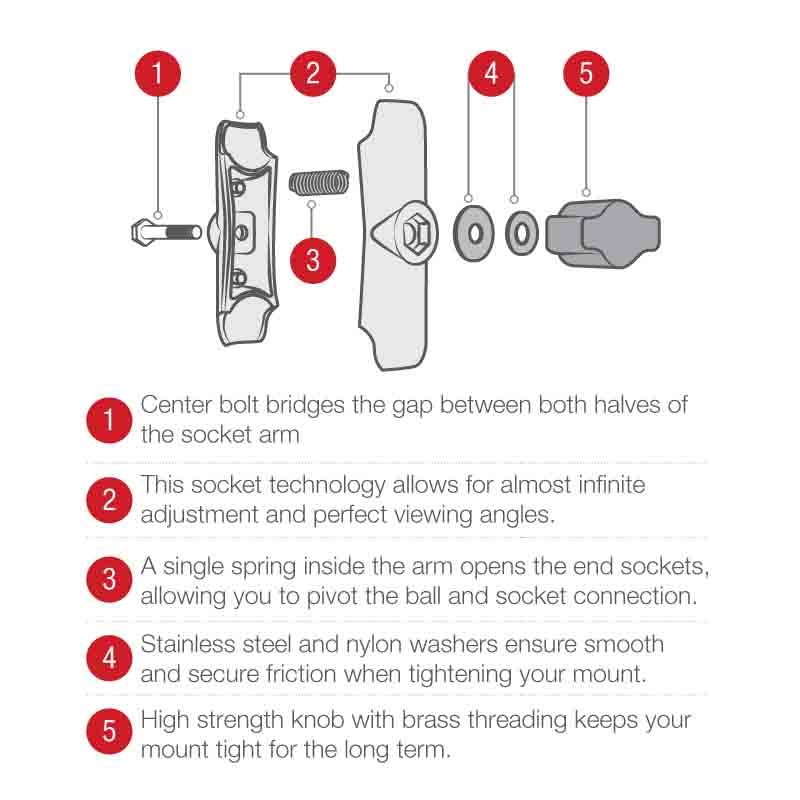

The RAM-B-108U consists of a 1″ diameter rubber ball connected at a right angle to a v-shaped base, double socket arm and 2.5″ base that contains the universal AMPs hole pattern. The mount is designed with a RAM 1″ diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.
Specifications
Hardware included:
(1) #20 Worm Drive Strap Clamp
(1) #28 Worm Drive Strap Clamp
(1) 6″ Rubber Strip
Clamp range:
1″ – 2.1″ diameter
Socket to socket length:
3″
Hole pattern:
4-Hole AMPS: 1.181″ x 1.496″
3-Hole 120-Degree: 1.812″ Diameter
Ball size:
B Size (1″)
Weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
Materials:
Marine-grade aluminum
Packaging type:
Poly Bag
Weight:
0.63 lb
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand | RAM Mounts |
