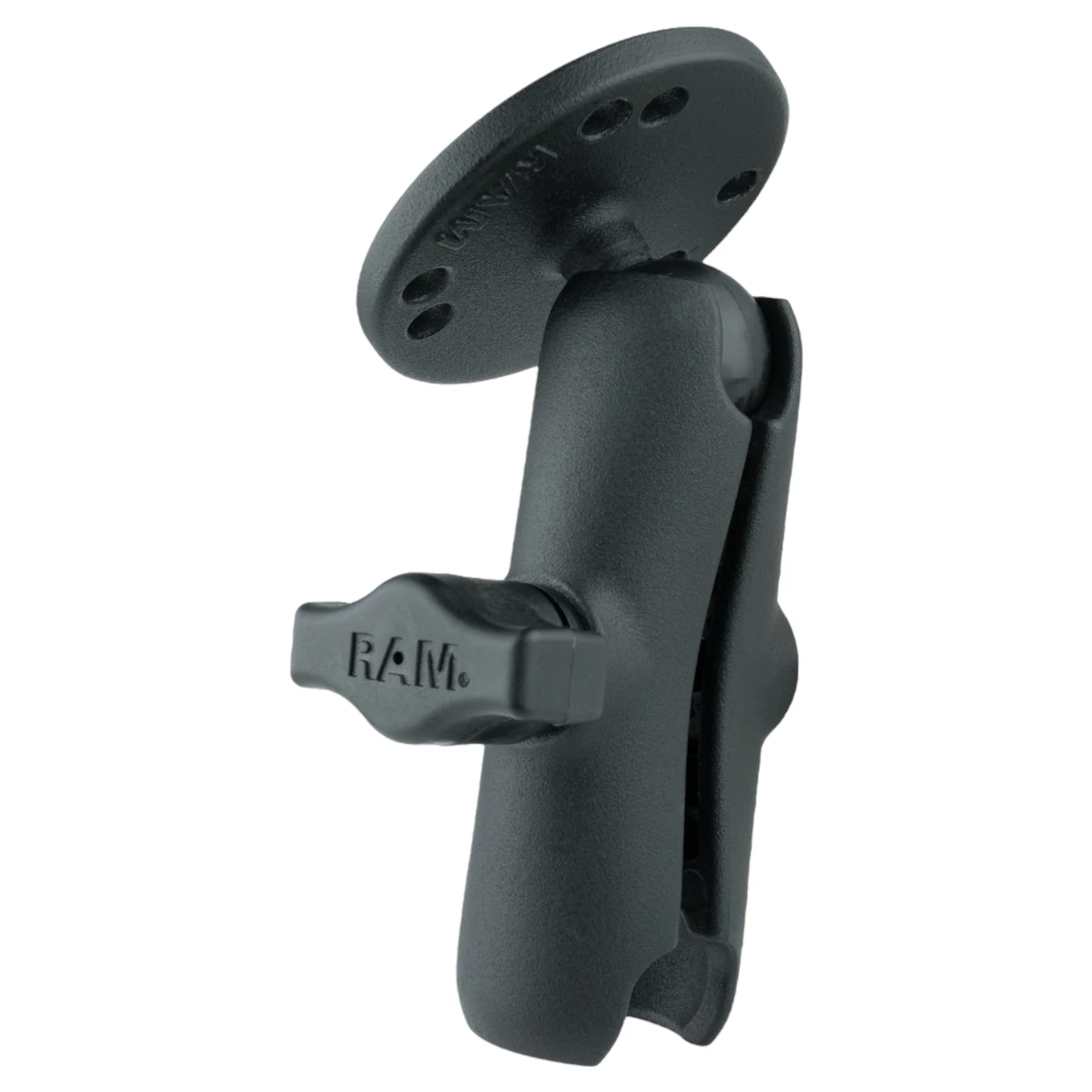

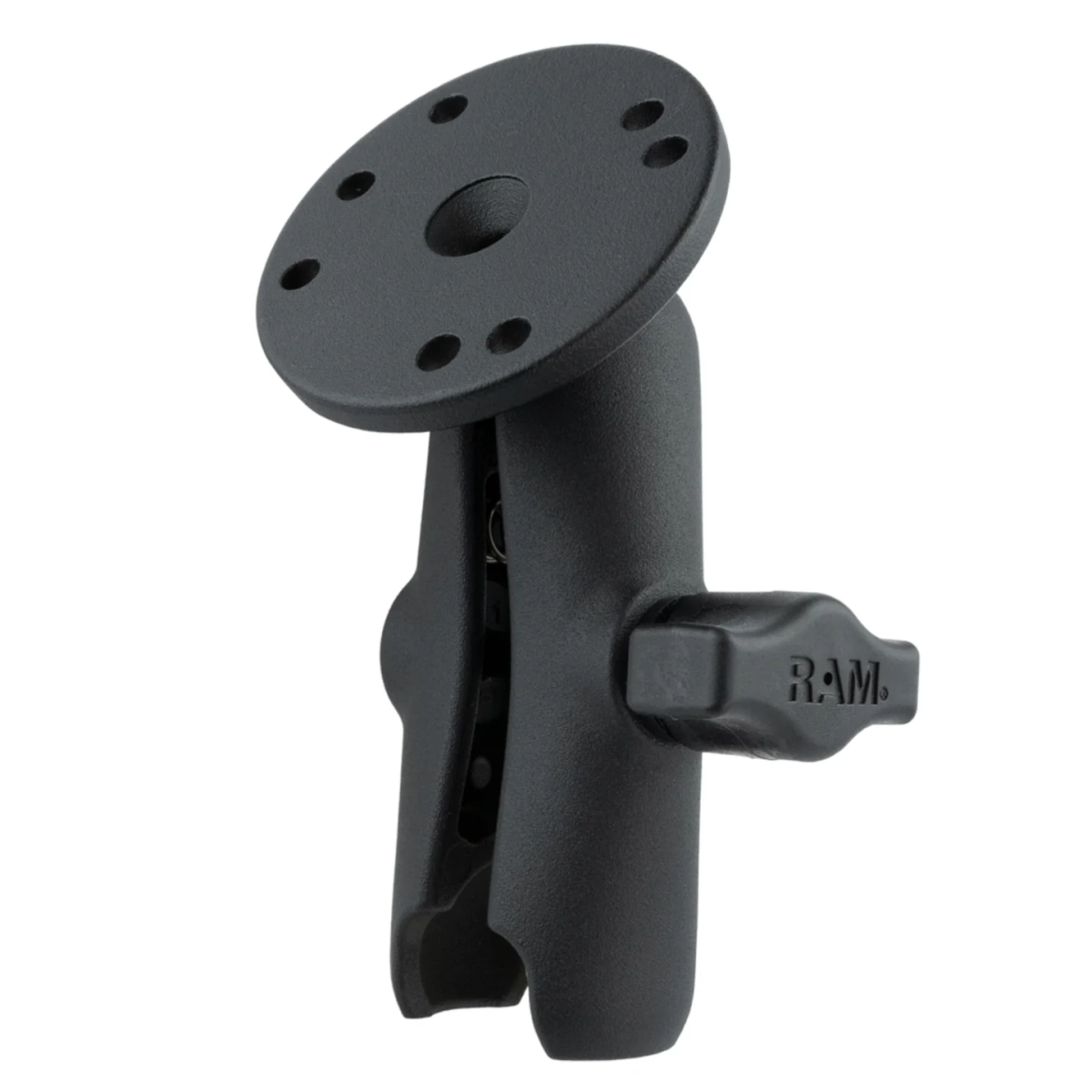

RAM® Double Socket Arm with Round Plate – B Size Medium
$28.49

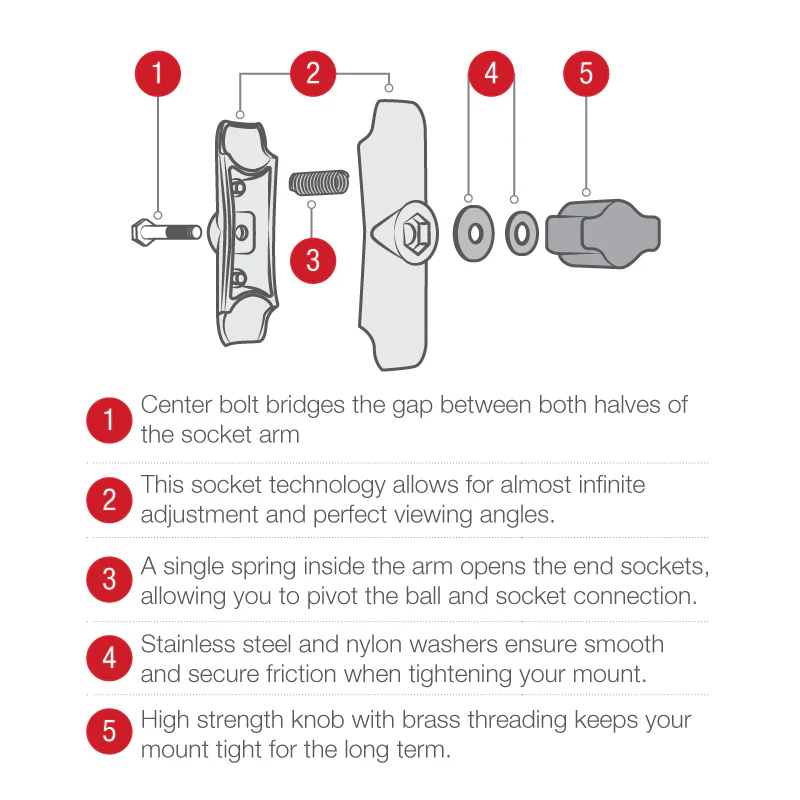

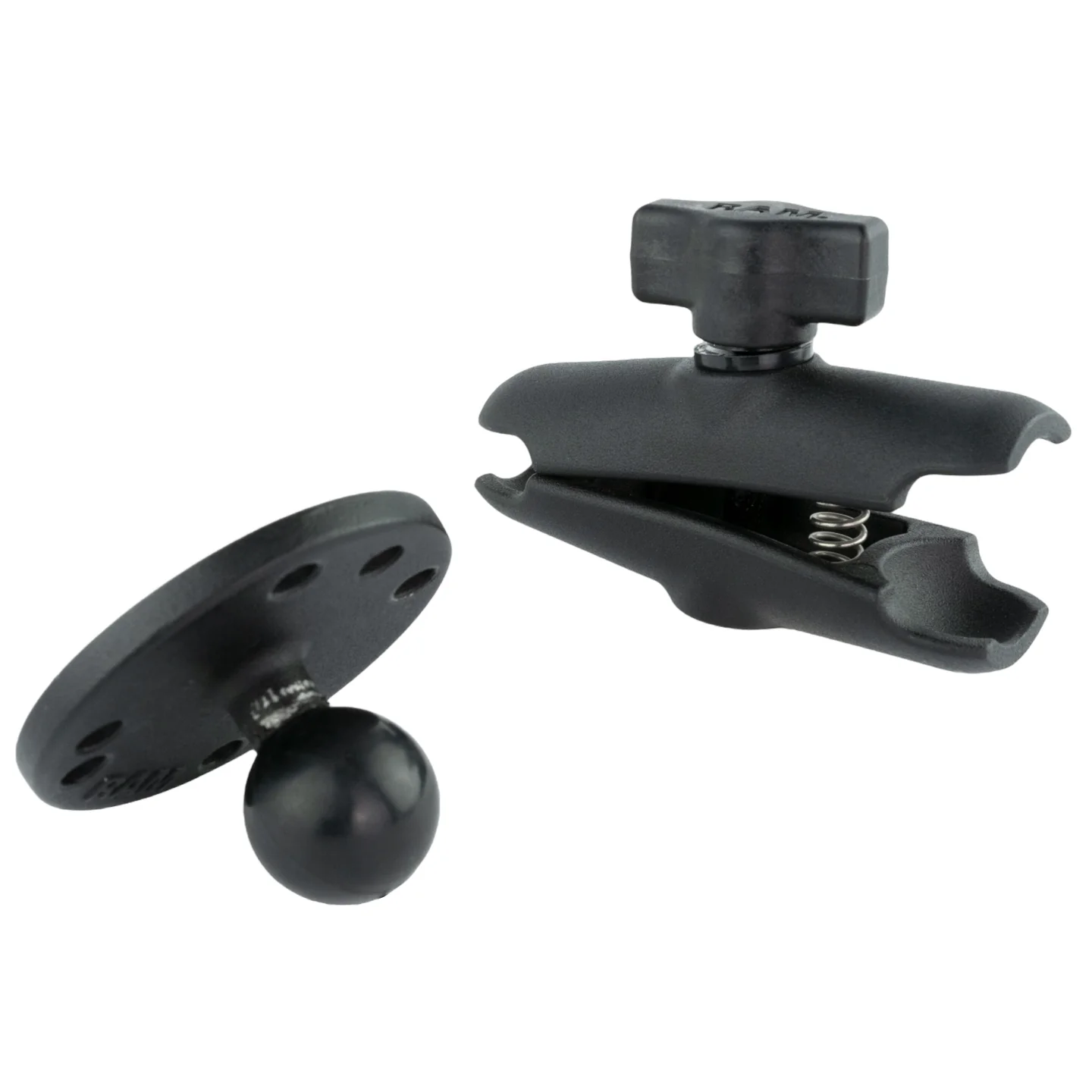

The RAM-B-103U consists of a 2.5″ round base and double socket arm that will accept 1″ ball bases. The round base contains pre-drilled holes, including the universal AMPS hole pattern. Designed into the mount is a 1″ diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm; this with a twist of the arm knob allows for you to maneuver the mount to your optimum viewing position.
Features
- Round plate features industry-standard AMPS hole pattern; connects to a variety of RAM® device holders
- Includes B size medium length RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
Specifications
Socket to socket length:
3″
Hole pattern:
4-Hole AMPS: 1.181″ x 1.496″
3-Hole 120-Degree: 1.812″ Diameter
Ball size:
B Size (1″)
Weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
Materials:
Marine-grade aluminum
Packaging type:
Poly Bag
Weight:
0.44 lb
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand | RAM Mounts |
