RAM® Double U-Bolt Ball Base for .75″ – 1″ Rails
$35.49

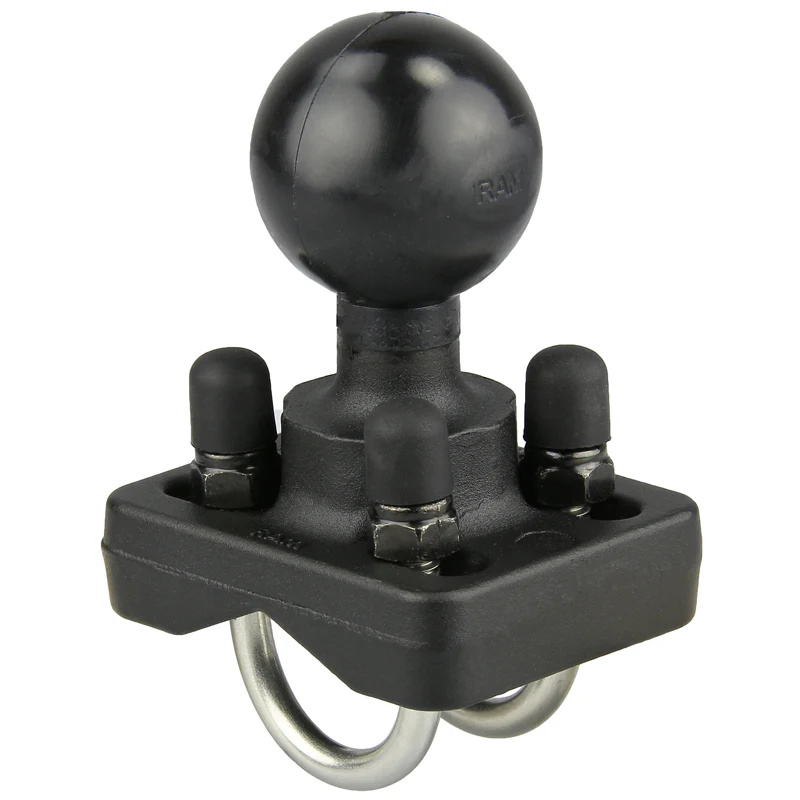

The RAM-235-2U consists of a double u-bolt base with 1.5″ diameter ball and two zinc-coated u-bolts. The double u-bolt base will accommodate rails from .75″ to 1″ in diameter.
Features
- Zinc-coated double U-bolt base accommodates rails from .75″ to 1″ in diameter
- Included C size 1.5″ RAM® rubber ball allows for connection to any C size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
Specifications
Hardware included:
(2) 1/4″-20 U-Bolts for .75″ – 1″ Rails
(4) 1/4″-20 Nylock Nuts
(4) Rubber Caps
Clamp range:
.75″ – 1″ diameter
Ball size:
C Size (1.5″)
Weight capacity:
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
Materials:
Marine-grade aluminum
Packaging type:
Poly Bag
Weight:
0.52 lb
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand | RAM Mounts |
