RAM® Horizontal 6″ Swing Arm Mount for Fishfinders & Plotters, Single Arm
$88.49

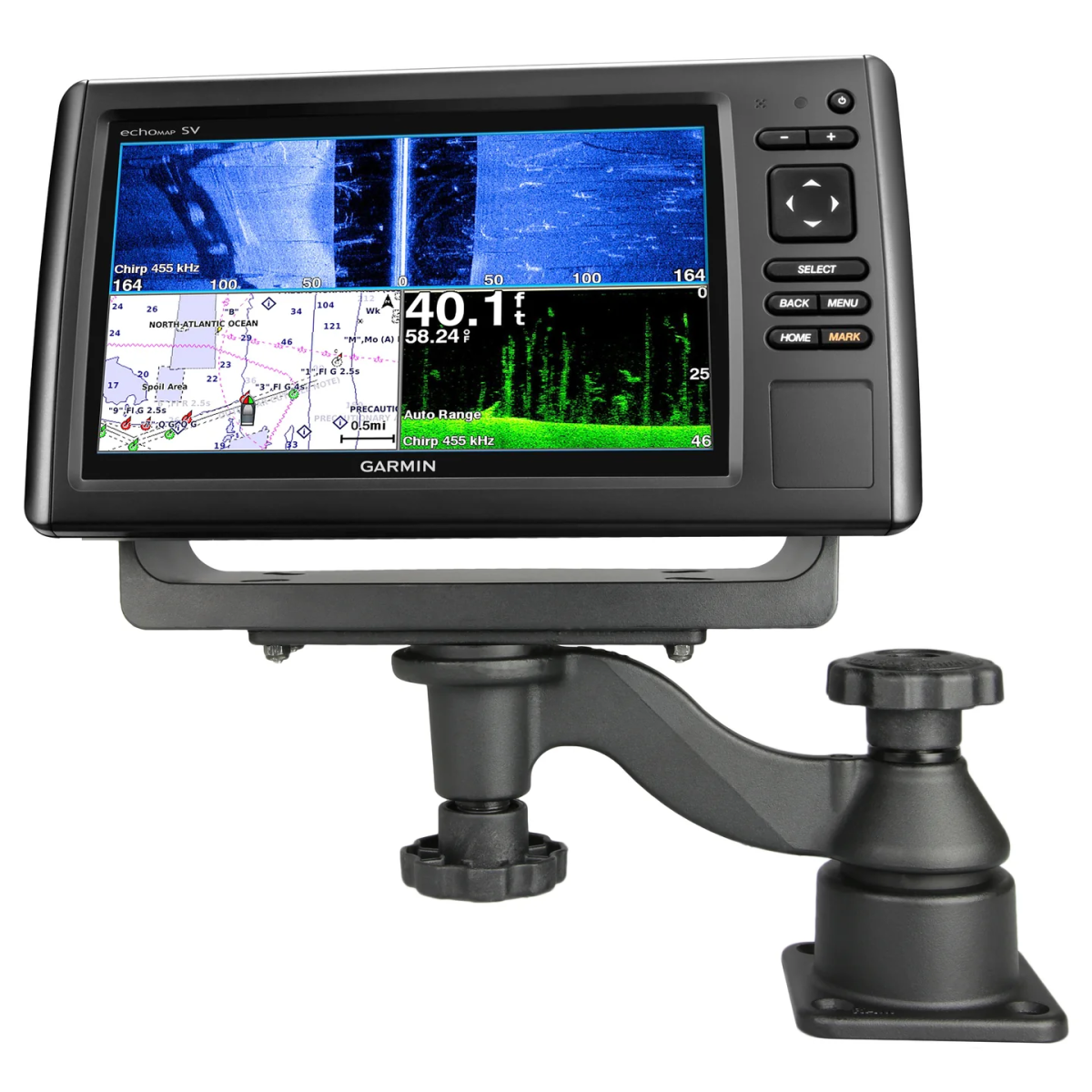

The RAM-109HU consists of a 6″ long bent swing arm mounted on a horizontal surface base. At the device mounting end is a rectangular 6.25″ x 2″ plate. There are two pivoting points on the mount: one at the base of the swing arm and one at the center of the rectangular plate. Each pivoting point allows a complete 360-degree rotation.
Features
- Universal drill-down fishfinder mounting solution features 6″ swing arm for ideal device placement
- Two pivot points allow for complete 360-degree rotation
- Made of powder-coated steel and high-strength composite
- Backed by a lifetime warranty
Specifications
Product dimensions:
Overall Height: 5.41″
Total Swing Arm Length: 6″
Hole pattern:
Top Plate: See Drawing
Bottom Plate: 2.5″ x 2.5″
Plate size:
Top Plate: 6.25″ x 2″
Bottom Plate: 3.47″ x 3.47″
Weight capacity:
8 lbs
Materials:
Marine-grade aluminum
Packaging type:
Poly Bag
Weight:
2.21 lb
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand | RAM Mounts |
