RAM® Tab-Tite™ Yoke Clamp Mount for 9″-10″ Tablets
$96.99

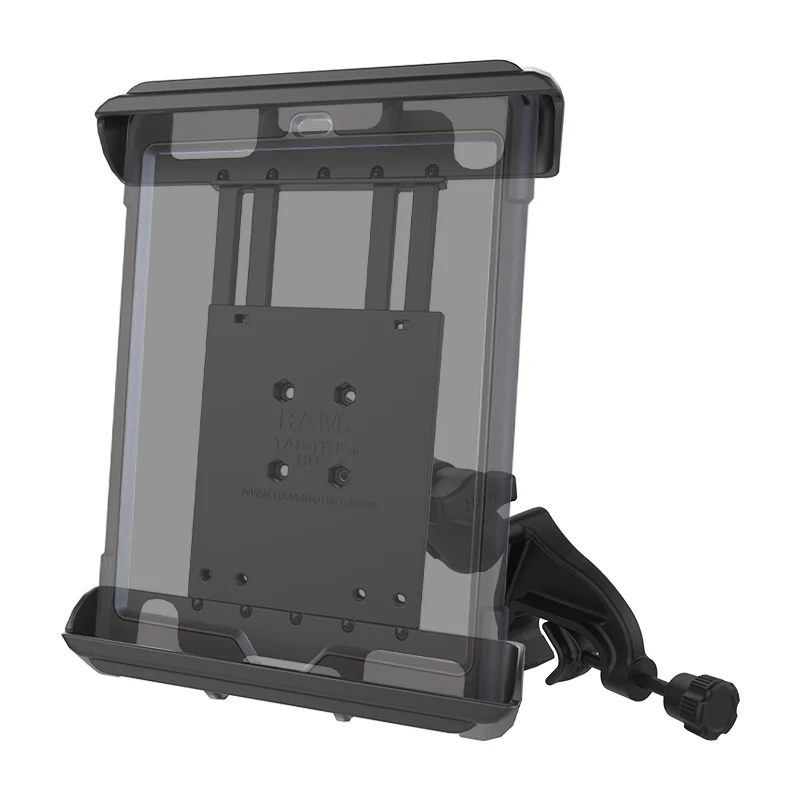

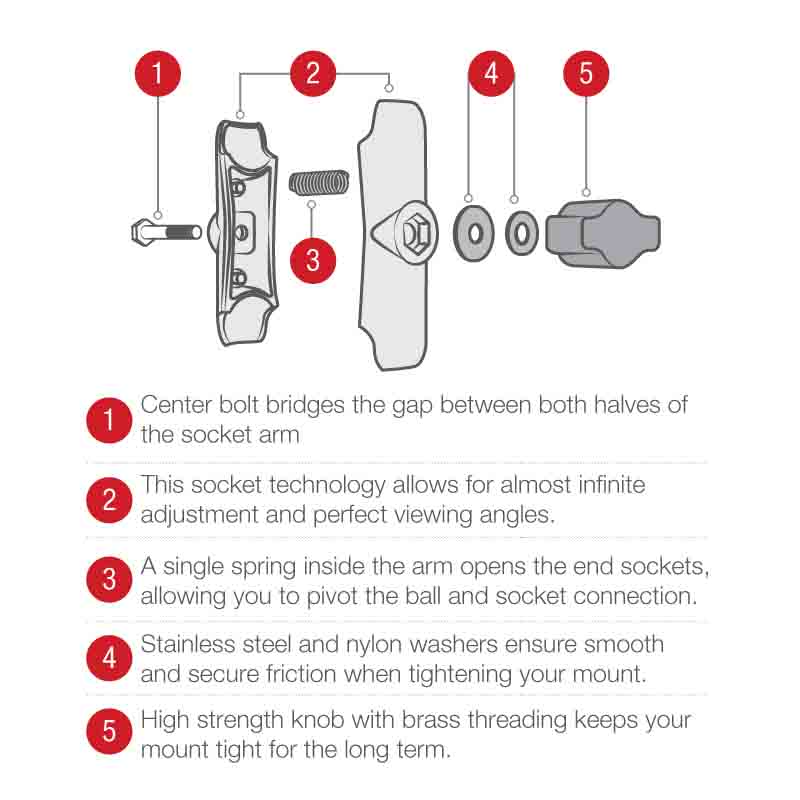

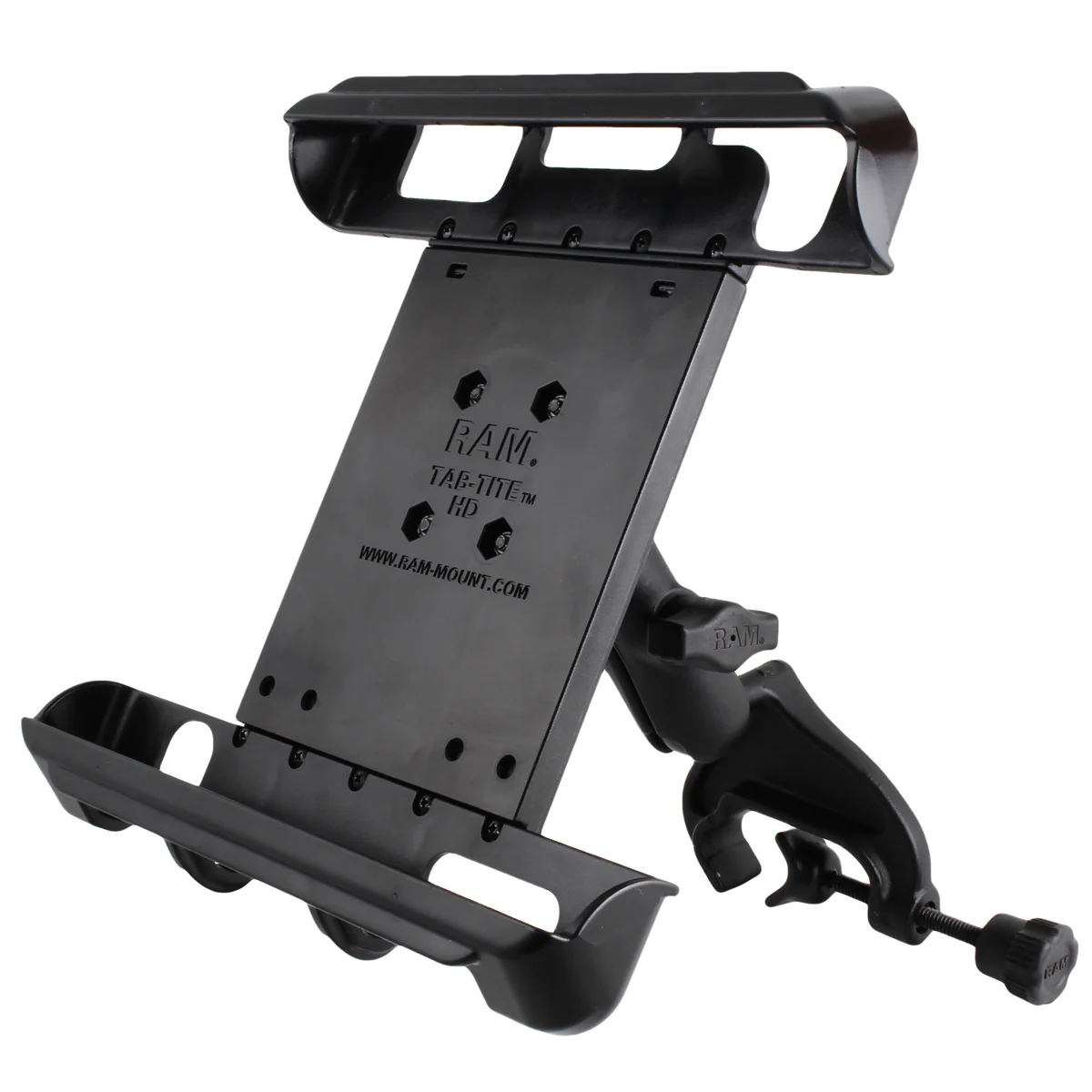

The RAM-B-121-TAB8U consists of a yoke clamp base, double socket arm, round base adapter and Tab-Tite™ universal clamping cradle. The mount is designed with a RAM 1″ diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The included Tab-Tite™ cradle includes a spring loaded back plate and custom support cups for 10″ screen tablets WITH heavy duty cases. The spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. The Tab-Tite™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.
Specifications
Hardware included:
Assembly Hardware
Holder dimensions:
Height Range: 9″ – 11.5″
Width Range: 6.38″ – 8.31″
Depth Range: .13″ – 1.12″
Clamp range:
.625″ – 1.25″
Socket to socket length:
3″
Ball size:
B Size (1″)
Weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
Materials:
Marine-grade aluminum
High strength composite
Packaging type:
Poly Bag
Weight:
1.13 lb
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand | RAM Mounts |
