RAM® Twist-Lock™ Suction Cup Double Ball Mount with Round Plate – Medium
$50.99
The RAM-B-166-202U consists of a 3.3″ suction cup twist lock base, STANDARD length double socket arm and round base adapter that contains the universal AMPs hole pattern. The mount is designed with a RAM 1″ diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks. The hole pattern found on the round base adapter will connect to most RAM cradles and 3rd party cradles.
Features
- RAM® Twist-Lock™ suction cup base is ideal for vehicle windshields and other nonporous surfaces
- Includes B size medium length RAM® double socket arm and 2.5″ round base with B size 1″ rubber ball; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty*
Specifications
Hardware included:
Assembly Hardware

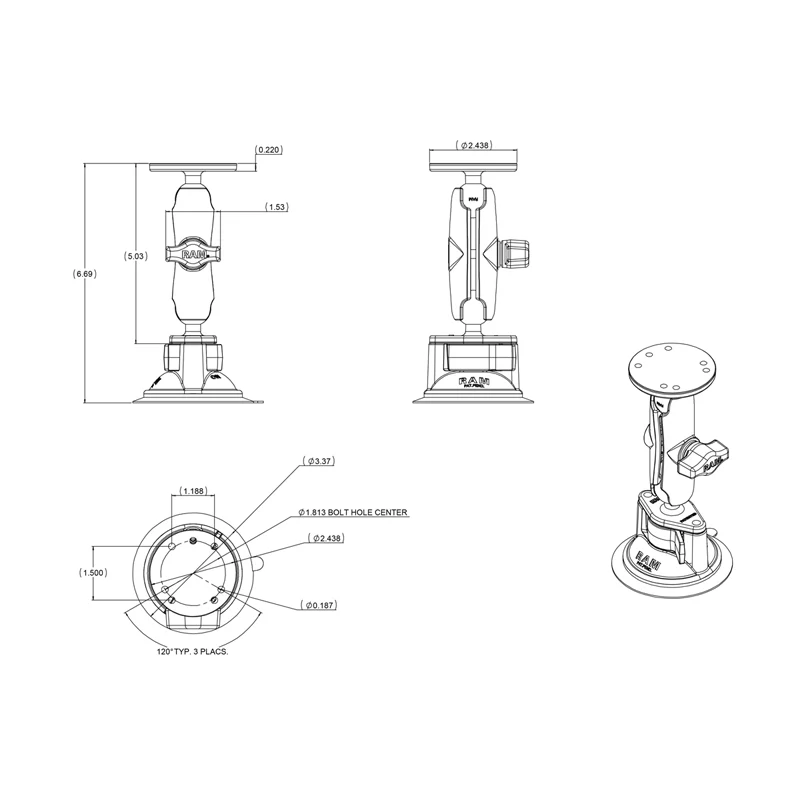

Product dimensions:
Overall Height: 6.69″
Suction size:
3.3″ Diameter
Socket to socket length:
3″
Hole pattern:
4-Hole AMPS: 1.181″ x 1.496″
3-Hole 120-Degree: 1.812″ Diameter
Plate size:
2.5″ Diameter
Ball size:
B Size (1″)
Weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
Materials:
Marine-grade aluminum
High strength composite
Packaging type:
Poly Bag
Weight:
0.7 lb
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand | RAM Mounts |
