RAM® X-Grip® with Twist-Lock™ Pivot Suction for 9″-11″ Tablets – Medium
$207.99

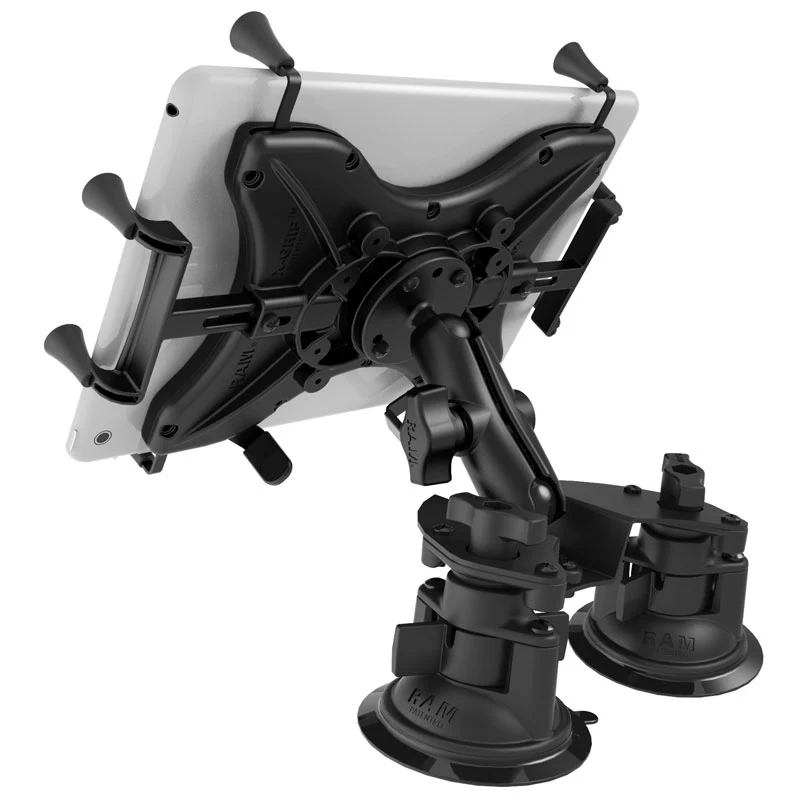

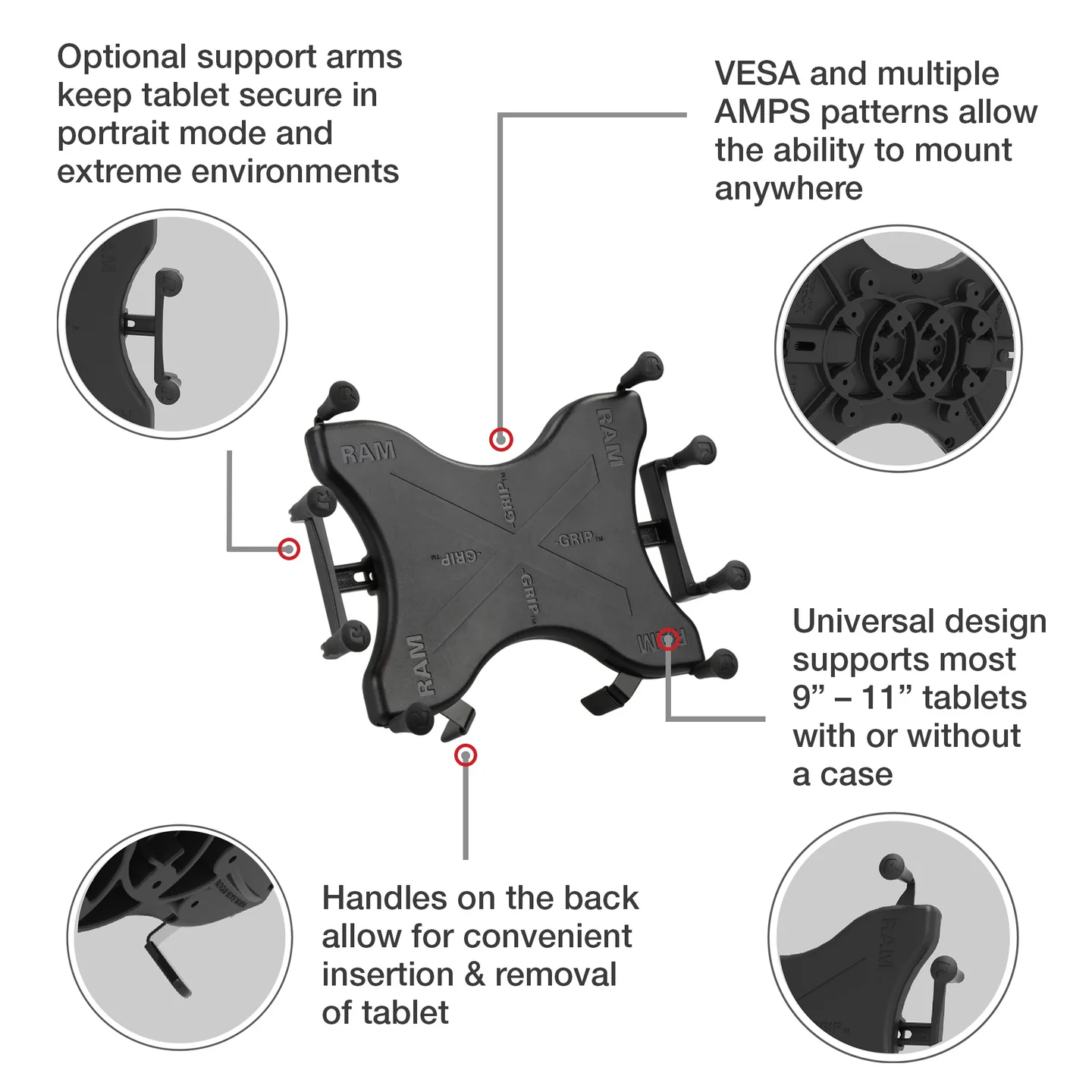

The RAM-B-189-PIV1-UN9U consists of a dual articulating 3.3″ twist lock suction cup base, double socket arm, and universal X-Grip® cradle for 9″-11″ Tablets. The dual articulating suction cup base is an amazing innovation in suction cup mounting. With the ability to independently articulate each suction cup, this mounting base can be used in a variety of applications such as curved windows and surfaces. The X-Grip® cradle is compatible with devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
Specifications
Hardware included:
Assembly Hardware

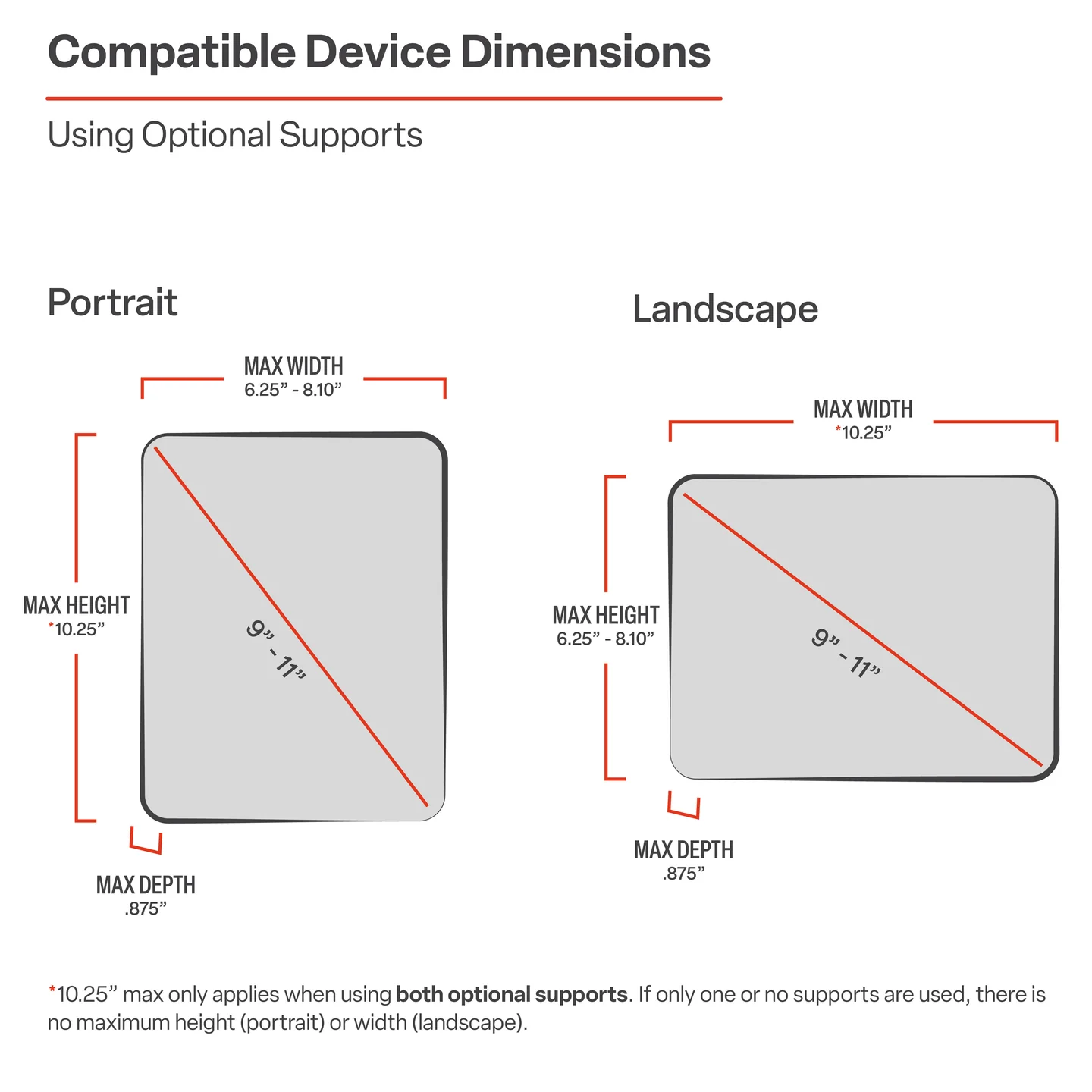

Holder dimensions:

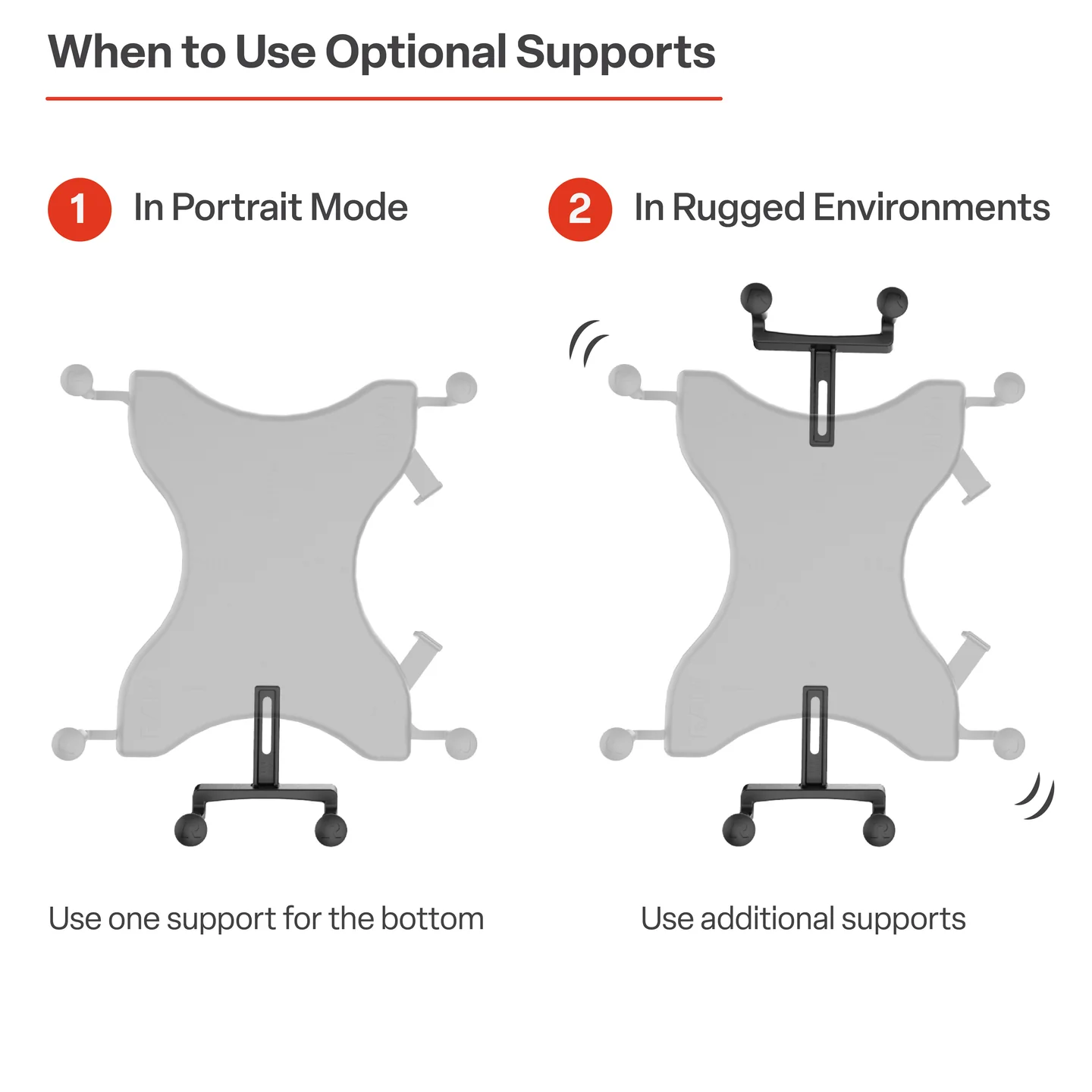

Max Height: 10.25″ (using optional supports)
Width Range: 6.25″ – 8.1″
Max Depth: .875″
Suction size:
(2) 3.3″ Diameter Bases, Total Width 7.95″
Socket to socket length:
3″
Ball size:
B Size (1″)
Weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
Materials:
Powder coated steel
Marine-grade aluminum
High strength composite
Packaging type:
Poly Bag
Weight:
1.9 lb
Additional Information:
*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty.
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand | RAM Mounts |
