Description

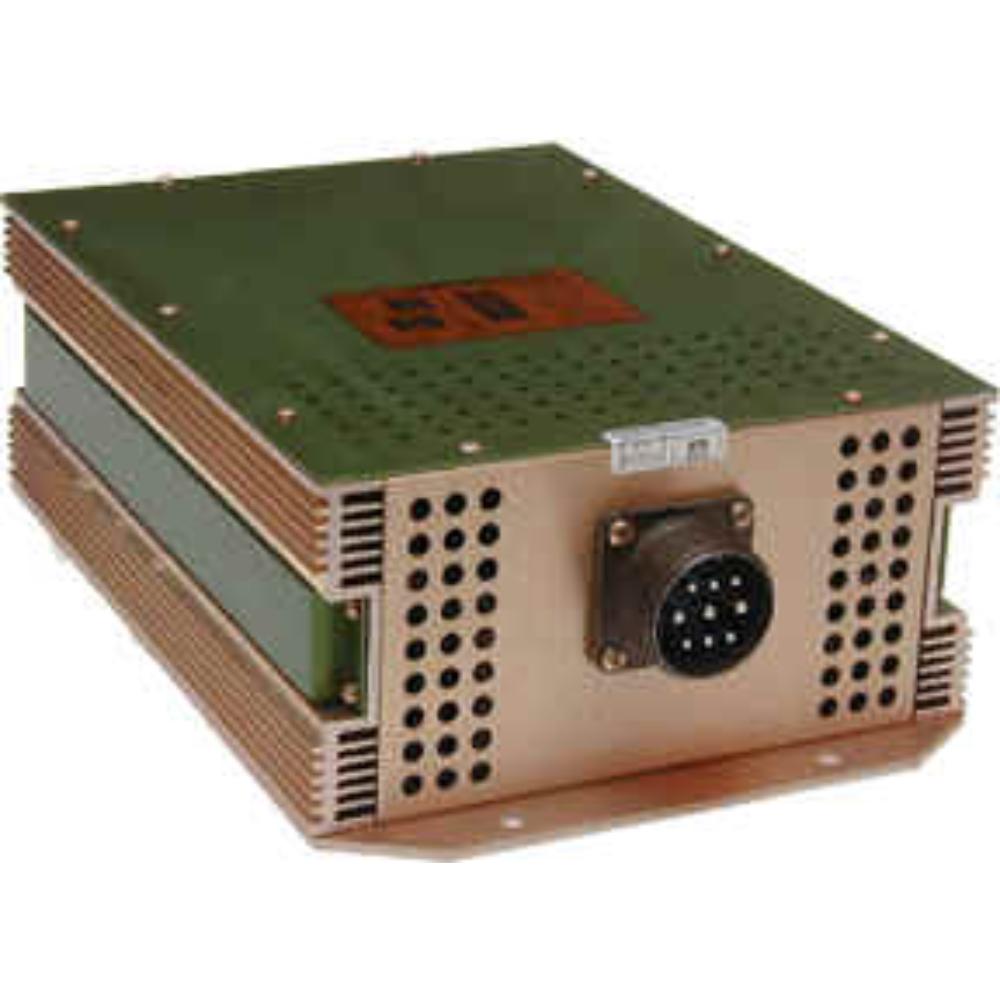

60/50 Hz STATIC INVERTERS
These 50Hz and 60Hz static inverters are used as a source of on-board AC power for the operation of audio and video equipment, portable computers, stereo equipment systems and telecommunication equipment in aircraft that have 28 or 14 Volt DC electrical systems.
For applications requiring greater power these inverters may be paralleled for higher output capacity.
Specifications
Input Voltage
28 VDC ± 2 volts. Withstands 88 vot transient for 1 millisecond.
28 VDC ± 2 volts. Withstands 88 vot transient for 1 millisecond.
Power Factor
.8 to 1.0
.8 to 1.0
Amplitude Distortion
Less than 7%
Less than 7%
Wave Form
Sine wave.
Sine wave.
Phase
Single
Single
Short Circuit
Will withstand for 1 minute.
Will withstand for 1 minute.
Temperature
-65°F to +160°F (-55°C to +71°C)
-65°F to +160°F (-55°C to +71°C)
Altitude
55,000 feet.
55,000 feet.
Qualification
60 Hz Inverters Approved under FAA TSO-C73
60 Hz Inverters Approved under FAA TSO-C73
| MODEL | OUTPUT VOLTAGE (+5% -7%) |
POWER VA |
FREQ. HZ ( ±1 ) |
INPUT VDC CURRENT ADC |
WEIGHT LBS. (KG.) |
| SPS-206 | 115 VAC | 200 | 60 | 28 VDC 10.5A | 15.7 (7.1) |
| SPS-306 | 115 VAC | 300 | 60 | 28 VDC 15.8A | 18.0 (8.1) |
| SPS-205 | 115 VAC | 200 | 50 | 28 VDC 10.5A | 15.7 (7.1) |
| SPS-2052 | 230 VAC | 200 | 50 | 28 VDC 10.5A | 15.7 (7.1) |
| SPS-305 | 115 VAC | 270 | 50 | 28 VDC 15.8A | 18.0 (8.1) |
| SPS-3052 | 230 VAC | 270 | 50 | 28 VDC 15.8A | 18.0 (8.1) |
| SPS-306B | 115 VAC | 375 | 60 | 28 VDC 19.8A | 18.0 (8.1) |
| SPS-306B-3* | 115 VAC | 375 | 60 | 28 VDC 19.8A | 18.0 (8.1) |
| SPS-306-3* | 115 VAC | 300 | 60 | 28 VDC 15.8A | 18.0 (8.1) |
| SPS-3062 | DUAL 115 VAC | 300 | 60 | 28 VDC 15.8A | 18.0 (8.1) |
| SPS-316-3* | 115 VAC | 300 | 60 | 14 VDC 31.0A | 18.0 (8.1) |
|
*Units with remote on-off feature are identified with -3 after model number. |
|||||
Additional information
| Brand | KGS Electronics |
|---|
