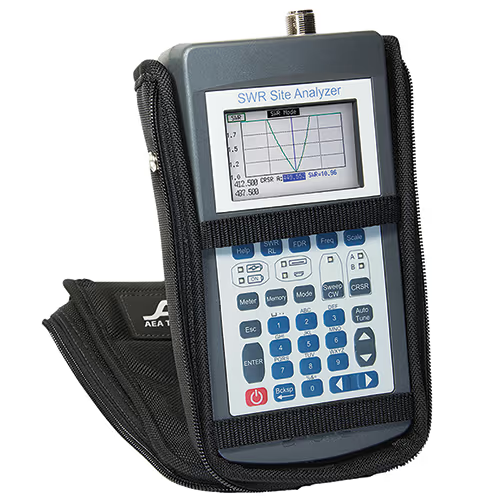

SWR Site Analyzer
$2,236.75
The SWR Site Analyzer measures VSWR, return loss, and frequency domain reflectometer (FDR) on a frequency range of 100 KHz to 1.4 GHz. It features a full color, backlit display with excellent readability — even in full daylight — and 50 memory slots allowing users to save and recall plots on the the device or upload to a PC using the included Site Analyzer PC Vision™ software.
The SWR site analyzer is designed with easy-to-use navigation menus and custom color settings for displaying measurement plots. The included NiMH batteries provides four continuous hours of operation, and communicates with a PC via USB 2.0 with the included cable.
Features
The SWR Site Analyzer includes the 100 KHz to 1.4 GHz analyzer unit and the following accessories:
- N male terminators (short & 50Ω)
- 8xAA NiMH batteries (installed)
- belt case with removable shoulder strap
- USB cable
- 100 – 240 VAC adapter
- Quick Start Guide
- Basic guide
- CD with operating manual
- training PPT
- Site Analyzer PC Visionâ„¢ Software
- Application Notes
Features:
- Four continuous hours of operation with included NiMH batteries
- Easy to navigate menus and custom color settings for displaying measurement plots
- Communicates via USB 2.0 with a PC
- Included technical support for user training and toll free support for the life of the instrument
Specifications
Weight:
2.2 lb (1 Kg) with belt case and batteries
Dimensions:
8.5 x 4.3 x 2.25 in (216 x 109 x 57 mm)
Frequency Range:
100 KHz to 1.4 GHz
Tuning and Display Resolution:
1 KHz
Input Power Range:
-100 dBm to 30 dBm
Refresh Rate:
2.5 times/seconds
Frequency Display:
250 points
Measurement Speed:
10 ms to 1 second
FDR Range:
35 to >10 Kft (10 to >3048m)
FDR Measurements:
DTF and end of cable
FDR Accuracy:
2% of scale
Output Power:
~ 0 dBm @ 50Ω
RF Connectors:
N Type
Power Requirements:
13.8 – 20 VDC @ 800 mA, minium or 8xAA batteries (NiMH, Nicd or Alkaline)
| Brand | AEA Technology |
|---|
