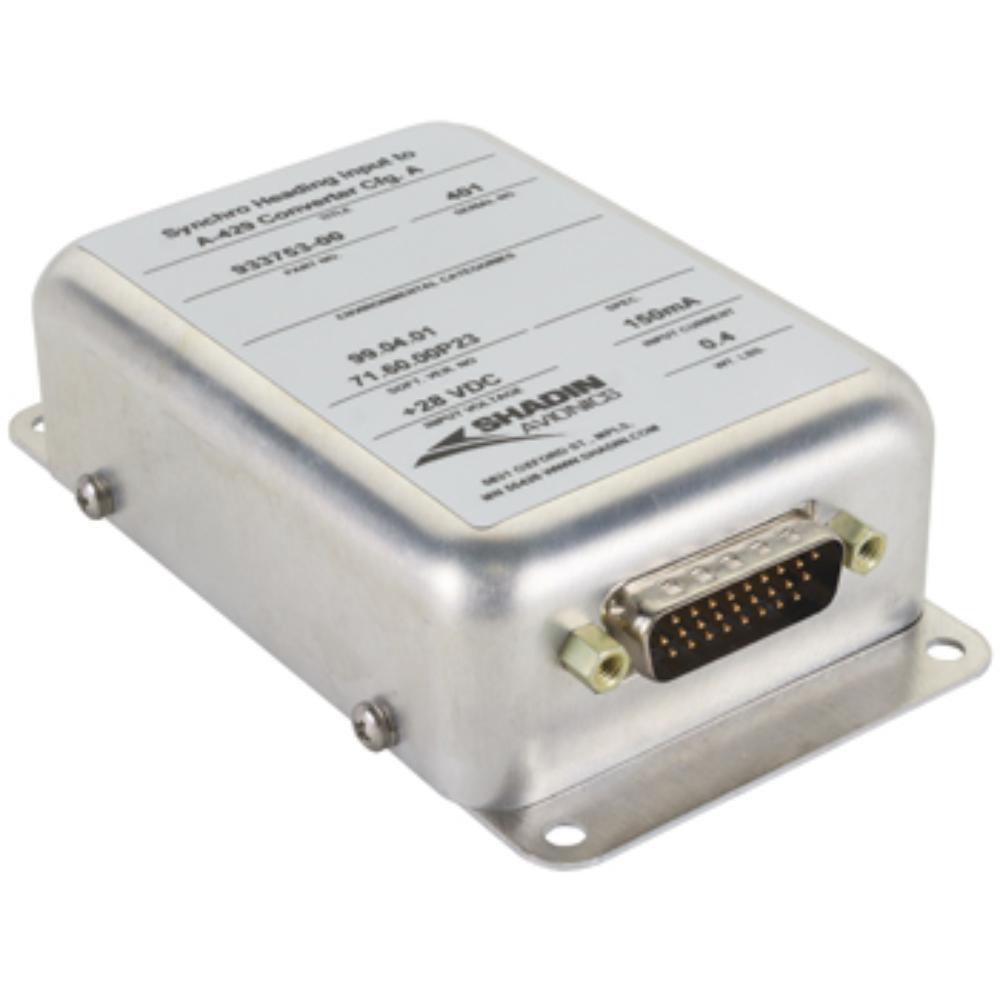

Synchro Heading Input Converter | ARINC 429

Inputs:

• ARINC 407 3-wire (X, Y, Z) Synchro Heading Input
• Reference (H, C) 26VAC 400Hz
• 1 Discrete Input (Synchro Valid)

Output:

• ARINC 429 (A and B) Label 320

Specifications

Weight:
0.4 lb

Dimensions:
1.15 x 4.30 x 2.40 in.

Input voltage:
28VDC

Input current:
150mA

Input data:
Magnetic Heading, ARINC 407 3-wire Synchro (Reference 26VAC 400Hz Excitation 11.8VL-L)
1 Discrete Input: Synchro Valid

Output data:
ARINC 429 LS Data Magnetic Heading, Label 320

Temperature:
-55°C to +70°C

Altitude:
55,000
