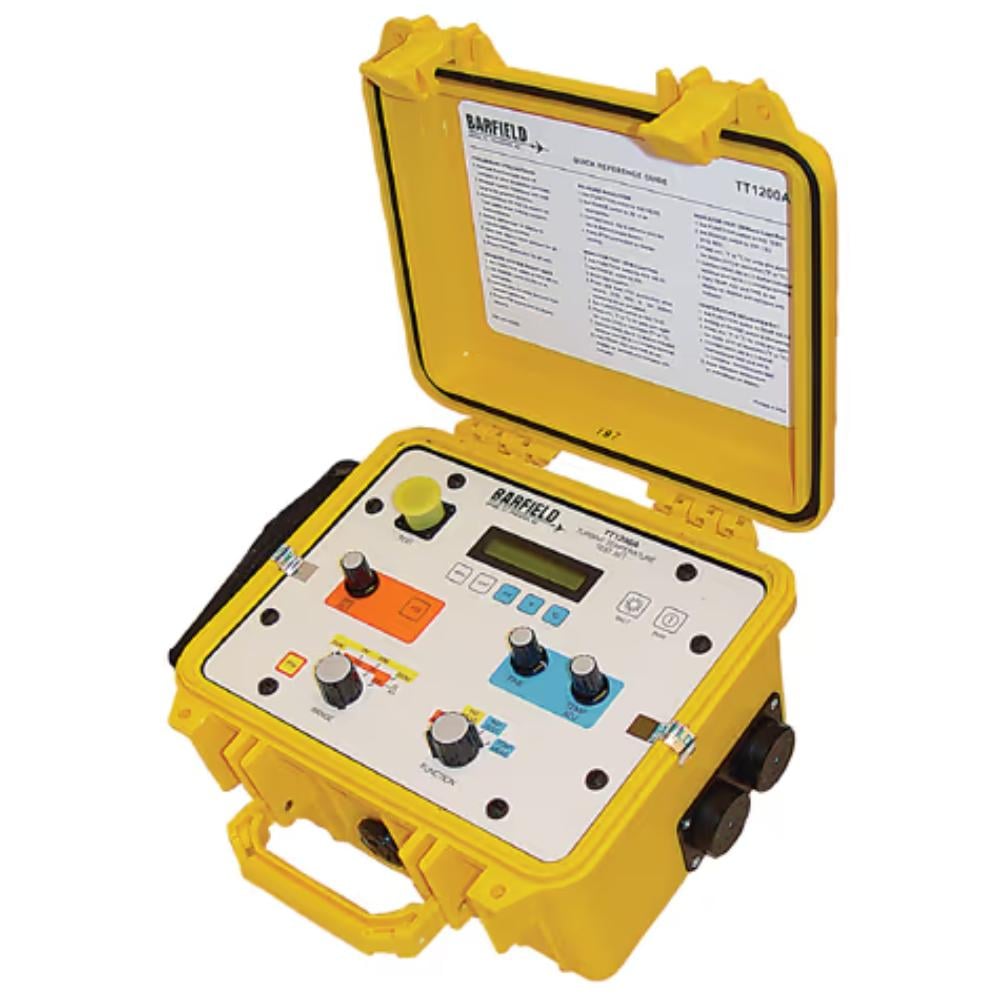

TT1200A Digital Turbine Temperature Test Set | For CF6-80A, A1, A2 Application
Contact Cost Aero at 855-500-3044 for pricing
The TT1200A digital turbine temperature test set is specially designed for testing and calibrating CH-AL (chromel-Alumel temperature indicating systems. This unit provides a quick method for troubleshooting aircraft temperature systems. This test kit is sensitive enough to accurately test thermocouple and system resistance, insulation, and indicator calibration. Also, portability, simple operation, and direct reading of measurement are features built right into the design of this multi-functional temperature test set.
Version is compatible with CF6-80A, A1, A2 Application.
Features
- Self-contained, self-monitoring portable temperature and resistance measuring
- Microprocessor based
- Calibration date from display with user alerts to approaching cal date
- Backlit 16 character alphanumeric display with user prompts
- True 4-wire resistance measurements
- Celsius, Fahrenheit, and equivalent millivoltage displays
- Temperature range to 1372ºC
- Automatic ambient test point temperature correction
- Powered from long lasting C cell batteries with Auto-Off feature
- Timed measurement with display hold feature for resistance and insulation functions
Specifications
Weight:
7.3 lb
Dimensions:
11 x 10 x 7 in.
Temperature measurement:
Range: -200 to 1372 °C
Accuracy: ± 0.3 °C (Typ at 25 °C)
Resistance measurement:
20W: 0 – 19.999W 0.001W increments
200W: 0 – 199.99W 0.01W increments
2KW: 0 – 1.9999KW 0.1W increments
20KW: 0 – 19.999KW 1W increments
Accuracy: ± 0.05 % of reading ± 2 counts
Insulation measurement:
200KW:0 – 199.9KW 0.1KW increments
2MW: 0 – 1.999MW 1KW increments
20MW: 0 – 19.99MW 10KW increments
200MW: 0 – 199.9MW 1001KW increments
Excitation: 45 VDC Accuracy: ± 5 % of reading ± 2 counts
Operating temperature:
-10 to 50ºC
| Brand | Barfield |
|---|
