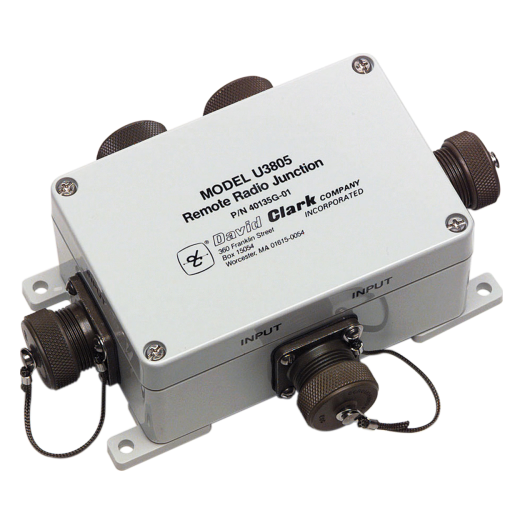

U3805 Radio Cord Junction Module
$468.75
The U3805 is a passive module recommended for systems utilizing two or more radio interface headset stations. It is designed for permitting multiple Series 3800 Radio Interface Modules (a maximum of four) to be connected to one radio.
The U3805 provides one output to a mobile radio, one primary input from a Series 3800 Radio Interface Module, and three secondary inputs from Series 3800 Radio Interface Modules.
Features
- Passive module with no controls
- Designed to simplify mobile radio interface installation by collecting radio interface cords from up to 4 Series 3800 Radio Interface Modules, and providing a single shared connection point to one radio
- 4 each Radio Input connectors, for multiple connections of C3821 Radio Interface Cords (via 18352G-17 MS Connector Kit)
- 1 Primary Radio Input
- 3 Secondary Radio Inputs
- 1 each Radio Output connector, for connection to mobile radio via C3821 Radio Interface Cord
- Surface mount installation kit included
- Durable, weather-resistant enclosure
- Quality materials, components and craftsmanship
- Rugged and reliable
Specifications
Weight:
13.4 oz (380 g)
Dimensions:
6.75 x 5.25 x 2.375 in
Power Requirements:
12 or 24 VDC
Enclosure:
Heavy-gauge polycarbonate (-80° to +212°F)
Radio Input Connections:
4 each, via C3821 Radio Interface Cords and 18352G-17 MS Connector Kits
Radio Output Connections:
1 each, via C3821 radio Interface Cord
Installation:
Surface mount (mounting kit included)
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 0.1 × 0.1 × 0.1 in |
| Brand | David Clark Company |
