VHF Communications Antenna | 118-137 MHz, 4 Hole Mount, BNC Female Connector, Gloss Black
$357.00

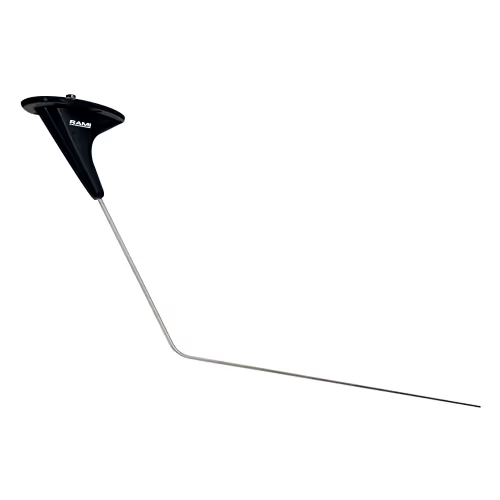

The AV-17 is designed specifically for mounting to the underside of an aircraft, providing an excellent radiation pattern for air-to-ground communications. It has a 4-bolt mounting base and is low in profile. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 0.66 lb @ 250 mph. This antenna is a direct replacement for the CI 122.
This VHF communications antenna has a gloss black finish.
The AV-17 is designed specifically for mounting to the underside of an aircraft, providing an excellent radiation pattern for air-to-ground communications. It has a 4-bolt mounting base and is low in profile. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 0.66 lb @ 250 mph. This antenna is a direct replacement for the CI 122.
This VHF communications antenna has a gloss black finish.
Specifications
Weight:
8 oz
Height:
9.0 in
Frequency:
118–137 MHz
Impedance:
50 Ohms Nominal
VSWR:
3.0:1 Maximum
Polarization:
Vertical
Pattern:
Omni-Directional
Connector:
BNC Female
RF Power Capacity:
30 Watts
FAA TSO:
C37d, C38d
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 0.1 × 0.1 × 0.1 in |
| Brand |
RA Miller Industries |
