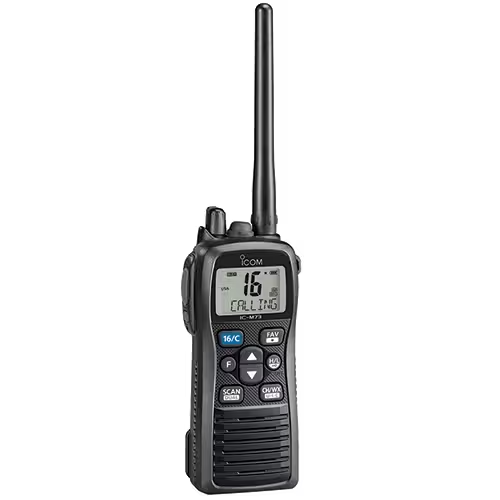

VHF Marine Handheld Transceiver | 156-163MHz, 6 Watt, Submersible

Features

• AquaQuake™ prevents audio degradation from a water-logged speaker
• Dual/Tri-Watch function for monitoring Channel 16 and/or call channel
• 4 level battery indicator
• Favorite channel and tag scan functions
• Rapid desktop charger, BC-210, and cigarette lighter cable, CP-25H, are supplied
• Optional waterproof speaker-microphones, HM-167 and HM-202
• Auto power save function
• Basic version (no voice recorder, no noise canceller and no bass boost function) available for limited markets.
• Supports 4-digit channels

Specifications

• Weight: 11.3 oz ( 320 g)
• Dimensions: 2.0 x 4.9 x 1.2 in (52.5 x 125 x 30 mm)
• Frequency Range: Tx: 156.025–157.425 MHz Rx: 156.050–163.275 MHz
• Usable Channel Groups: INT, USA, CAN, WX channels
• Type of Emission: 16K0G3E (FM)
• Current Drain (approximate): Tx (6 W Output): 1.5 A Rx (Max. Audio): 450 mA/250 mA
• Operating Temperature: -4°F to 140°F (-20°C to 60°C)
• Antenna Impedance: 50 Ω
• Output Power: 6 W (high), 3 W (mid), 1 W (low)
• Max. Frequency Deviation: ±5.0 kHz
• Frequency Stability: ±10 ppm
• Spurious Emissions: -68 dBc typical
• Adjacent Channel Power: 70 dB
• Audio Harmonic Distortion: 10% (at 60% dev.)
• Residual Modulation: 40 dB
• Sensitivity: 0.22 µV typical (at 12dB SINAD)
• Squelch Sensitivity: 0.35 µV typical (at threshold)
• Adjacent Channel Selectivity: 70 dB typical
• Spurious Response: 70 dB typical
• Intermodulation: 70 dB typical
• Hum and Noise: 40 dB
• Audio Output Power (at 10% distortion, 8 Ω load): 700 mW typical (Internal SP) 350 mW typical (External SP)
