IBBS Replacement Batteries (3ah and 6ah)
LiFe battery pack replacement for the Integrated Battery Back-up System. IBBS replacement batteries are available for all Experimental and Certified IBBS models.
Select options
This product has multiple variants. The options may be chosen on the product page
A200-TSA Outside Air Temperature Sensor
The A200-TSA is a monolithic temperature sensor with on-chip signal conditioning and an operating temperature of -50°C to 150°C. It has an accuracy of +/- 0.5°C over the full operating range.
The output voltage is proportional to the temperature x the supply voltage (ratiometric). The output swings from 0.25 V at −50°C to +4.75 V at +150°C using a single +5.0 V supply.
The temperature transfer function is:
VOUT = (V+/5 V) × [1.375 V +(22.5 mV/°C) × TA]
Power requirements are 5V / 1mA.
The sensor has a 5/16-24 threaded body and is supplied with two nylon mounting washers and a Nyloc fastening nut.
Supplied with a 48" color coded cable.
When installed in accordance with the approved instructions and as part of a qualified instrument system, this temperature sensor is STC'd as a primary replacement.

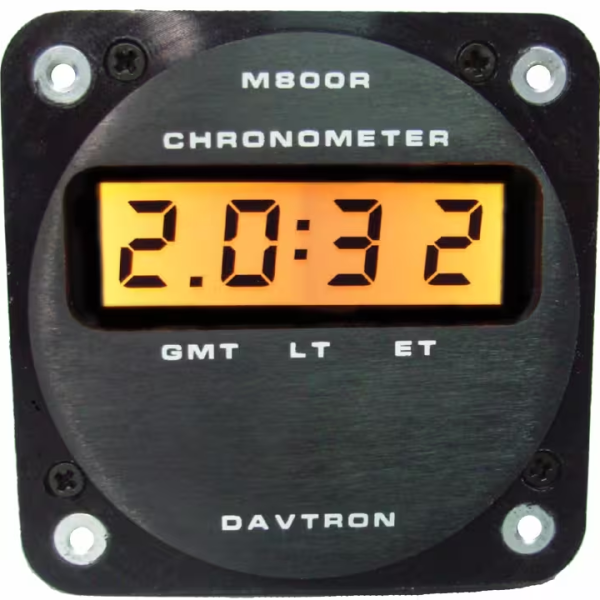

M800R Remote Digital Clock Chronometer | 14V, Orange Lighting | Remote Unit
Noise Eliminator Filter | 10 Amp, Wide Attenuation
This DC eliminator filter is FAA-PMA approved solution for reducing interference from alternators, strobe and rotating beacons, AC HVAC, DC motors, electronic fuel pumps and any other electrical components prone to produce noise. This device also protects on-board aircraft electronics from power surges and spikes.

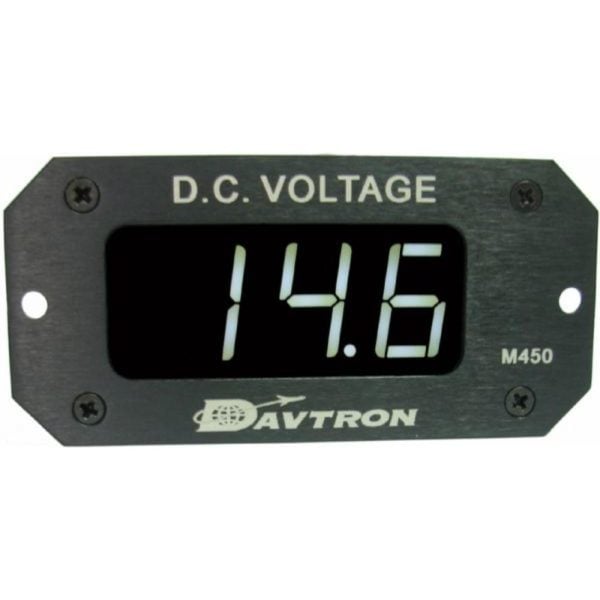

Model 450 Digital Voltmeter | White LED Display

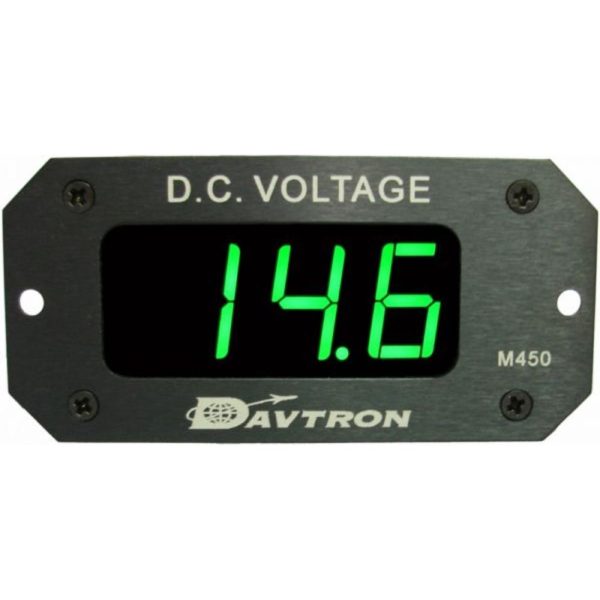

Model 450 Digital Voltmeter | Green LED Display
Map Light 4 FAA-PMA Cessna Certified LED Maplight | Red, 24V, Panel Mount
Beechcraft S35/V35/V35A/V35B GFC 500 Autopilot Hardware Kit
Beechcraft A36, A36TC GFC 500 Autopilot Hardware Kit
This kit includes all the “Best Source” hardware listed in the Garmin® installation addendum including the connector and ground stud hardware for the control head and each servo listed in the Garmin® installation manual. This will save valuable billable time and allow you to do more! For Serial Numbers E572 & ON.
Variable Intensity Lighting Controller
Variable Intensity Lighting Controller - REV 1 Instrument ONLY
NOTE: This item is only required for use on products purchased BEFORE 03-JAN-2013
ONLY USE THIS ITEM TO REPLACE AN EXISTING REV A UNIT IF IT HAS FAILED.
Products manufactured after this date have this unit INCLUDED and are connected to the panel lighting system or a separate potentiometer.
The A200-DDC Intensity Controller will support up to ten Rev 1 instruments in a single installation. It provides infinitely variable, uniform intensity control for all instruments.
These units are TSO qualified with all 200 Series instruments and is STC'd as a primary replacement instrument component under all flight conditions (day/night VFR and IFR).
