Category – Airframe Parts – Antennas
RAMI AV-1FG Base Station | VHF
The AV-1FG is a base station antenna for communications mounted on top of a quick erect fiberglass telescoping mast which can be extended anywhere from approximately 5’ 6” to 27’ tall in 5’ increments. The mast is supplied with guy rings, guy ropes and anchor stakes for security when erected. This kit can be used with Becker Avionics GK615 and GK616 VHF radios.
RAMI AV-6 Cable Assembly
RAMI AV-17 Airborne Communications | VHF
The AV-17 is a general aviation antenna designed specifically for mounting to the underside of an aircraft, providing an excellent radiation pattern for air-to-ground communications. It has a 4-bolt mounting base and is low in profile. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 0.66 lb @ 250 mph. This antenna is a direct replacement for the CI 122.
RAMI AV-530 Airborne Communications | VHF
The AV-530 is designed for broadband communications. The antenna has a die-cast aluminum base and a tapered stainless steel whip for less drag at higher airspeeds. It is supplied with a weather-sealing gasket and mounting hardware. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 1.65 lb @ 250 mph. This antenna is a direct replacement for the CI 292-1.
RAMI AV-534 Airborne Communications | VHF
The AV-534 is a heavy-duty stainless steel quarterwave VHF communications antenna. It is manufactured with a durable type stainless steel whip and large stress-relieved ferrule and comes complete with porcelain insulators and mounting hardware. The antenna is designed to operate at speeds of up to 350 mph and altitudes of 50,000 ft. It has a drag force of 0.56 lb @ 250 mph.
RAMI AV-534L Airborne Communications | VHF
The AV-534L is a heavy-duty stainless steel quarterwave VHF communications antenna. It is manufactured with a durable type stainless steel whip and large stress-relieved ferrule and comes complete with porcelain insulators and mounting hardware. The antenna is designed to operate at speeds of up to 350 mph and altitudes of 50,000 ft. It has a drag force of 0.56 lb @ 250 mph. An 8 foot transmission line with connectors is also supplied.
RAMI AVT-4 Airborne Communications | VHF
The AVT-4 is a broad-band VHF communications antenna. It incorporates a low drag blade housing design for high strength and a radiating element encapsulated in rigid polyurethane foam. The housing is finished with a Skydrol resistant white polyurethane paint and comes with mounting hardware and neoprene mounting pad. The antenna is designed to operate at speeds up to 350 mph and altitudes of 50,000 ft. It has a drag force of 0.85 lb. @ 250 mph.
RAMI AV-535 Bent Whip Antenna | FM Extended Band
RAMI AV-210 Airborne CAP | VHF
RAMI AV-3 Ground Vehicular | VHF Communications
The AV-3 is a general aviation, low profile, snap-in mounting quarterwave antenna for use on ground vehicles. It has a solderless cable connection at the antenna and is supplied with 17 ft. of cable and a PL-529 connector. The antenna is field tunable by simply cutting the whip to the required length.
RAMI AV-7F & AV-7M Ground Vehicular VHF Communications
The AV-7 is a high performance vehicular antenna for use on all surface vehicles where communications on the aircraft VHF COM frequency band are required. It features heavy duty construction with a tapered 17-7PH stainless steel whip and spring mount. All exposed fittings are chrome-plated brass or stainless steel.
Mounting is easily achieved on rooftop, cowl, fender or other suitable location via a magnetic or fixed “NMO” base. The antenna comes pre-tuned to operate in the aircraft VHF COM frequency band of 118-137 MHz and can be purchased as a complete package or separate antenna and mounting base.
RAMI AV-200(-B) Airborne ELT
RAMI AV-300 ELT Communication
The AV-300 ELT antenna is intended for use with a 406 MHz ELT (Emergency Locator Transmitter) for General Aviation. It is a passive three frequency fiberglass rod whip antenna, designed for low speed aircraft (up to 350 knots). It has met DO-160G, Section 8, Category U requirements for robust vibration and is qualified for installation on helicopters with unknown rotor frequencies.
RAMI AV-401 Airborne ELT Antenna

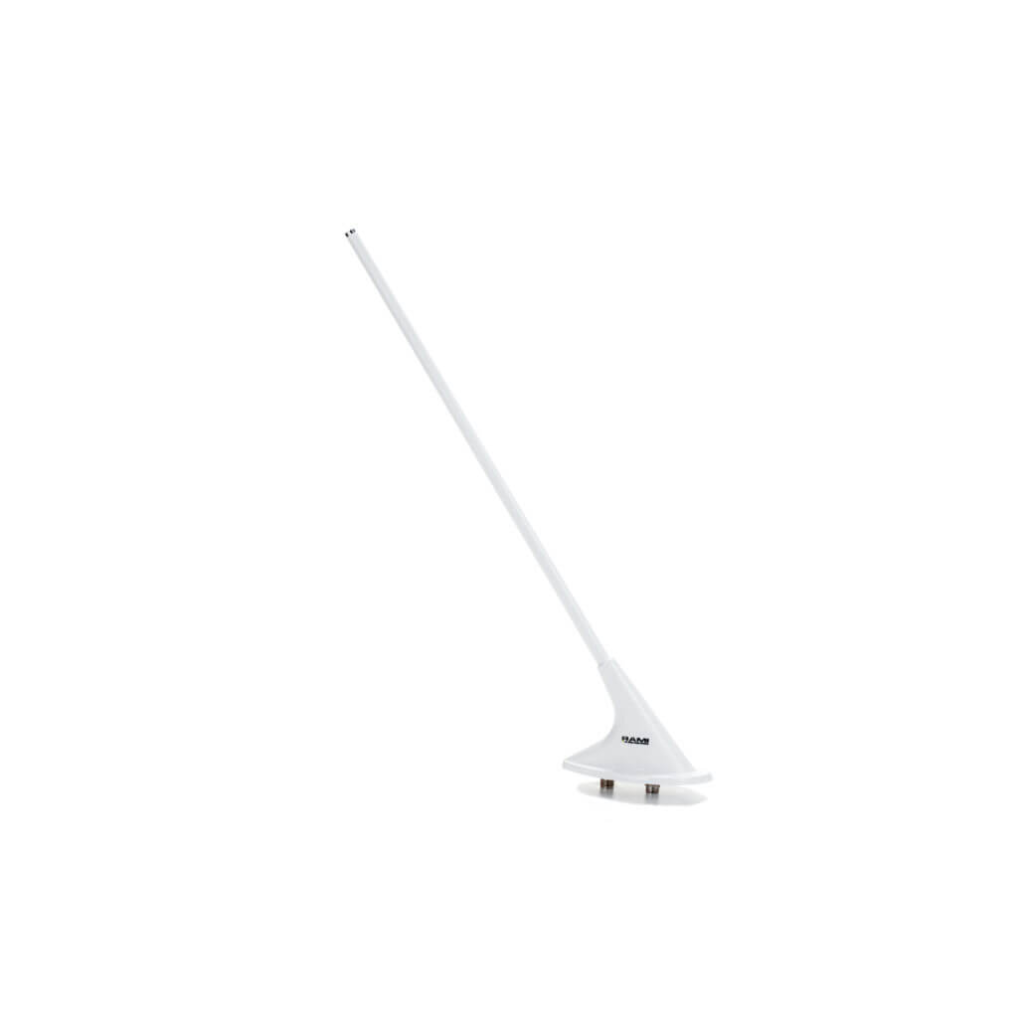

RAMI AV-402 Airborne ELT Antenna
RAMI AV-701 General Aviation ELT Antenna
This general aviation antenna is intended for use with an ELT (Emergency Locator Transmitter). It is a passive single port three frequency aircraft blade antenna, designed for high speed aircraft. The circuit Board Housing is made from Polycarbonate. This antenna operates at VHF and UHF frequencies.
