Category – Airframe Parts – Antennas
RAMI AV-924HS Airborne Communications | Special Use
The AV-924HS antenna was developed to be used with airborne FM transceivers typically used in first responder type aircraft providing a single antenna solution for the multiband transceivers. This antenna operates at VHF and UHF frequencies. It meets DO-160G, section 8, Category U requirements for robust vibration and is qualified for installation on helicopters with unknown related rotor frequencies. The AV-924HS meets the environmental requirements for flight speeds up to Mach 1 and supersedes the AV-924 part number. It is the same form, fit and function.
RAMI AV-75
The AV-75 is a broadband blade type antenna for FLARM collision avoidance application. The antenna housing is constructed of anancrylonitrile-styrene-acrylic (ASA) shell. The white color allows maximum performance without losses due to color pigments or unseen dirt. The antenna is supplied with cellular neoprene mounting pad and hardware. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 feet.
RAMI AV-601 Radar Altimeter
The AV-601 is a radar altimeter antenna specifically designed to meet FAA TSO-C87a specifications. Qualification testing includes meeting the requirements of EUROCAE ED-30, Edition 2, “Minimum Performance Standards for Airborne Low Range Radar Altimeter Equipment,” as modified by Appendix 1 of the TSO.
RAMI AV-290 Dual-Band, Wideband | UHF
RAMI AV-932
RAMI AV-265 General Aviation | Transponder, Cellular, L-Band, 4G LTE Antenna
The AV-265 is a broadband blade type antenna for applications such as Transponder, Cellular, 4G LTE, GSM, PCS, WIFI, and UMTS. The antenna housing is constructed of a Polyarylamide Plastic shell and the base is 6061-T6 aluminum with a chemical conversion coating per MIL-C-5541. The antenna is supplied with an o-ring and mounting hardware. The antenna is designed to operate at speeds up to Mach 1 and altitudes up to 55,000 feet.
RAMI AV-525 VOR/LOC/GS Receive Only
RAMI AV-532 VOR/LOC/GS Receive Only Antenna
The AV-532 is a VOR/LOC/GS receive only antenna. It consists of taper ground high-strength 17-7PH stainless steel elements to reliably withstand vibration and wind loads. The insulators are weather-sealed compression-molded bakelite with the mounting holes provided. The unit may be mounted with the V pointed either forward or aft. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 3.42 lb @ 250 mph.

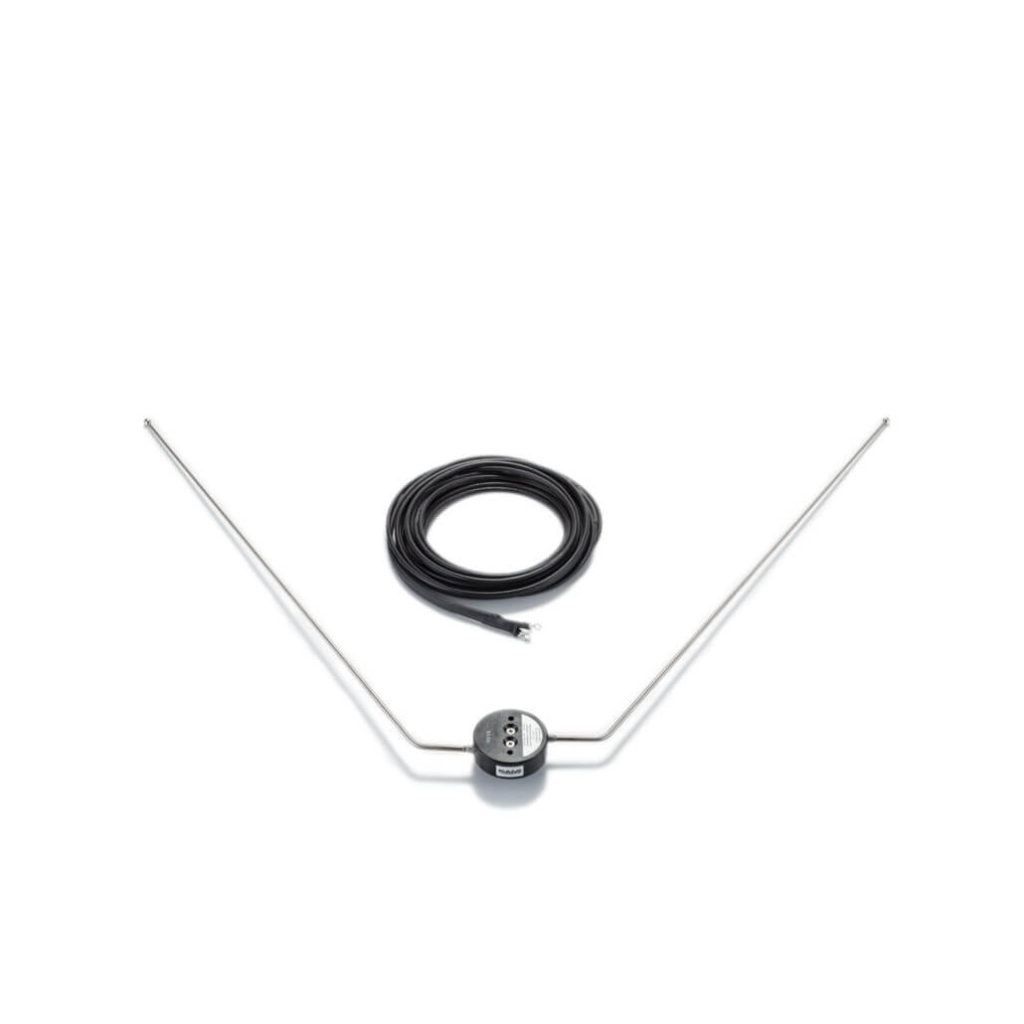

RAMI AV-532L VOR/LOC/GS Receive Only Antenna
The AV-532L is a VOR/LOC/GS receive only antenna. It consists of taper ground high-strength 17-7PH stainless steel elements to reliably withstand vibration and wind loads. The insulators are weather-sealed compression-molded bakelite with the mounting holes provided. The unit may be mounted with the V pointed either forward or aft. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 3.42 lb @ 250 mph. A 30 foot transmission line with integral balun is also supplied.
RAMI AV-74(-1) Transponder/DME
The AV-74(-1) is a broadband blade type antenna for transponder or DME application. The antenna has longer mounting studs for thicker mounting locations. Its housing is constructed of anacrylonitrile-styrene-acrylic (ASA) shell. The white color allows maximum performance without losses due to color pigments or unseen dirt. The antenna is supplied with cellular neoprene mounting pad and hardware. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 0.09 lbs @ 250 mph. This antenna is a direct replacement for the CI 105-16.
RAMI AV-61 Aviation L-Band and Transponder Antenna
The AV-61 is a broadband blade type antenna for DME, Transponder, ATCRBS/MODES, TCAS & TAS. The antenna housing is constructed of anacrylonitrile-styrene-acrylic (ASA) shell. The white color allows maximum performance without losses due to color pigments or unseen dirt. The antenna is supplied with cellular neoprene mounting pad and hardware. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It operates at 960-1220 MHz and it has a drag force of 0.09lbs @ 250 mph. This antenna is a direct replacement for Honeywell’s KA61.
8603 Rod Antenna, Tri-band
The ARTEX 8603 Rod Antenna is reinforced with glass and a polyester housing that covers our innovative Tri-Band technology, effectively bringing 121.5, 243, and 406 MHz frequencies in one compact package. This highly efficient antenna provides a single BNC connector for those installations that require a single connector set-up.
