Category – Airframe Parts – Antennas
RAMI AV-701 General Aviation ELT Antenna
This general aviation antenna is intended for use with an ELT (Emergency Locator Transmitter). It is a passive single port three frequency aircraft blade antenna, designed for high speed aircraft. The circuit Board Housing is made from Polycarbonate. This antenna operates at VHF and UHF frequencies.
RAMI AV-569 Marker Beacon | VHF
The AV-569 is a boat type marker beacon antenna designed for very low drag. It is constructed of an acrylonitrile-styrene- acrylic (ASA) shell with the internal parts encapsulated in rigid urethane foam for mechanical and electrical stability. The white color allows maximum performance without losses due to color pigments or unseen dirt. It is supplied with cellular neoprene mounting pad and hardware. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 0.20 lb @ 250 mph.
RAMI AV-64 Marker Beacon
The AV-64 is a boat type marker beacon antenna designed for very low drag. It is constructed of an acrylonitrite-styrene-acrylic (ASA) shell with the internal parts encapsulated in rigid urethane foam for mechanical and electrical stability. The white color allows for maximum performance without losses due to color pigments or unseen dirt.
The antenna is supplied with cellular neoprene mounting pad and hardware.
The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 0.22 lbs @ 250 mph. This antenna is a direct replacement for the CI 102.
RAMI AV-14 Airborne Communications | VHF
RAMI AV-15 Airborne Communications | UHF
The AV-15 is used with aviation, land mobile radio, and flight phone bands. The durably constructed chrome-plated phosphor bronze whip is set in a teflon insulator and the chrome-plated ball tip provides low noise static discharge. The antenna is designed to operate at speeds up to 350 mph and altitudes of 50,000 ft. It has a drag force of 0.75 lb @ 250 mph.
RAMI AV-925 Airborne Communications
The AV-925 antenna was developed to be used with airborne FM transceivers. It is typically used in first responder type aircraft providing a single antenna solution for multiband transceivers. It has met DO-160G, Section 8, Category U requirements for robust vibration and is qualified for installation on helicopters with unknown related rotor frequencies. It is also qualified to perform as a 406 MHz ELT antenna, and is well suited for this function on higher speed, fixed wing aircraft.
RAMI AV-21 Special Use | UHF
RAMI AV-924HS Airborne Communications | Special Use
The AV-924HS antenna was developed to be used with airborne FM transceivers typically used in first responder type aircraft providing a single antenna solution for the multiband transceivers. This antenna operates at VHF and UHF frequencies. It meets DO-160G, section 8, Category U requirements for robust vibration and is qualified for installation on helicopters with unknown related rotor frequencies. The AV-924HS meets the environmental requirements for flight speeds up to Mach 1 and supersedes the AV-924 part number. It is the same form, fit and function.
RAMI AV-75
The AV-75 is a broadband blade type antenna for FLARM collision avoidance application. The antenna housing is constructed of anancrylonitrile-styrene-acrylic (ASA) shell. The white color allows maximum performance without losses due to color pigments or unseen dirt. The antenna is supplied with cellular neoprene mounting pad and hardware. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 feet.
RAMI AV-601 Radar Altimeter
The AV-601 is a radar altimeter antenna specifically designed to meet FAA TSO-C87a specifications. Qualification testing includes meeting the requirements of EUROCAE ED-30, Edition 2, “Minimum Performance Standards for Airborne Low Range Radar Altimeter Equipment,” as modified by Appendix 1 of the TSO.
RAMI AV-290 Dual-Band, Wideband | UHF
RAMI AV-932
RAMI AV-265 General Aviation | Transponder, Cellular, L-Band, 4G LTE Antenna
The AV-265 is a broadband blade type antenna for applications such as Transponder, Cellular, 4G LTE, GSM, PCS, WIFI, and UMTS. The antenna housing is constructed of a Polyarylamide Plastic shell and the base is 6061-T6 aluminum with a chemical conversion coating per MIL-C-5541. The antenna is supplied with an o-ring and mounting hardware. The antenna is designed to operate at speeds up to Mach 1 and altitudes up to 55,000 feet.
RAMI AV-520 VOR/LOC/GS Antenna
RAMI AV-525 VOR/LOC/GS Receive Only

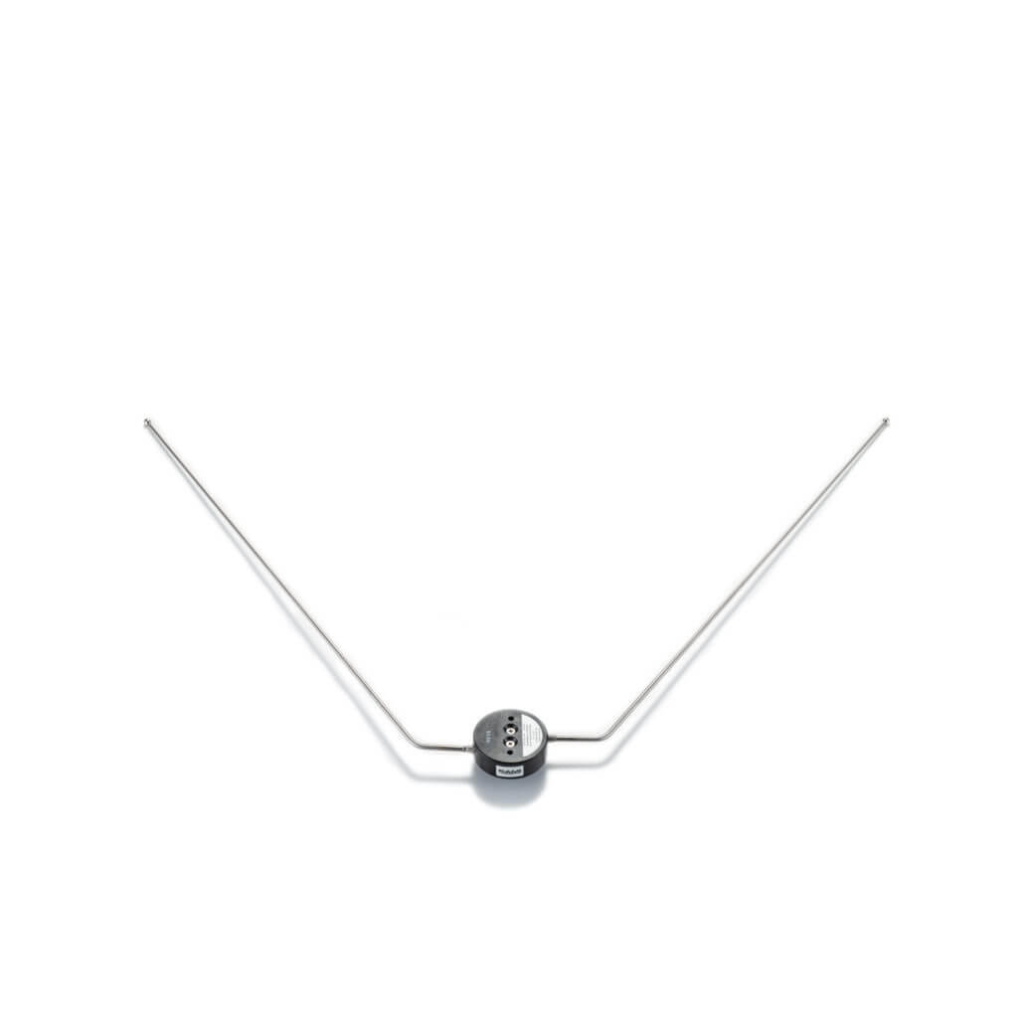

RAMI AV-532 VOR/LOC/GS Receive Only Antenna
The AV-532 is a VOR/LOC/GS receive only antenna. It consists of taper ground high-strength 17-7PH stainless steel elements to reliably withstand vibration and wind loads. The insulators are weather-sealed compression-molded bakelite with the mounting holes provided. The unit may be mounted with the V pointed either forward or aft. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 3.42 lb @ 250 mph.
