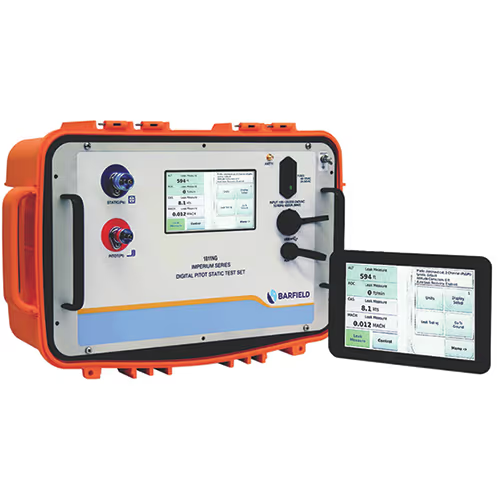

1811NG Digital Pitot Static Test Set
$16,280.00
The 1811NG Digital Pitot Static Test Set performs altimeter and static systems tests and inspections for GA, helicopter, and UAV, non-RVSM regional and corporate aircraft. The 1811NG has a user-friendly interface and is equipped with Wi-Fi technology so that technicians can operate the test set remotely using a tablet and testing application (tablet not included). Every detail of this device is executed with the end user in mind, including the bright, sunlight readable LCD color touchscreen that is glove friendly for cold-weather applications, as well as the durable wheel design and convenient, extendable handle.
Features
- Highly accurate and Non-RVSM compliant
- Full automatic control
- 7-inch, updatable, LCD touch screen is usable in sunlight and while wearing gloves
- Go to ground function
- Custom profiles for auto leak tests
- Programmable limit protections
- Altitude corrections
- Altitude compensations for leak testing
- Case includes durable wheels and extendable handle
- Wireless Operation from a tablet computer
- Proven accurate and stable transducer technology
- Cost effective for general aviation, helicopter, UAV, non-RVSM, and corporate aircraft support
- User-friendly interface
- Increased labor efficiency
- Product durability and reliability
- Flexible features and design updates
Specifications
Dimensions:
14.8 x 22.2 x 9.0 in (37.6 x 56.4 x 22.9 cm)
Weight:
33 lb (15 kg)
Accuracy:
MACH:
±0.0005 @ 0.10 decreasing to ±0.0001 @ 1.0 and above
EPR:
±1 Count of display
ROC:
±2% of value
Ps Sensor:
±0.2% FS Typical, ±0.4% Max.
Qc Sensor:
±0.002 inHg rising to ±0.020 @ FS
Stability (calibration):
Drift per 12 Months:
0.025% of Range/Year (max)
Calibrated Temperature Range:
0°C to 50°C
Temperature:
0°C to 50°C, operating
-25°C to 70°C, storage
AC Power Requirements:
85 VAC – 264 VAC; 50 HZ – 60 Hz
Auto selection; 200VA
Ps, Pneumatic Capacity (6,000 ft/min):
125 cu. in. 2 Liters
Pt, Pneumatic Capacity (300 ft/min):
75 cu. in. 1.3 Liters
