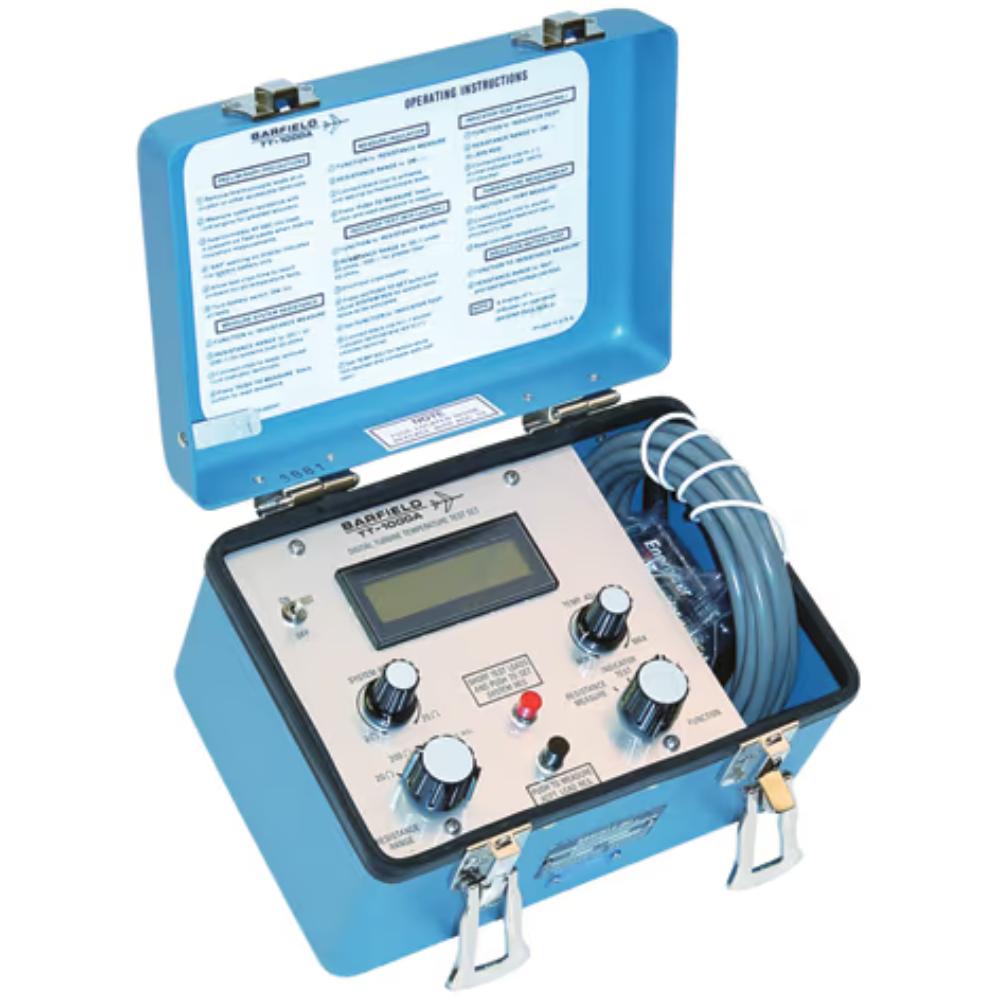

TT-1000A Digital Turbine Temperature Tester
$6,077.50
The TT1000A is a completely self-contained, battery powered, aircraft turbine temperature system tester capable of measuring system lead resistance, insulation, and performing indicator run-outs with a range up to 1000 C°. The unit was specifically designed to meet all requirements for testing aircraft Chromel/Alumel (CH/AL) turbine temperature measuring systems and provides an accurate display of thermocouple outputs in degrees Celsius (°C).
Features
- Measures resistance of thermocouple, rings and system lead circuits
- For use with bench testing indicators
- Automatic temperature compensation test leads
- Thermo couple and lead resistance measurements to 0.01
- Insulation measurements up to to (2) megohms
- Large, 9 mm (0.35 in) high character, 3-1/2 digit liquid crystal display
- Measures/displays CH/AL thermocouple values in degrees Celsius (ºC)
- Simulates CH/AL thermocouple w/wo simulated system lead resistance
- Pre-programmed legends
Specifications
Weight:
4 lb
Dimensions:
8 x 5.5 x 5 in
Range:
0 C° to 1,000 C° certified, -60 C° to 1,160 C° extended
Accuracy:
Typical measurement error at ambient (25ºC) less than ± 1ºC
| Brand | Barfield |
|---|
