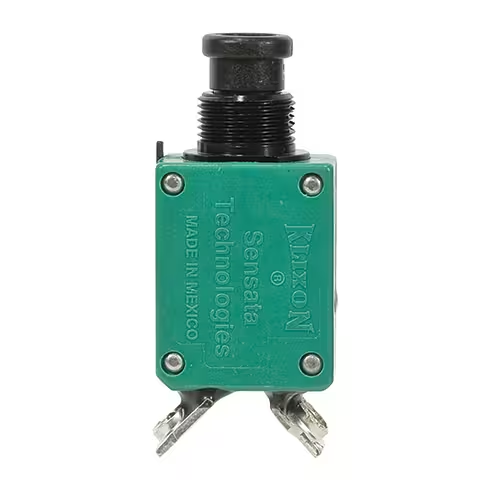

2TC14 Series Circuit Breaker | 10 Amp Rating
$67.71
5
Items sold in last 13 days
4
People watching this product now!
Description
Includes hardware.
Features
- Compact size and weight
- Trip-free design
- 1 to 25 Amp current rating
- High vibration resistance
- High interrupting capacity up to 6,000 amps at 28 VDC and 3,500 amps at 120 VAC, 400 Hz
- Typically used on aircraft power distribution systems
- AS58091 qualified as well as military approvals, and FAA PMA
Specifications
-
Weight: 24 g, maximum
-
Specification Current Rating: 10 Amps
-
Vibration: 10G minimum, 50 – 500 Hz
-
Mechanical Shock: 50G
-
Acceleration: 10G
-
Interrupt Current: 1–20 amps: 6,000 amps at 28 VDC 25 amps: 1,625 amps at 28 VDC 1–15 amps: 2,500 amps at 120 VAC, 400 Hz 20 amps: 2,000 amps at 120 VAC, 400 Hz 25 amps: 1,800 amps at 120 VAC, 400 Hz
-
Endurance: 2,500 cycles: 120 VAC, 400 Hz inductive 5,000 cycles: 120 VAC, 400 Hz resistive 2,500 cycles: 30 VDC inductive 5,000 cycles: 30 VDC resistive 10,000 cycles: Mechanical, no load
-
Operating Altitude: 70,000 ft
Additional information
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand |
Klixon |
