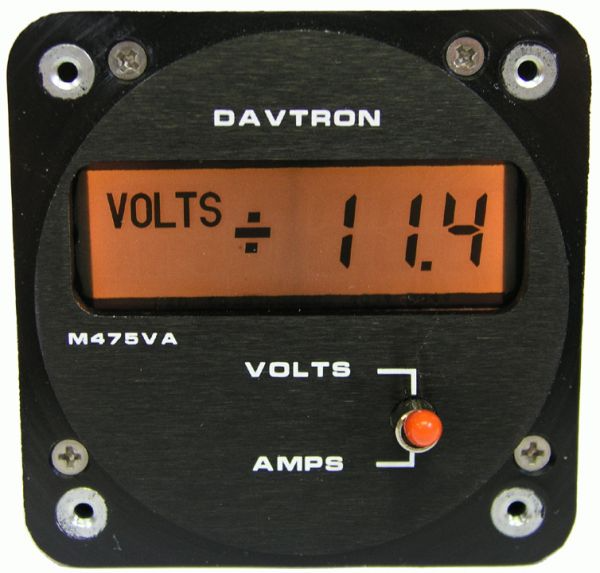

400 Series Voltage & Dual Amperage Meter | 2-1/4 Mount, 5V Orange Lighting
$371.64
The M475VA and M475VAA were designed for low current drain and are used in standby and emergency battery packs.
Note: Shunts can be remoted (special order). Extreme care must be taken to fuse wire when using remote shunts. See part numbers with an “”R”” in them for remote shunts.
Features
- Low current drain .001A
- +- 150.0 amp range
- +100.0 volt DC range
- 2.25″” standard mount
- 1.3″” case depth
- 5, 14 or 28 volt back lighting
- Sunlight readable
- .1A resolution
- .1V resolution
Specifications
Range:
8 to 32 Volts
Input Voltage:
14 to 28 Volts
Resolution:
0.1 Volt
Input Current:
150 mA max.
Operating Temp.:
-25°C to +60°C
Accuracy:
+/- 1% of full scale
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand |
Davtron |
