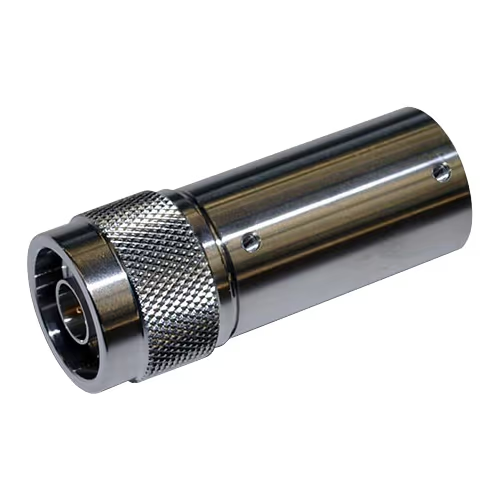

5-Watt Termination Load | 50Ω, N Male
$103.50
The 5-T Series terminations are compact, convection-cooled, and built for dependable performance up to 4 GHz. Designed with non-magnetic materials and rugged construction, they’re ideal for sensitive RF environments where stability, safety, and long-term reliability matter. When performance can’t be compromised, trust Bird to deliver.
This 5-T series 5-Watt termination load has a male N connector.
Features
- Self cooling design, needs no cooling plate
- Frequencies up to 18 GHz
- Load requires no AC power
- Rugged construction
- Broadband operation
Specifications
Weight:
4.6 oz (131 g)
Dimensions:
2.9 in x 1.4 in (74 mm x 36 mm)
Power Rating:
5W (max) @ 40°C
Frequency Range & VSWR:
DC to 1 GHz @ 1.10:1 max
1 to 4 GHz @ 1.25:1 max
Impedance:
50 Ohms, nominal
Connector:
N-Type Male Connector
Cooling:
Convection-Cooled
Ambient Temperature:
-40°F to 104°F (-40°C to 40°C)
Humidity:
95% noncondensing
| Brand | BIRD Electronics |
|---|
