FlightHawk Aviation RF & Antenna Analyzer | Basic Kit
$8,459.00
The FlightHawk™ RF Aviation Basic Test Kit offers rapid and accurate testing of multiple antenna cable systems in complex airframe systems. This cable and antenna analyzer allows maintenance technicians with commissioning, maintaining, and faulting-finding of ground-to-air radios, airborne radios, repeaters, antennas, antenna combiners and transmission cables. The FlightHawk Basic’s easy-to-software makes it simple for maintenance personnel to verify all radio systems in a fleet. The Frequency Domain Reflectometer (FDR) function tests and verifies antenna cables in the antenna systems in both individual and complete systems.
Features
Kit Includes:

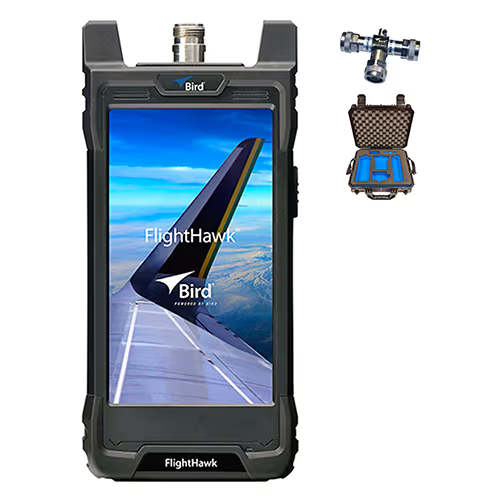

- FlightHawk-AV, Cable and Antenna Analyzer
- SK-CAL-MN-C6, Calibration Combo
- Hard Carrying Case
Features:
- Test RF cables & antennas at the frequency of operation
- Locate RF cable, connector & antenna problems at the source
- FDR (Frequency Domain Reflectometry) measurement method results in a highly reliable assessment of the health of critical components in your system; ultimately providing a “heads-up” before a failure occurs
- Fault location or DTF mode plots VSWR or Return Loss levels at each distance point along the cable and antenna system length
- Cable Loss function measures insertion loss of the cable system over a given frequency range
- OTG USB communication port for connection to Bird power sensors, storage devices and battery charging
- Aviation RF Cable & Antenna Analyzer
- FDR trace of precision return loss vs. frequency
- Return loss vs. distance
- Voltage standing wave ratio( VSWR)
- Cable loss and distance-to-fault (DTF) measurements
Specifications
Weight:
1.98 lb (0.9 oz)
Dimensions:
7.7 x 3.6 x 2.4 in (195 x 90 x 60 mm)
Temperature:
14 °F to 131 °F (-10 °C to 55 °C), operating
-40 °F to 176 °F (-40 °C to 80 °C), storage
Battery Charging Temperature:
32 °F to 95 °F (0 °C to 35 °C)
Display:
5.5 in @ 720p
Supported Languages:
English, Chinese, Spanish
Battery Type:
rechargeable lithium-ion
Battery Operating Time:
10 hr, typical
Battery Charge Time:
5 hr, typical
Storage Capacity:
thousands of trace and setups
Recommended Calibration Interview:
2 years
Connector Type:
USB type-C, USB 3.0
Test Port Connector:
N-type, female @ 50Ω
Frequency Range:
1 MHz — 6,000 MHz (at 1 KHz resolution)
Output Power:
-10 dBm, typical
Trace Noise Magnitude (IFBW 1kHz):
0.05 dB, rms
Measurement Speed:
1 ms/datapoint
Measurement Points:
51 — 3,201
Measurement Bandwidth:
100 Hz — 30 KHz
Temperature Stability:
0.01 dB/°F (0.02 dB/°C)
Return Loss Measurement Range:
0 dB to -60 dB
Resolution:
0.01 dB
VSWR Measurement Range:
1.0 to 65.0
Cable Loss Measurement Range:
0 dB to 30 dB
DTF Range:
0 ft — 5,000 ft (0 m — 1,500 m)
Corrected Directivity:
> 38 dB
Maximum Input Voltage:
50V
Immunity to Interfering signals:
+13 dBm
Power Measurement:
yes
