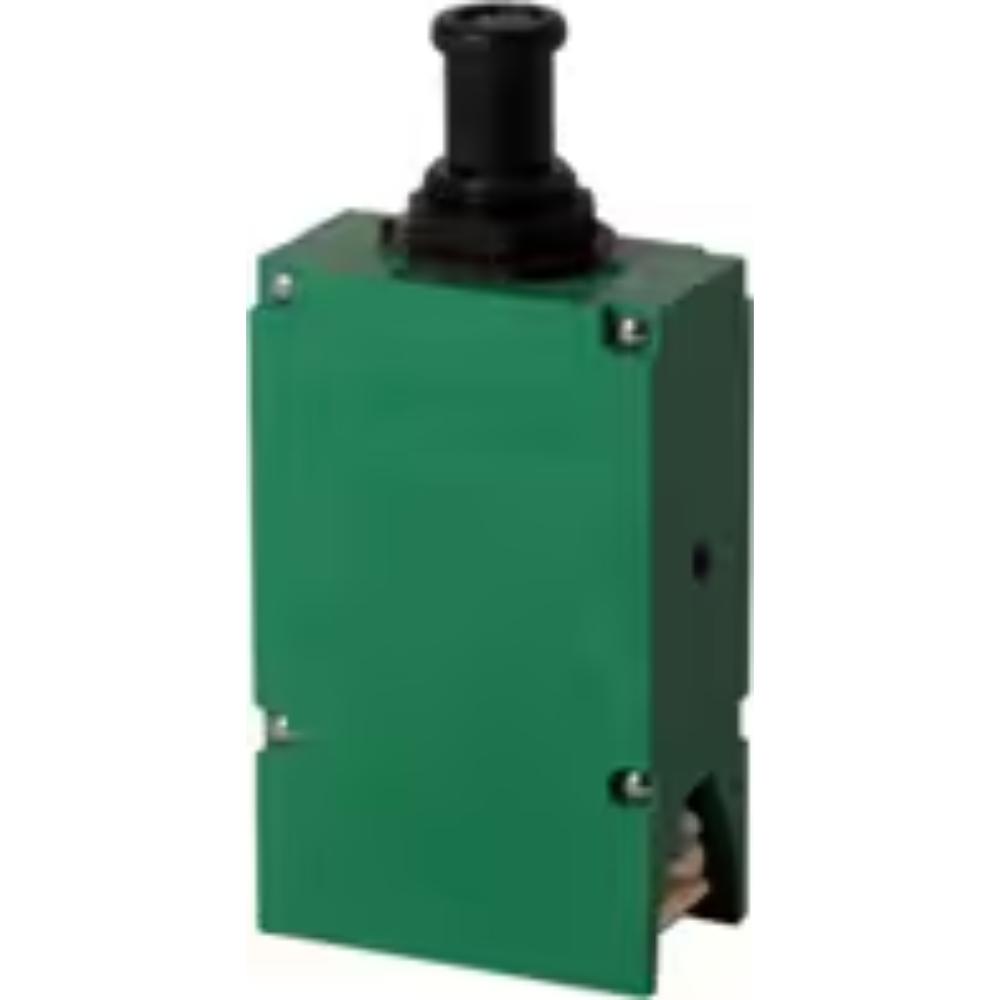

5TC50 Series Circuit Breaker | 50 Amp Rating
$726.23
Klixon® 5TC50 single–phase TC devices are the smallest, lightest, high performance aircraft circuit breakers available today. They represent the state-of-the-art protection of today’s aerospace power systems. Their light weight and small size make them especially well suited for aircraft, avionics and electronic systems. The 5TC50 breaker rating is coordinated so it will trip before another circuit breaker, twice its rating, in the event of a fault of up to 600 amps let through current. This results in improved overall equipment performance, since only the smallest faulted circuit is interrupted, while larger circuits remain operational.
Includes hardware.
Features
- This 5TC50 series circuit breaker is rated for 50 amps.
- Miniature size
- Light weight
- Single–phase
- Ambient compensated
- Trip–free design
- Coordinated ratings
- High vibration resistance
- High interrupting capacity
- Options include: standard or auxiliary switch configuration, terminal barriers
- Typical use: Aircraft, avionics and electronic systems
Specifications
-
Weight: Standard device: 53 grams (no hardware) 58 grams (hardware) Auxiliary device: 55 grams (no hardware), 59 grams (hardware)
-
Specification Current Rating: 50 amps
-
Dimensions: 34 x 19.5 x 72 mm, maximum
-
Vibration: 10G minimum, 80–500 Hz (other vibration levels available)
-
Mechanical Shock: 50G
-
Corrosion: salt spray 48 hours
-
Humidity: 10 days
-
Interrupt Current: 20–50 amps: 4000 amps at 28 VDC 20–50 amps: 2000 amps at 115 VAC, 400 Hz
-
Endurance: 115 VAC: 400 Hz (inductive): 2500 cycles 28 VDC: resistive: 2500 cycles / inductive: 2500 cycles Mechanical: no load: 5000 cycles
-
Calibration: 20A – 60A
-
Voltage Drop: 0.120 V, max. for 40A – 60A circuit breakers 0.150 V, max. for 20A – 35A circuit breakers
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand |
Klixon |
