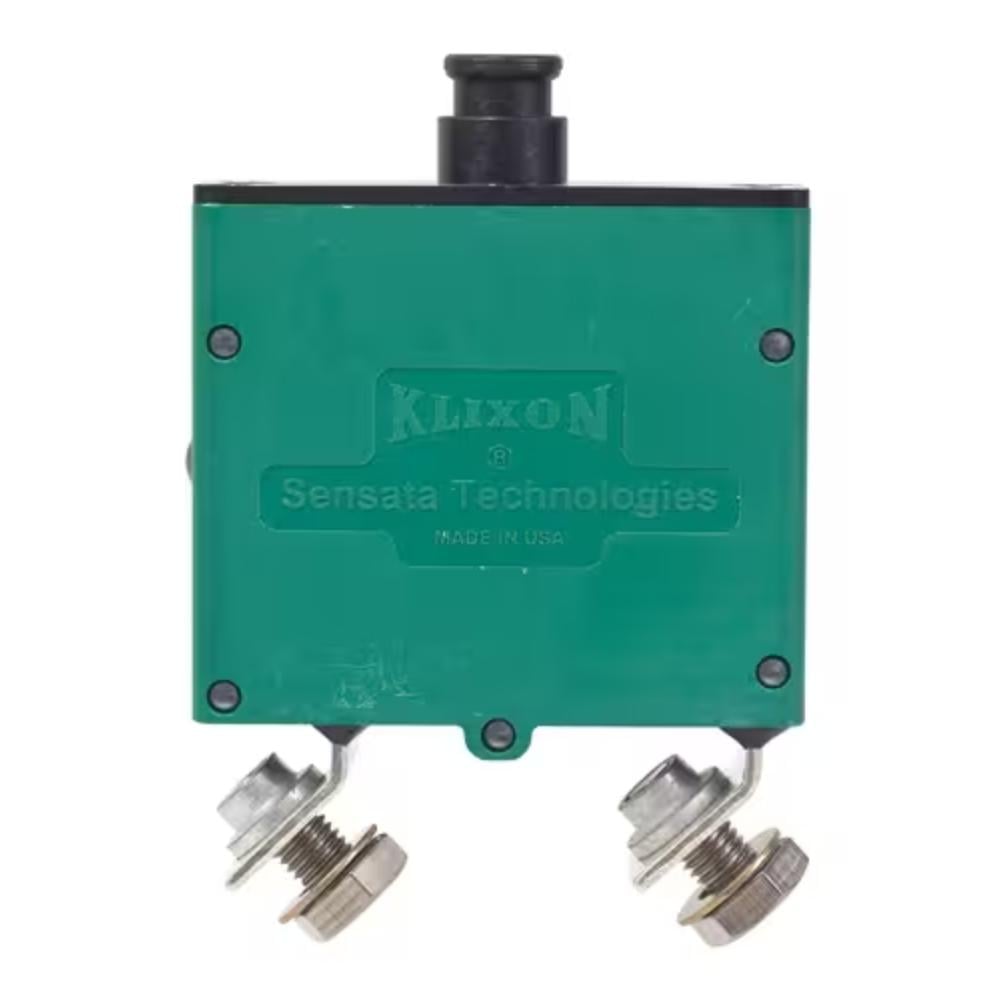

6752-100 Series Circuit Breaker | 90 Amp Rating, Push Button

The 6752-100 series thermal–magnetic circuit breakers are designed and manufactured to meet stringent military standards with the reliability of the 6752 design. These circuit breakers feature a single pole, push button switch design.

The 6752-100 is similar to the 6752-12 in size, with higher interrupting capacity, vibration resistance and longer cycling life. In addition, the 6752-100 series provides ambient compensation, fault coordination of all ratings and an option for auxiliary circuits.

Includes hardware.

Features

• This 6752-100 series circuit breaker (EDMO# 6752100-90) is rated for 90 amps.
• Current ratings: 50–100 amps
• Proven reliability and performance of the 6752 series circuit breaker
• Trip–free design
• Circuit protection unaffected by temperature fluctuations
• MIL-C-5809 qualified
• Ambient compensated
• High vibration resistance
• High interrupting capacity: 6,000 amps
• Typical use: Military

Specifications

• Weight: 0.25 lbs (114 gm) max
• Specification Current Rating: 90 amps
• Vibrations: 10 G’s minimum, 50-2000 Hz
• Mechanical shock: 30G
• Acceleration: 10G
• Endurance: 5,000 cycles: 120 VAC. 400 Hz, inductive 5,000 cycles: 120 VAC 400 Hz, resistive 5,000 cycles: 28 VDC, inductive 2,500 cycles: 28 VDC, resistive 5,000 cycles: Mechanical, no load
• Specification Mounting: Screw terminals and neck mounting
