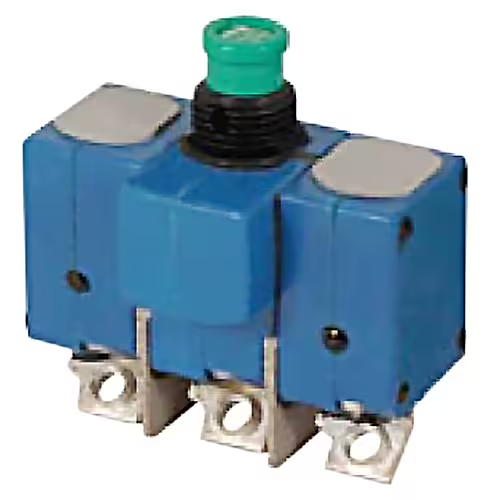

6TC14 Series Circuit Breaker | 2 Amp Rating
$2,063.10
The 6TC14 Series ambient compensated circuit breakers provide a three-phase design in a lightweight and miniature package. The three-phase design integrates each individual phase to provide over current protection in the event of simultaneous or unbalanced overloads including short circuit protection. The 6TC series are compatible with the single phase 2TC and 3TC counter parts. The 6TC circuit breakers are available in ratings from 1 amp to 35 amp with military and commercial approval on most styles.
Includes hardware.
Features
- This 6TC14 circuit breaker (EDMO# 6TC14-2) is rated for 2 amps.
- One phase trips all design
- Protective shielding between each phase terminal
- Pads for increased mounting security
- Ambient temperature compensation
- Trip-free design
- High short circuit capacity
Specifications
-
Weight: 65 g, max.
-
Dimensions: 1.8 x 1.218 x 1.1 in, max.
-
Specification Current Rating: 2 Amps
-
Vibration: 10G, minimum (50Hz – 500Hz)
-
Mechanical Shock: 50G
-
Acceleration: 10G
-
Interrupt Current: 2A – 20A: 2000A at 120 VAC, 400 Hz 15A – 35A: 2000A at 120 VAC, 400 Hz
-
Endurance: 2500 cycles: 120 VAC, 400 Hz (inductive) 5000 cycles: 120 VAC, 400 Hz (resistive) 5000 cycles: mechanical, no load
-
Qualifications: MS14154
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand |
Klixon |
