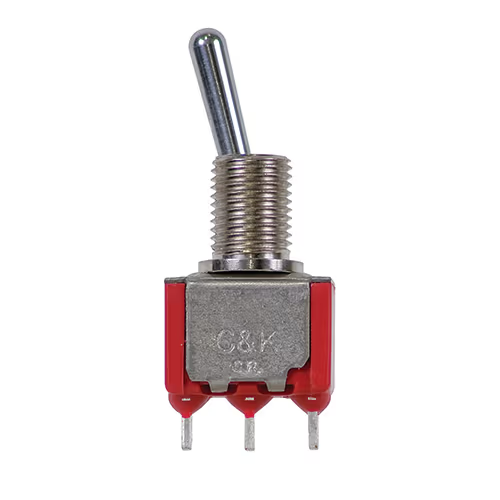

7000 Series Miniature Toggle Switch | SPDT, ON(MOM)-OFF-ON(MOM)
$11.94
The 7000 series miniature toggle switch has silver contact solder lug terminations. The threaded bushing is designed for panel mount installations with 1/4″ opening.
This version is a single-pole double-throw miniature toggle switch. Positions: ON(momentary)-OFF-ON(momentary)
Features
- Threaded panel mount
- 10mΩ at 2 to 4VDC Initial contact resistance
- 10⁹Ω Minimum insulation resistance
- 1000VRMS at sea level Minimum dielectric strength
- Epoxy terminal-seal compatible with bottom wash cleaning
- RoHS Compliant
- Life: 100,000 make-and-break cycles at full load
Specifications
Bushing:
1/4-40 UNS-2A
Temperature Range:
-22ºF to 185ºF (–30ºC to 85ºC)
Contact current max:
5A
Contact Voltage AC:
115V nominal
Contact Voltage DC:
28V
Contact Configuration:
Single-pole, double-throw (SPDT)
Switch Operation:
ON(MOM)-OFF-ON(MOM)
| Brand | C & K Components |
|---|
