Cessna ETX900-TSO-25-KIT
$225.00
Installation kit for the ETX900-TSO battery. This kit DOES NOT INCLUDE the battery. Used for replacing a Concorde or Gill 25 Ah battery.
The picture of the kit is for illustrative purposes.
You may not use all the pieces in the kit;
no left over parts can be returned.
Kits are non-returnable!
13
Items sold in last 13 days
7
People watching this product now!
Description
What’s included:
KIT Parts List
| Item | Qty | Part Number | Part Description |

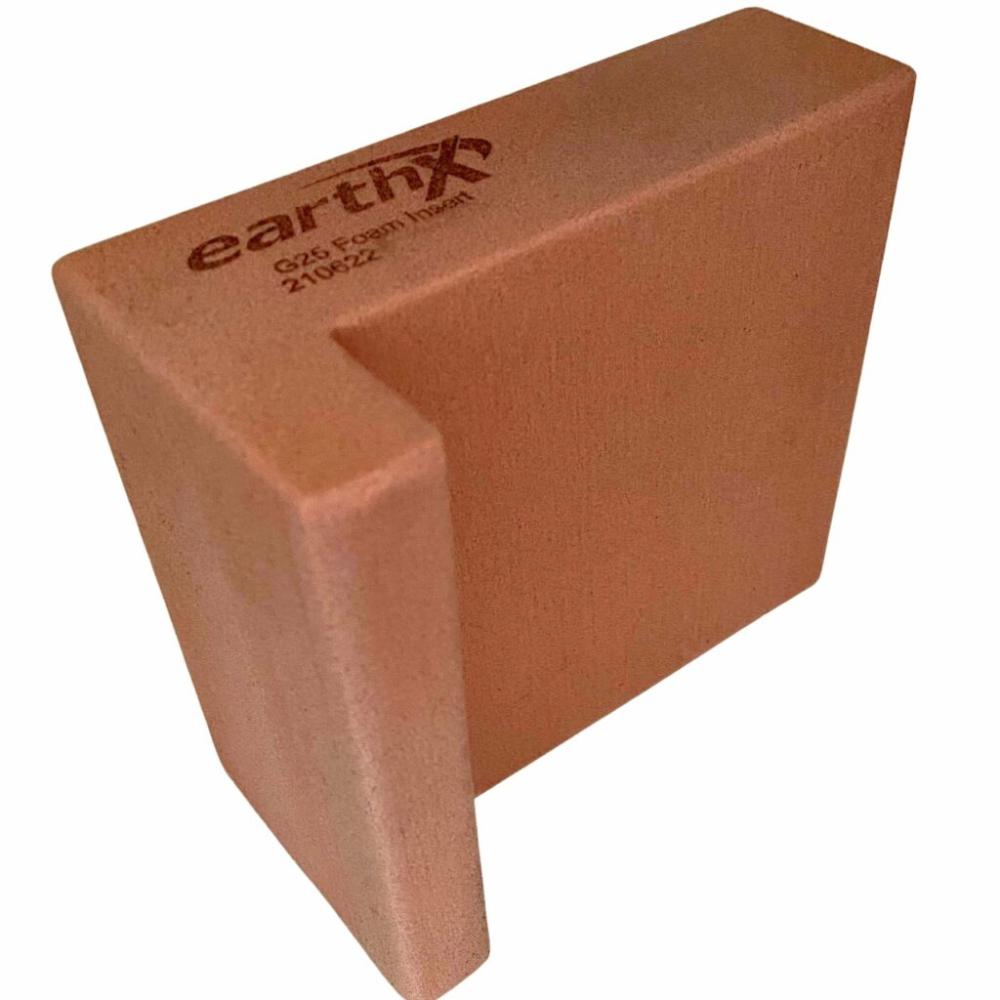

| 1 | 1 | 210622 | 25 Ah Battery Box Insert |
| 2 | 1 | 11MM12 | MIL Spec Amber 12 Volt LED |

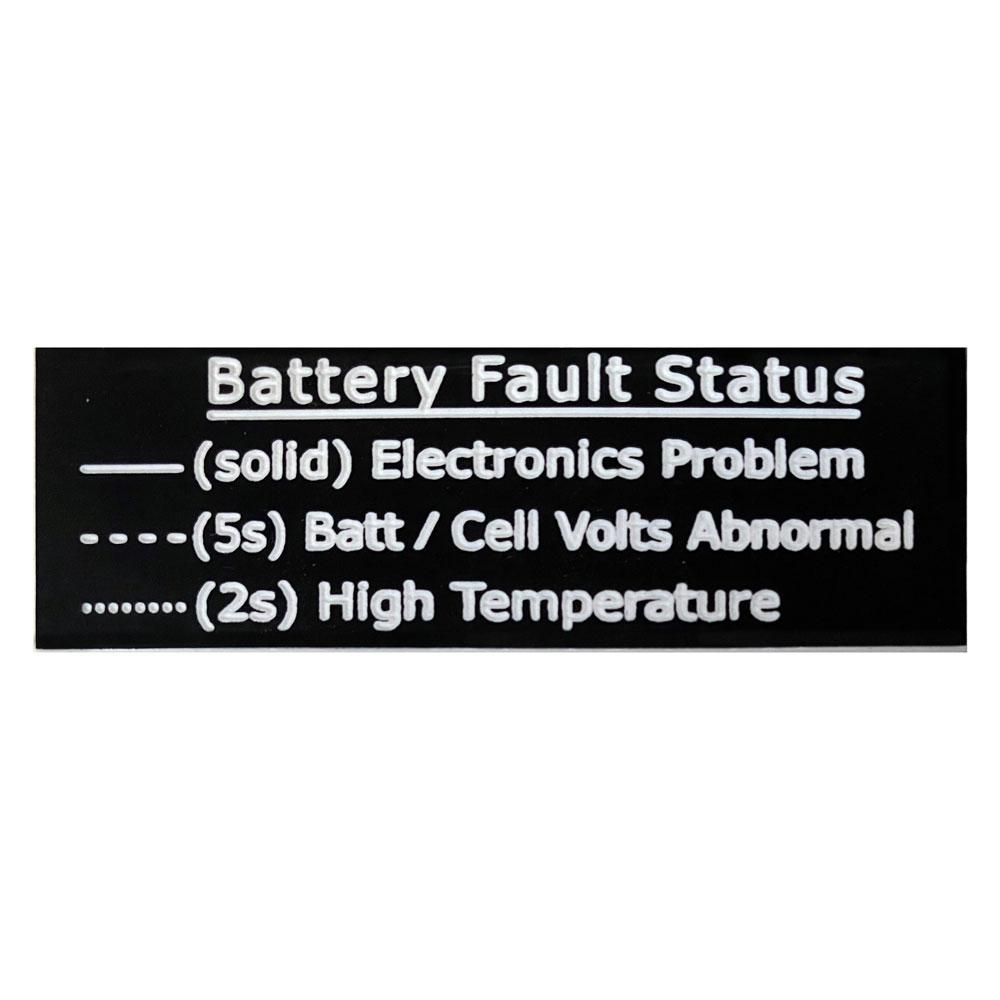

| 3 | 1 | 200208 | Fault Indicator Placard |

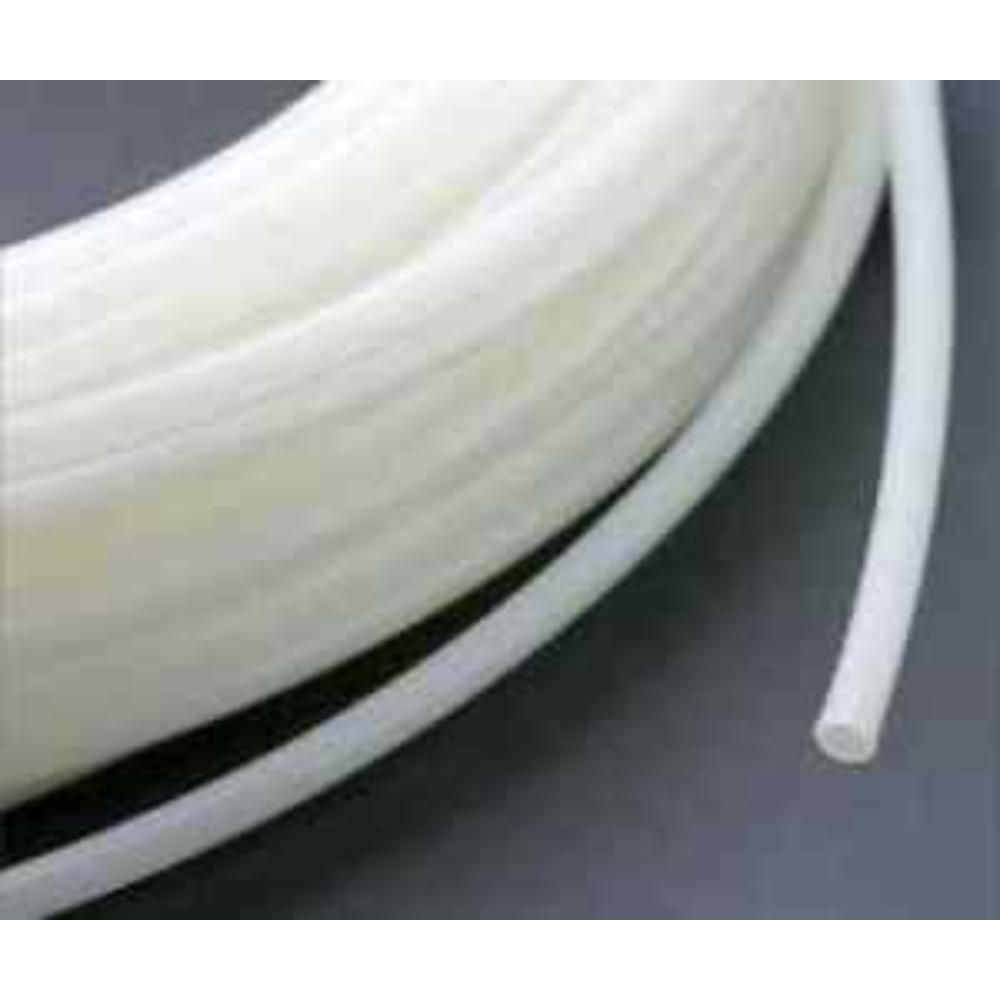

| 4 | 2ft | 5239K15 | 3/8” Teflon Tubing |

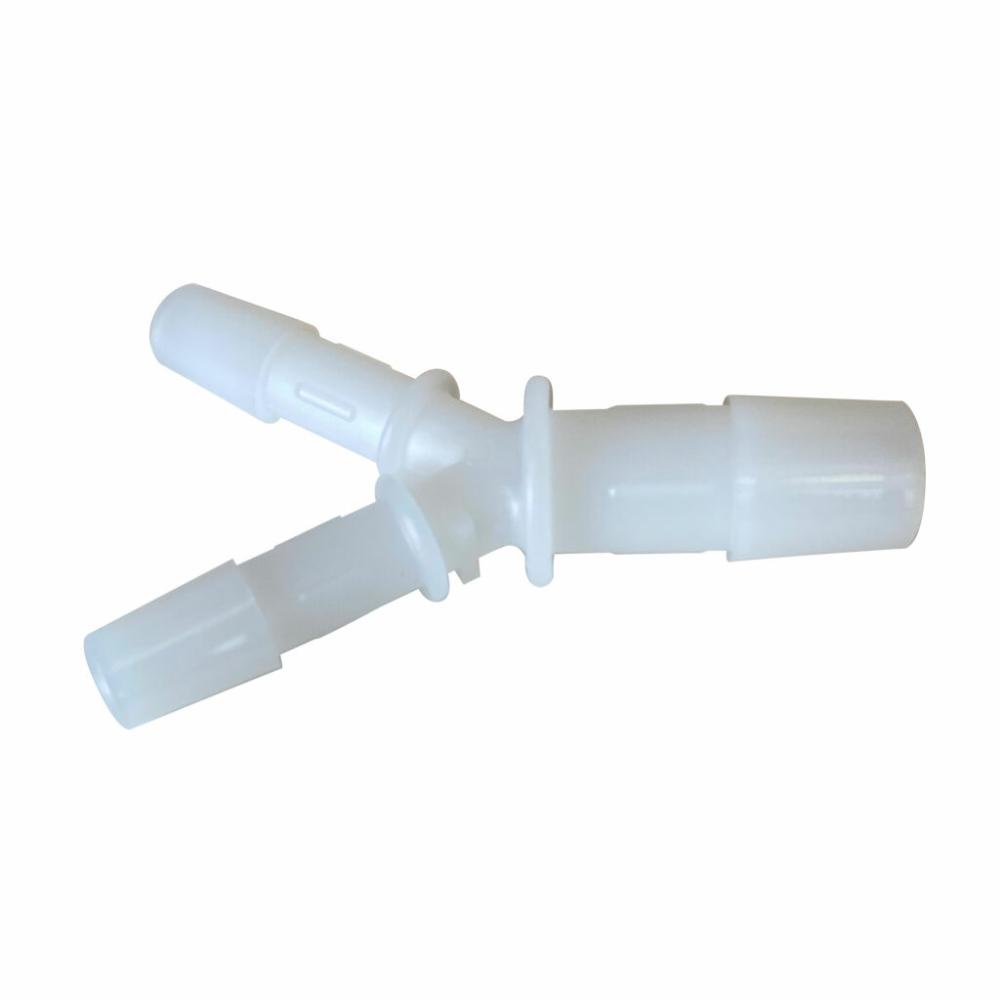

| 5 | 1 | 5463K722 | 3/8” Wye Tube Fitting |
| 6 | 2 | 9600K313 | 1/4”ID 3/8” OD, 1/16” Panel Grommet |
| 7 | 1 | 9600K316 | 3/8”ID 9/16” OD, 1/16” Panel Grommet |
| 8 | 2 | 5670K18 | 90 Degree 3/8” SS Elbows |
| 9 | 2 | 5670K17 | 90 Degree ¼” SS Elbows |
| 10 | 3ft | 5239K13 | 1/4” Teflon Tubing |
| 11 | 1 | 5324K54 | Spring Clamp |
| 12 | 1 | 220707 | Quick Reference Guide |
Additional information
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 0.1 × 0.1 × 0.1 in |
| Brand | EarthX Batteries |
| Aircraft Model | 120, 140, 150, 150A, 150B, 150C, 172, 172A, 172, 172B, 172C, 172D, 172E, 172F, 172G, 172H, 172I, 172K, 172L, 172M, 172N, 175A, 175B, 175C, P172D |
