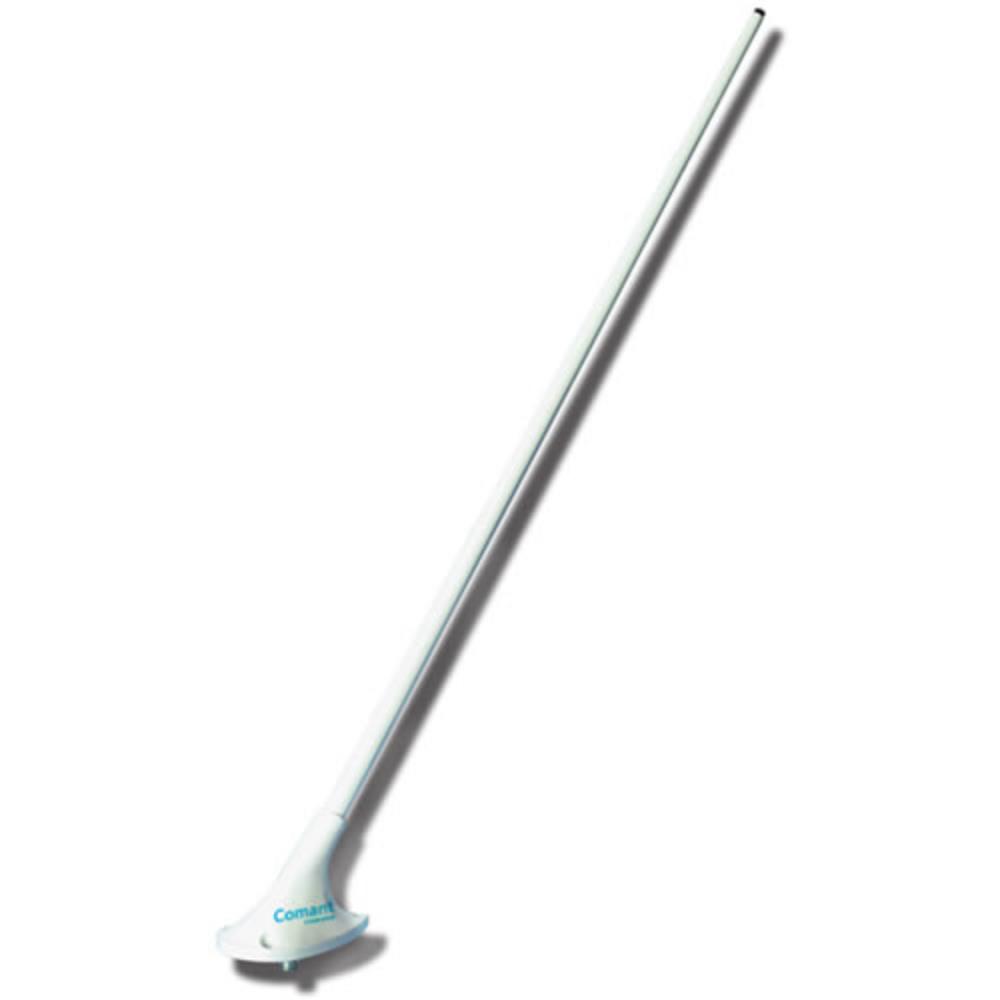

CI 175 VHF Rod Antenna | 118-137 MHz, 3 Hole Mount
$513.68
The CI 175 is a high strength whip antenna designed as an improved direct replacement for the standard Cessna three-hole mounting configuration. This antenna can be used with single piston aircraft. The CI 175 has been updated to the new RTCA DO-160D environmental requirements.
The CI 175 is a high strength VHF rod antenna designed as an improved direct replacement for the standard Cessna 3-hole mounting configuration. The CI 175 has been re-tested and upgraded to the new RTCA DO-160D environmental requirements and offers the 118 to 137 MHz frequency associated with DO-160D.
Features
- Frequencies Covered:Â 118-137 MHz
- Upgraded to the new RTCA DO-160D environmentalrequirements
Specifications
Weight:
0.5 lb Max.
Height:
18.75 in Max.
Frequency:
118-137 MHz
VSWR:
2.5:1 Maximum
Polarization:
Vertical
Radiation Pattern:
Omnidirectional
Impedance RF:
50Ω
Power RF:
50 W
Material:
Cast housing / Fiberglass
Finish:
Polyurethane Enamel
Connector:
BNC (female)
Temperature:
-55°C to +85°C
Altitude:
50,000 ft
Air Speed:
250 Knots TAS
Federal Specifications:
FAA TSO C37d, C38d
RTCA Environmental DO-160D
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 0.1 × 0.1 × 0.1 in |
| Brand | Comant |
