Cub Crafters STC Kit ETX900-TSO-CUB-KIT
$295.00
Approved STC installation kit to be used with corresponding STC Aircraft approval for CC18-180, CC18-180A, CC19-180 and CC19-215. This kit is for the ETX900-TSO battery. This kit DOES NOT INCLUDE the battery.

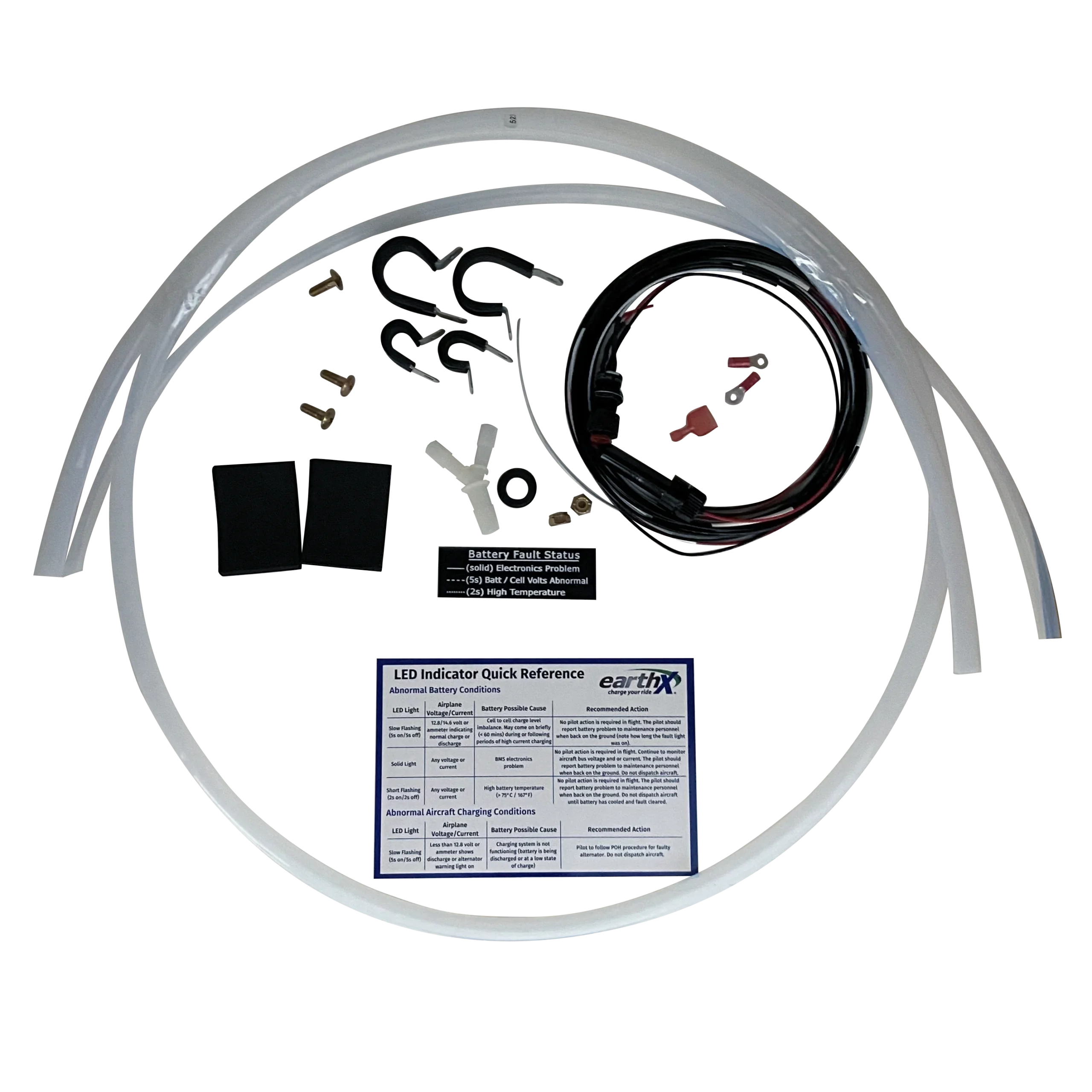

The picture of the kit is for illustrative purposes.
You may not use all the pieces in the kit;
no left over parts can be returned.
Kits are non-returnable!
What’s included in Cub Crafters STC Kit:
KIT Parts List:
| Item | Qty | Part Number | Part Description |
| 1 | 1 | 11MM12 | MIL Spec Amber 12 Volt LED (MS25041-4) |
| 2 | 1 | 200208 | Fault Indicator Placard |
| 3 | 2ft | 5239K13 | 1/4” Teflon Tubing |
| 4 | 6ft | 5239K15 | 3/8” Teflon Tubing |
| 5 | 1 | 5463K722 | 3/8” Wye Tube Fitting |
| 6 | 1 | 9600K316 | 3/8”ID 9/16” OD, 1/16” Panel Grommet |
| 7 | 2 | MS21919-DG6 | Adel Clamp 3/8” |
| 8 | 2 | MS21919-DG12 | Adel Clamp 3/4” |
| 9 | 2 | AN365-1032A | 10-32 Lock Nut |
| 10 | 3 | AN525-10R9 | 10-32 Machine Screw |
| 11 | 2 | 230607 | EPDM Foam ¼”x1 ½”x2” |
| 12 | 1 | 220707 | Quick Reference Guide |
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 0.1 × 0.1 × 0.1 in |
| Brand | EarthX Batteries |
You must be logged in to post a review.
SHIPPING INFORMATION
We can ship by UPS, or USPS and DHL Express. We ship nationally, and internationally.
Carriers In Use
SHIPPING COSTS
- International Shipping Quote has to be done manually due to dimensions, weight, end destination, and more. Please E-Mail us.
- Any manner or method is available, call if you need Priority 1-2 day or overnight shipping.
- We are shipping with UPS or USPS and DHL Express
Related products
ETX900-TSO-35-M20-KIT
What’s included:
- 1 x Panel mount LED (11MM12)
- 1 x Battery Box Spacer (211215)
- 1 x Fault Indicator Placard (200208)
- 1 x 3/8″ Tubing (5239K15)
- 3 x 1/4″ Tubing (5239K13)
- 1 x 3/8″ Wye Tube Fitting (5463K722)
- 1 x 3/8″ ID 9/16″ OD, 1/8″Grommets (9600K86)
- 1 x 3/8″ ID 9/16″ OD, 1/16″ Grommets (9600K316)
- 1 x Battery Cable (BA2-38-2)
BB-TH-CO Thermal Battery Box “C” Case
Thermal battery box to protect from radiated or convection heat. Compatible with our existing “C” case battery models; ETX680C.
The EarthX thermal battery box is designed to protect the battery in engine compartment installations from periods of high temperature (up to 1 hour), such as after shutdown, and from radiant heat from hot surfaces like exhaust systems during and after flight. This stainless-steel box has a mirror finish to minimize the effect of radiant heat, and it has a high-performance insulating foam layer between the box and battery to reduce effect of convection heat. This battery box was engineered to be strong enough to withstand 30 G of force yet only weighs .375Kg or 13.2oz.
All batteries have optimal temperature ranges for use in operation. The ETX-Hundred series is rated for 140 deg F ( 60 deg C) or less for optimal longevity and performance of the battery. Typical lead acid batteries are rated to 113 deg F or 45 deg C.
Vent Port Kit
This kit includes includes machined aluminum vent port, washer and nut to make the installation of a vented EarthX battery easy and professional looking. This vent port is designed for our ETX900-VNT battery. This custom machined port is designed to accept the ETX900’s ¼” O.D. vent tubes. The port is an anodized aircraft aluminum. The two vent tubes easily connect to the port with a “push-to-connect” connection like most small diameter tube fittings on the market today.
This port can be incorporated into most new or existing aircraft builds, making a clean, low profile finish.
Hole size required in aircraft skin for port is 1 1/8”.
BB-CU Custom Light Weight Battery Box For “E” Case
This custom designed battery box will fit your battery like a glove and is super easy to install. Designed aluminum battery box for the ETX680/ETX900/ETX900-VNT/ETX1200. This battery box was engineered to be strong enough to withstand 30 G of force yet only weighs .2Kg or 7.2oz. This unique design allows for simple, easy installation with the dimensions: 6.5″ L x 3.1″ W x 6.6″ H.
Adapter-CDE (Terminal Adapters Designed For C, D, And E Cases)
This terminal adapter kit comes with 2 brackets and 2 screws for the positive and negative posts with the standard size of 6mm and makes for an easy installation when your motor sports vehicle requires a side or front mounted battery cable versus top mounting. Fits all C, D, and E cases.
Comes included with the following batteries: ETX24C, ETX36C, and ETX36D, ETZ14C.
