BB-HDB Hold Down Bracket for “E” Case
$69.00

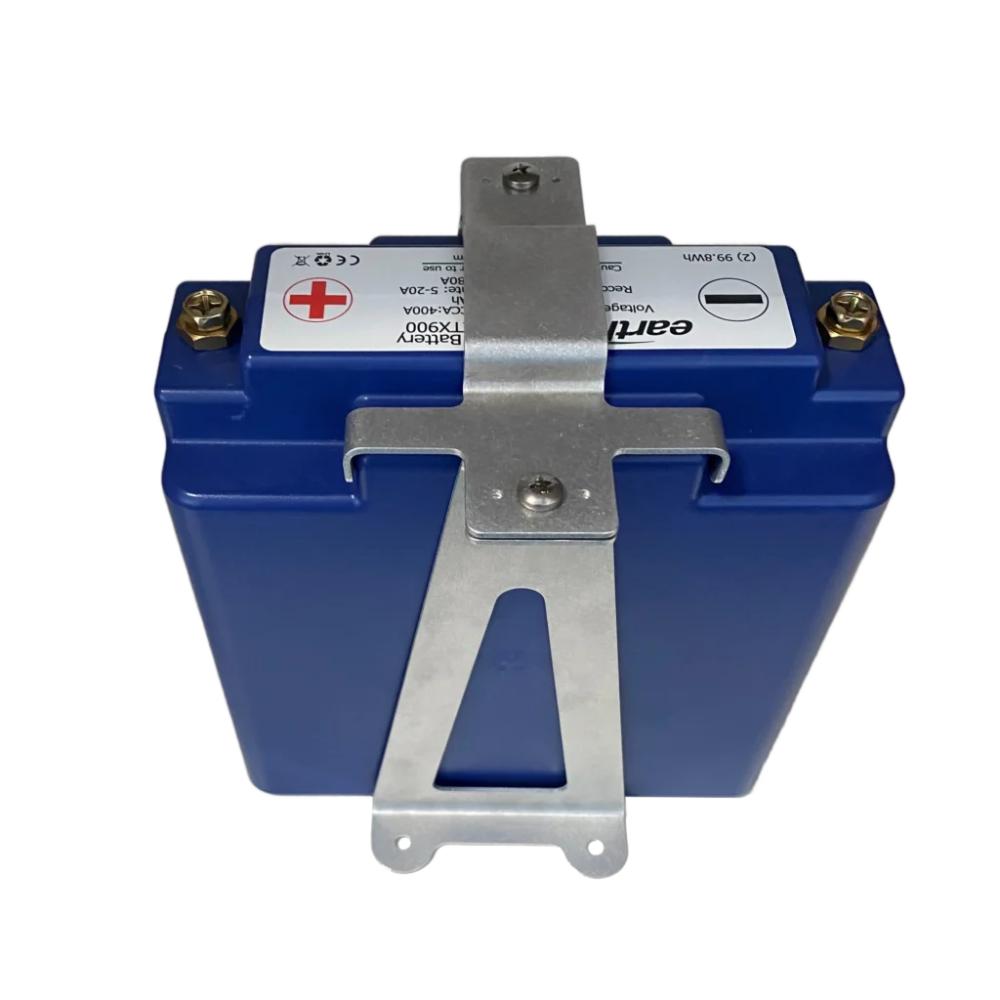

This is a custom fit designed hold down bracket for floor mounting of the battery for the ETX680, the ETX900, ETX900-VNT , or the ETX1200 battery.

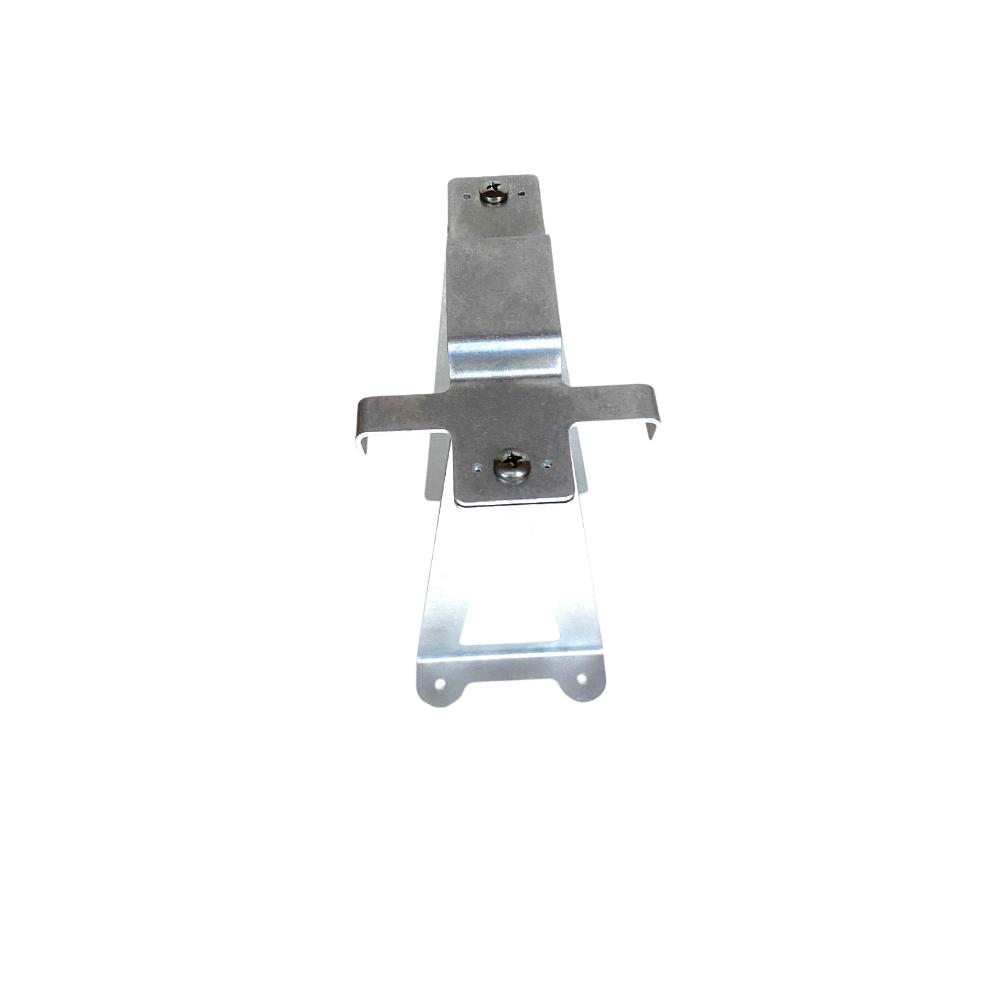

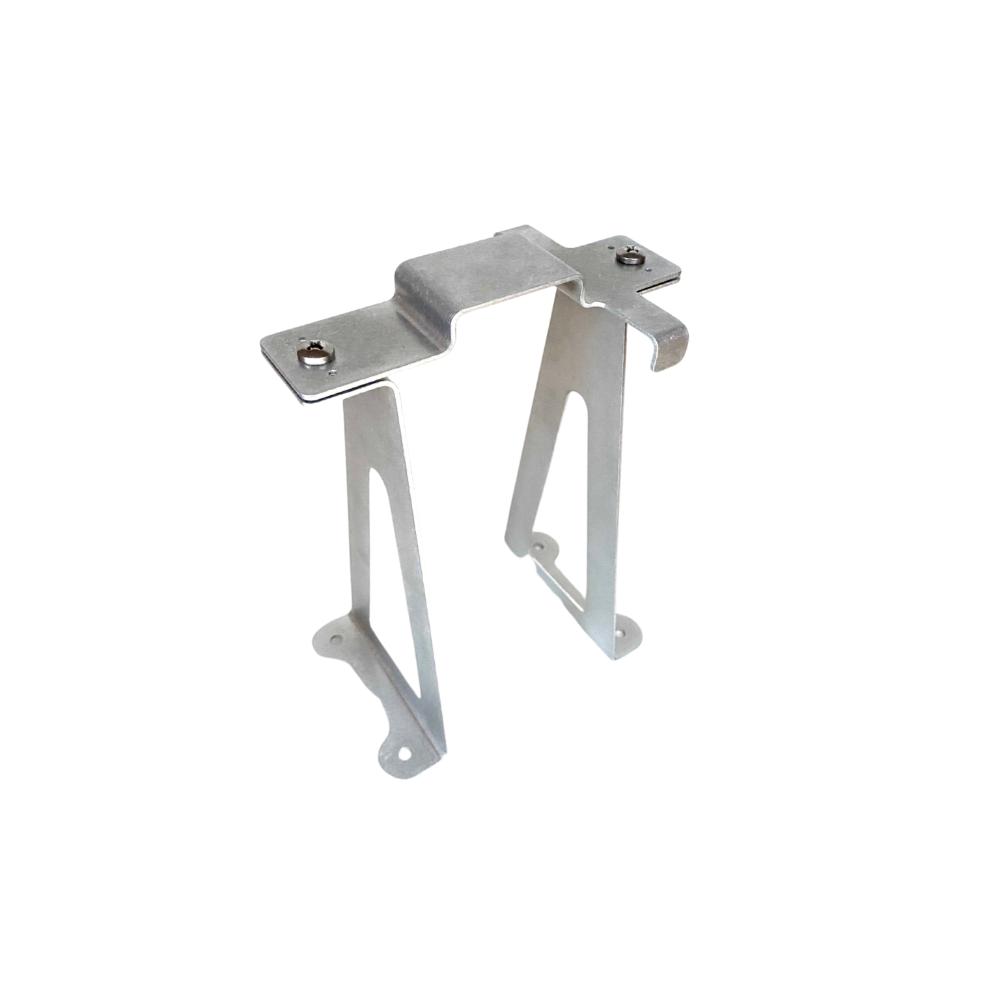

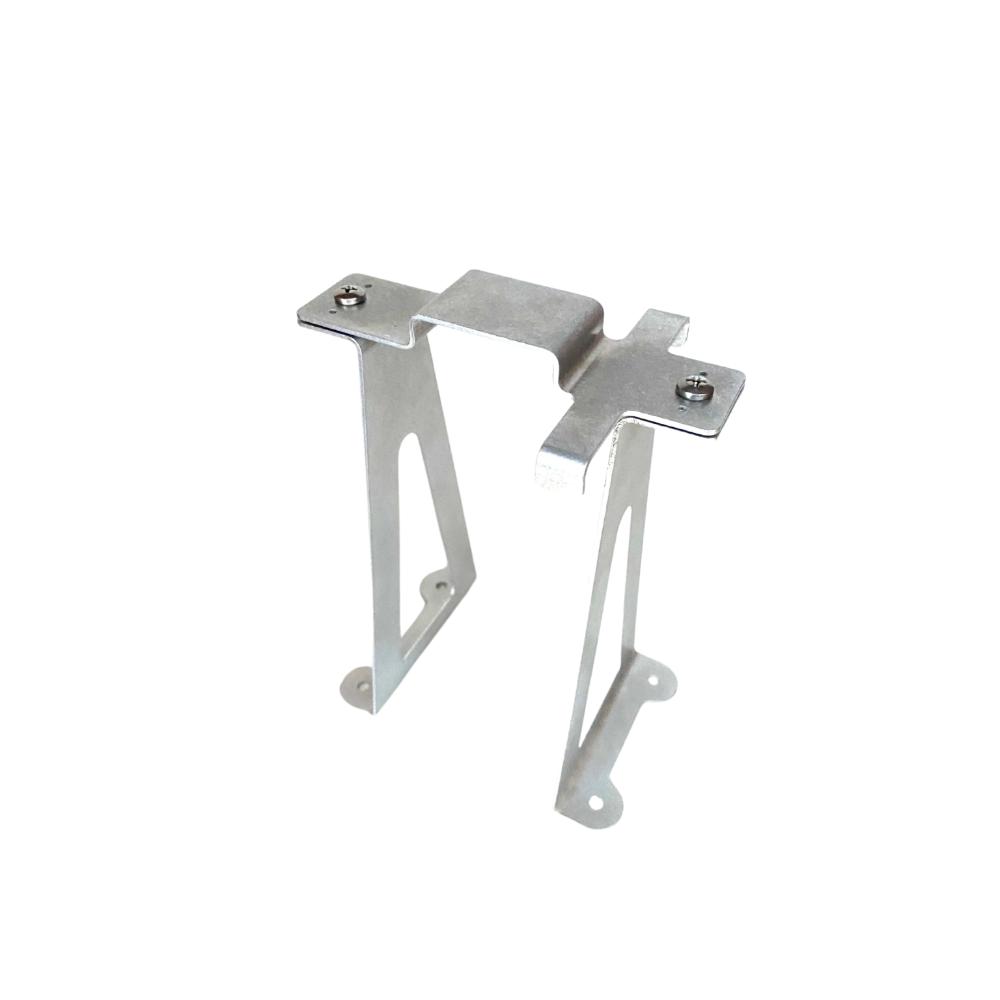

This is a custom fit designed hold down bracket for floor mounting of the battery for the ETX680, the ETX900, ETX900-VNT , or the ETX1200 battery. This battery bracket has a removable top hold down tab. This allows the battery to be removed from the top or the side for easy installation and/or removal. This floor mount bracker is extremely light weight. It is made of aluminum, weighing a couple ounces only, yet can handle 20G’s of force in any direction. Excellent choice for a Van’s RV10 aircraft.
What’s included:
- 1 x top front removeable hold down tab
- 2 x side wall brackets
- 2 x screws
Battery Box Selector
| Material | Battery Size | Flanges | Battery Removal | |
|---|---|---|---|---|
| BB-CO2 | Lightweight aluminum | Fits “C” case (ETX680C) | Inward facing | Top or Front |
| BB-TH-CO | Mirrored steel with insulating foam | Fits “C” case (ETX680C) | Outward facing | Top only |
| BB-CU | Lightweight aluminum | Fits “E” case (ETX680/900/900-VNT/1200) | Outward facing | Top only |
| BB-MU2 | Lightweight aluminum | Fits “E” case (ETX680/900/900-VNT/1200) | Inward facing | Top or front |
| BB-TH | Mirrored steel with insulating foam | Fits “E” case (ETX680/900/900-VNT/1200) | Outward facing | Top only |
| BB-HDB | Lightweight aluminum | Fits “E” case (ETX680/900/900-VNT/1200) | Outward facing, floor mount | Top or Front |
| BB-U | Lightweight aluminum | Fits “U” case (ETX680-24-VNT/900-24/1600) | Inward facing | Top or front |
| BB-TH-U | Mirrored steel with insulating foam | Fits “U” case (ETX680-24-VNT/900-24/1600) | Outward facing | Top Only |
| ETX680-24-HDB | Steel | Fits “U” case (ETX680-24-TSO/VNT, ETX900-24) | No Flange | Top or Front |
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 0.1 × 0.1 × 0.1 in |
| Brand | EarthX Batteries |
