DC Fuel Flow to Frequency Converter

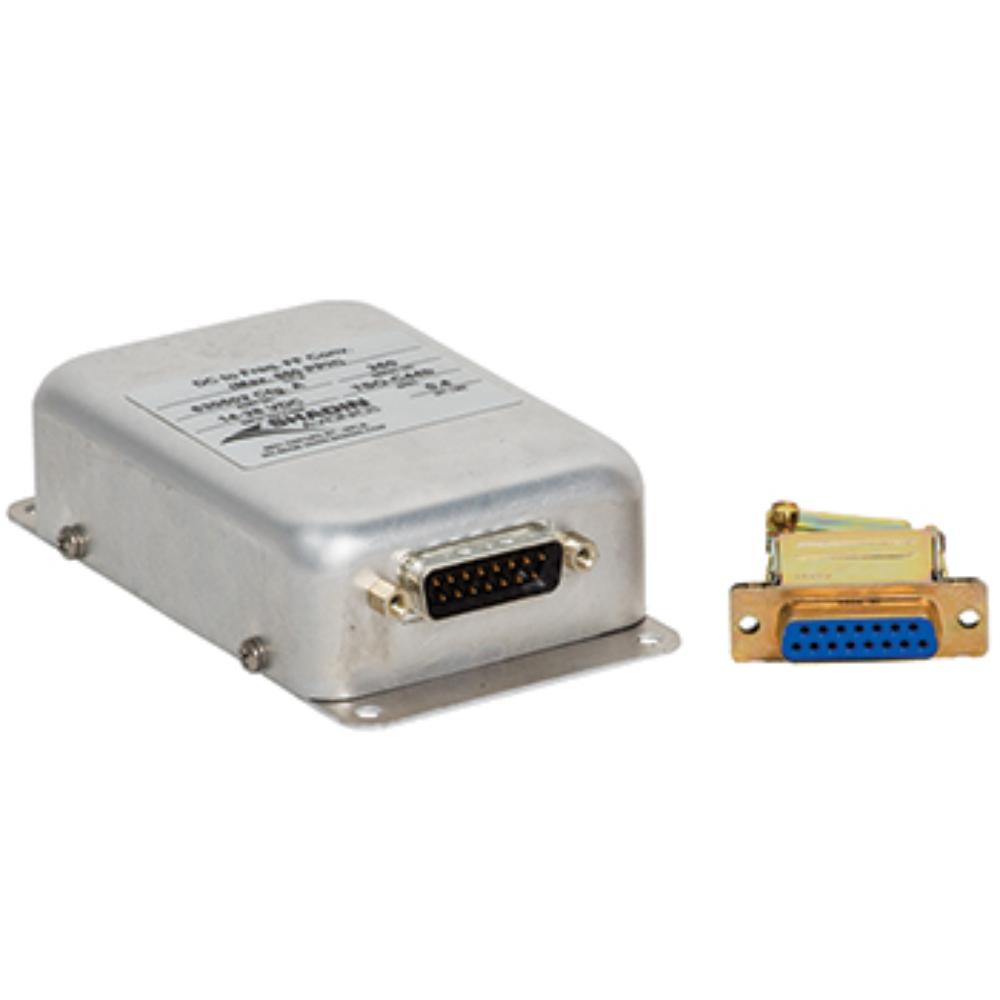

The DC Fuel Flow to Frequency Converter (630502) is designed to receive the analog Fuel Flow (FF) signal in the form of a DC voltage and produce a digital output signal with a frequency proportional to the FF signal. The digital output represents the engine fuel flow and is available for use by a standard fuel management system.

Part 630502 includes an install kit.

Specifications

Weight:
0.4 lb

Dimensions:
2.4 x 4.3 x 1.15 in

Power Supply Voltage:
+14 to +28 VDC

Supply Current:
70 mA at 28 VDC

Protection:
Not internally fused

DC Input Voltage Range:
0-10 V

Input Impedance:
>100 MΩ

Digital Frequency signal output:
VOL < 0.8 V / IMAX = 15mA
VOH = 5V / IMAX = 0.5mA
Pulse Width (VOL)- 0.4 ms
Max. Frequency, VIN = 10 V / 1,221 Hz

Operating Temperature:
-30ºC to +55ºC

Operating Altitude:
-1,000 to 55,000 ft

Certification:
TSO-C44b
