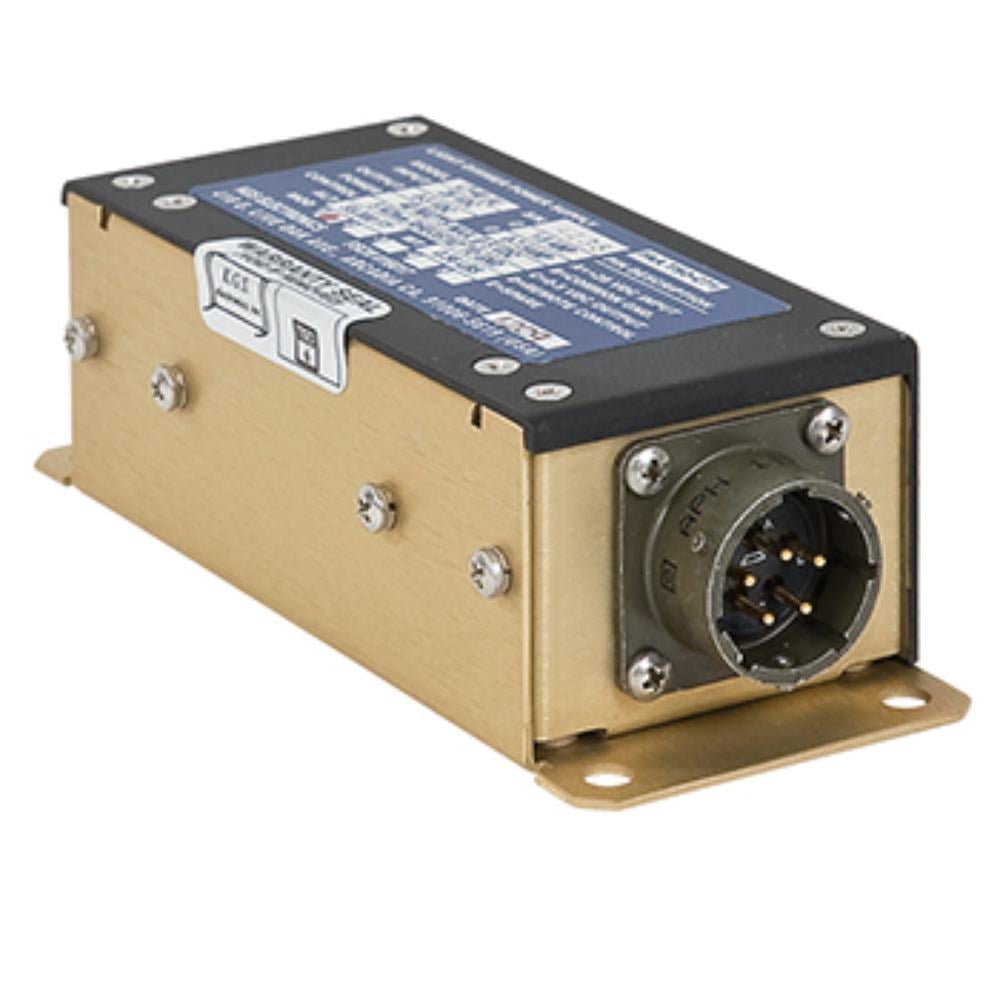

DC POWER CONVERTER/DC to regulated and controllable DC power converter, 37.5 watt. Input: 28 VDC, Output: 37.5 W, 0-5 VDC. TSO’d
The LT-48B is a pulse width-modulated DC to DC converter that provides regulated output power. This converter transforms an unregulated 28 VDC to regulated output power. The output voltage is adjusted via a remote control rheostat 5K ohm 1/2 W to ground. Fixed output and voltage control models are also available.
Call for Pricing
Contact Cost Aero at 855-500-3044 for pricing
The LT-48B is a pulse width-modulated DC to DC converter that provides regulated output power. This converter transforms an unregulated 28 VDC to regulated output power. The output voltage is adjusted via a remote control rheostat 5K ohm 1/2 W to ground. Fixed output and voltage control models are also available.
The LT-48B is primarily designed to control the light intensity of incandescent bulbs in aircraft lighting. The LT-48B are qualified to the FAA technical standards order (TSO-C71) for airborne static DC-DC electrical power converters.
Features
- State of the art design for regulation and positive logic for output overvoltage protection (PWM control topology).
- The LT-48B is serviceable, small and lightweight.
- Maximum output voltage is adjustable with an internal trim pot.
- Designed to meet MIL-STD 704 Cat. B, MIL-STD-810C and MIL-STD-461A.
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand | KGS Electronics |
