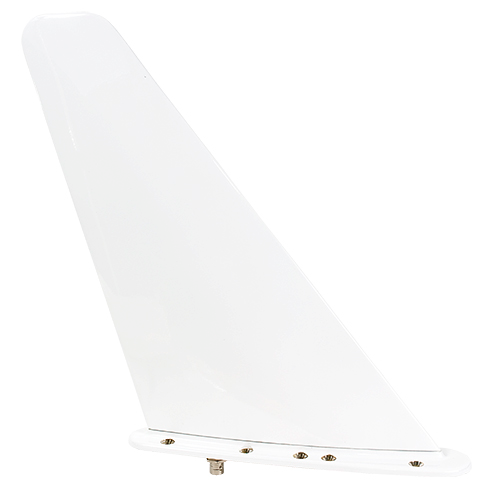

DM C50-17 VHF Blade Antenna | 116MHz–156HMz, Type C Female Connector
$6,709.10
The DM C50-17 VHF antenna features a design that provides enhanced corona threshold, corrosion protection, and drag resistance. The C50 series provides a lightweight and strong blade antenna at a lower cost for current commercial jet aircraft. The C50-17 antenna is chosen as original equipment for the Boeing 757, 767, and 777 aircraft, and can also be used on the Boeing 707, 727 737, 747; Douglas DC-8, DC-9, DC-10; Airbus A300 series and other aircraft.
Features
- Enhanced corona threshold
- Corrosion Protection
- Lightweight
- Drag reducing design
Specifications
Weight:
3.3 lb
Connector:
type C female
Frequency Range:
116 MHz – 156 MHz
VSWR:
2.0:1
Impedance:
50Ω
Polarization:
Vertical
Radiation Pattern:
Omni-direction (equivalent to a λ/4 stub
Power Handling:
1 KW CW
Approval:
TSO C37d & C38d
DO-160C cater F2-ABCXXFXXSXXXXXXXXXX
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 0.1 × 0.1 × 0.1 in |
| Brand |
Harris Corp. |
