DM N4-4 Navigation Antenna | 108–122MHz, Single Radiating Element
$3,962.90
The DM N4-4 navigation antenna is a true center-fed antenna which minimizes bearing errors when receiving VOR and ILS signals. The N4-4 provides considerably more gain at the horizon than fuselage mounted “”deer horn”” or “”vee”” antennas. Improved signal to noise ratio and reduced errors is due to the N4-4 greater discrimination against vertically polarized signals, and when properly installed on helicopters greater rotor modulation rejection is also provided. To obtain maximum performance, the installation location must be carefully considered.
The DM N4-4 navigation antenna is a true center-fed antenna which minimizes bearing errors when receiving VOR and ILS signals. The N4-4 provides considerably more gain at the horizon than fuselage mounted “”deer horn”” or “”vee”” antennas. Improved signal to noise ratio and reduced errors is due to the N4-4 greater discrimination against vertically polarized signals, and when properly installed on helicopters greater rotor modulation rejection is also provided. To obtain maximum performance, the installation location must be carefully considered.

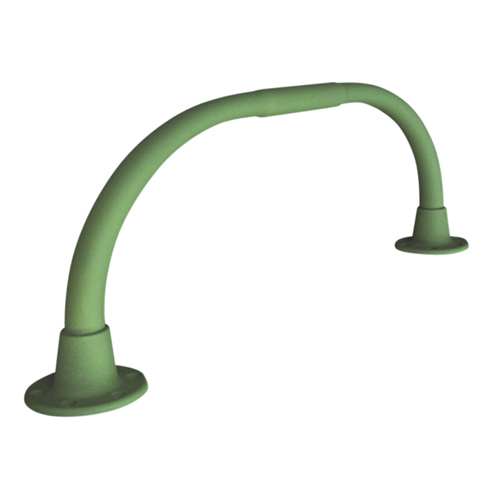

This N4-4 navigation antenna (DM N4-4.1) is a single radiating element only.
Features
- True center-fed antenna reduces bearing errors
- Improved signal to noise ratio
- Designed specifically for lightweight planes and helicopters
- Magnesium tubing weighing only 2 lb
Specifications
Weight:
2 lb
Connector:
BNC
Mounting:
on opposite vertical surfaces off aircraft
Frequency Range:
108 MHz – 122 MHz
VSWR:
< 5.0:1
Gain:
0±2 dB
Impedance:
50Ω
Polarization:
Horizontal
Radiation Pattern:
omnidirectional in the azimuth plane, approx. cos q in the vertical plane
Efficiency:
95%
Power Handling:
Receive only
Environmental:
Military: MIL-E-5400, MIL-T-5422
FAA: TSO C40a
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 0.1 × 0.1 × 0.1 in |
| Brand | Harris Corp. |
