DM N48-3 VOR/LOC Balanced Loop Antenna | 108MHz–118MHz, BNC Male Connector, 4-Hole Mount (each side)
The N48 series is a balanced loop design assures an omni-directional radiation pattern at the horizon to obtain the maximum signal for standard VOR and area navigation systems installed in lightweight aircraft, medium twins, and helicopters operating up to 250 mph.
The DM 48-3 antenna utilizes a phasing coupler which enables ease of installation in an access panel is not available or if the vertical stabilizer is too narrow at the point of installation it makes is necessary to install the antenna with both ends cable leads forward or aft.
The DM N48 LOC/VOR balanced loop antenna ensures a omni-directional radiation pattern at the horizon. This provides for maximum signal for standard VHF omnidirectional radio range localizer and navigation systems installed in lightweight aircraft, medium twin engine aircraft, and helicopters operating up to 250 MPH.

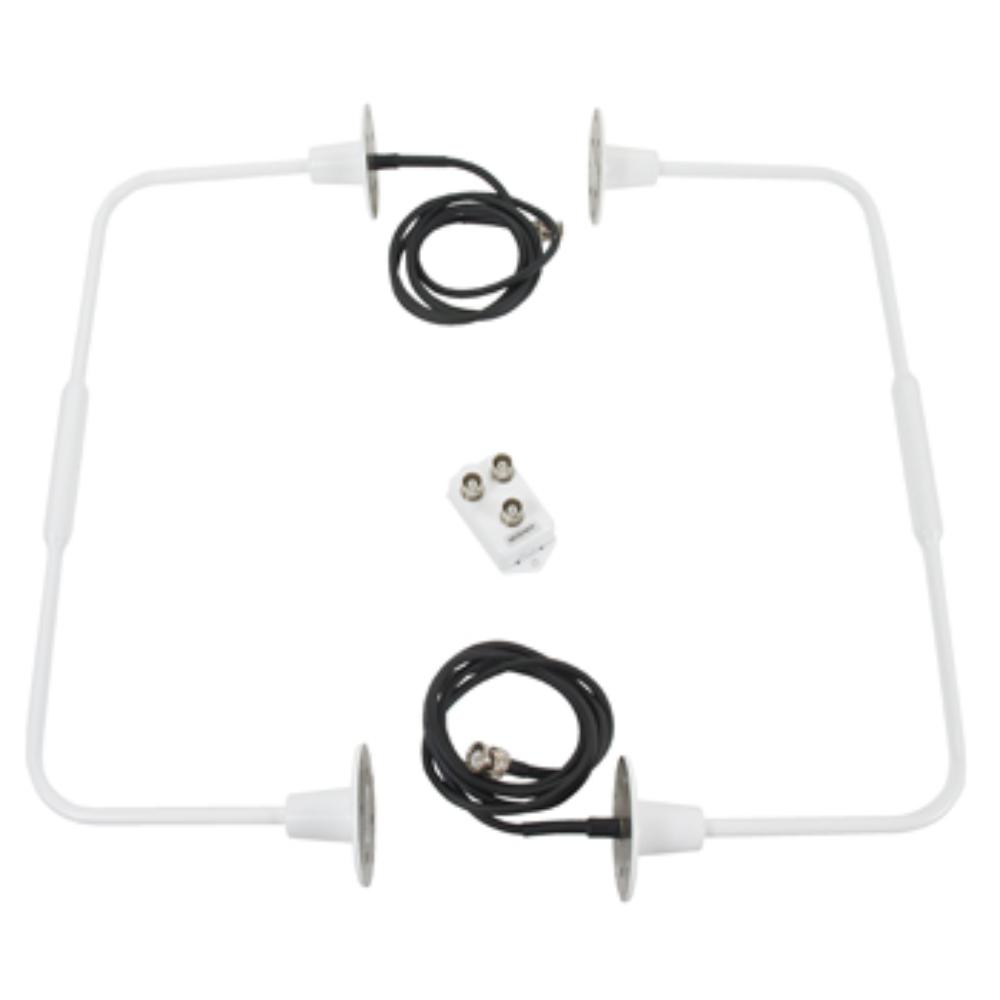

This DM N48 VOR/LOC loop antenna (N48-3) has a BNC male connector, 4-hole mount on each side, and white polyurethane finish. A phasing coupler must be used for connecting the antennas.
Features
- Balanced loop design
- VOR/LOC
- Extremely lightweight
- 250 mph rating
Specifications
Weight:
1.12 lb (0.51 kg)
Connector:
BNC male
Finish:
white polyurethane
Frequency Range:
108 MHz – 118 MHz
VSWR:
5.0:1
Impedance:
50Ω
Polarization:
horizontal
Radiation Patterns:
omni-directional
DC Resistance:
open circuit
Power Handling:
receive only
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 0.1 × 0.1 × 0.1 in |
| Brand | Harris Corp. |
