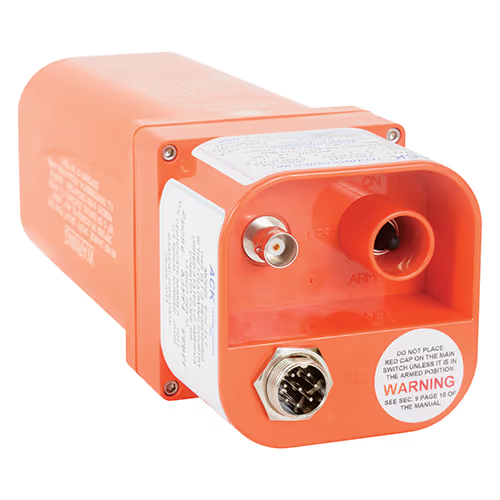

E-04C ELT System | 406/121.5 MHz, GPS Capable, Includes Full Install Kit and No Antenna
$1,287.00
The E-04C ELT is a GPS-capable 406 ELT designed for use on corporate and commercial aircraft that transmits on 406 MHz and 121.5 MHz. The E-04C is certified to the TSO-C126b standard. This unit is certified to accept data from Garmin Aviation, Bendix/King Aviation, NMEA 0183, and ARINC 426 Data. If the unit loses power, it will retain all GPS coordinates. An excellent retrofit, the E-04C fits Artex and Kannad panel cutouts.
This E-04C ELT System includes the E-04C 406/121.5 MHz ELT, full installation kit, with no antenna.
Features
- GPS-capable ELT
- Certified to TSO-C126b standard
- Accepts Garmin Aviation, NMEA 0183, and ARINC 429 data
- Retains GPS coordinates after power is removed
- Remote fits Artex and Kannad panel cutouts
Specifications
Weight:
1.6 lb
Dimensions:
7.75 x 2.85 x 2.85 in
Frequency:
121.5 & 406.037 MHz
Modulation:
121.5 MHz ± 6 KHz AM (3K20A3N)
406 MHz ± 2 KHz bi-phase L (16KOG1D)
Swept Downward:
1400–400 Hz
Repetition Rate:
3 Hz
Modulation Factor Duty Cycle:
≥ 90% / ≥ 45%
Power at Terminal 50Ω Load:
121.5 MHz: 20.7 dBm 50 hours @ -20°C
406 MHz: 37.3 dBm 24.5 hours @ -20°C
Peak EIRP with E-04.8 Whip Antenna and E-04.10.4 Coax Cable:
121.5 MHz: 22 dBm 160 mW
406 MHz: 39.79 dBm 13.7 W
Peak EIRP with S65-1231 Whip Antenna and E-04.10.4 Coax Cable:
121.5 MHz: 23 dBm 200 mW
406 MHz: 39.79 dBm 13.7 W
Crash Activation:
4.5 FpS ± 0.5 FpS
Battery:
Lithium, Certified to TSO-C142a
Certifications:
FAA / Transport Canada, TSO-C126b
TSO-C91a TSO-142a EASA, ETSO-2C126, ETSO-2C91a, TSO-142a, Industrial Canada, 1863A-E04AF, Brazil ANAC/ANTEL: TSO-C126 TSO-C142a
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand | ACK |
