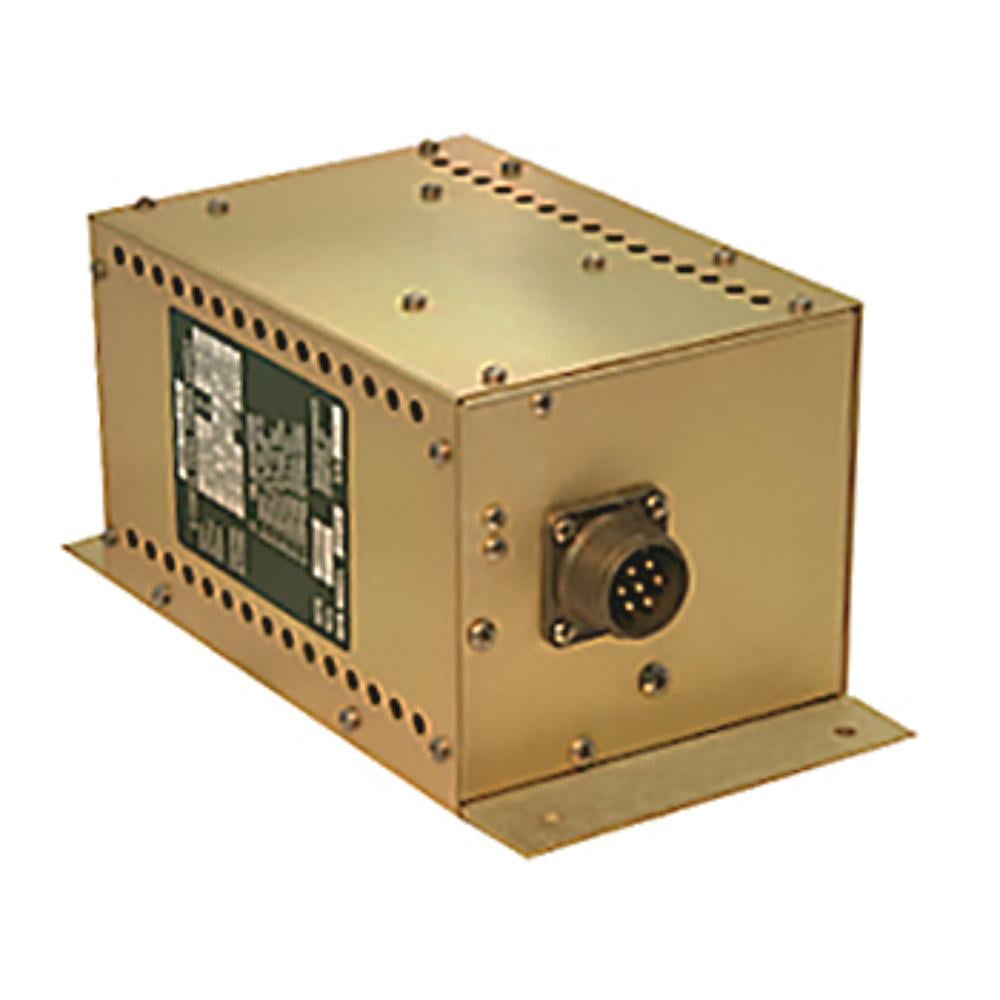

E/L PANEL INVERTER/AC to AC E/L panel power converter, 350 VA, 115 V, 400 Hz

The FD15 is a pulse width modulated AC to AC power converter that provides regulated 0 to 115 VAC, 400 Hz power up to 1.3 Amps for EL panel lighting. The FD15 powers 750 to 1,000 square inches of a EL panel and the output voltage is controlled by an external 10k potentiometer at a 1/2 watt to ground or directly from a 0 to 5 VDC voltage source applied to pin E. An internal trim pot is provided to adjust the voltage 10% at its full clockwise position of the external pot. Circuit protection includes low input voltage shutdown, soft start, high input voltage shutdown, output over limit, and open short circuit current limit

Call for Pricing

Contact Cost Aero at 855-500-3044 for pricing

15 Items sold in last 13 days
4 People watching this product now!
SKU: FD15 Categories: ,
Description
The FD15 is a pulse width modulated AC to AC power converter that provides regulated 0 to 115 VAC, 400 Hz power up to 1.3 Amps for EL panel lighting. The FD15 powers 750 to 1,000 square inches of a EL panel and the output voltage is controlled by an external 10k potentiometer at a 1/2 watt to ground or directly from a 0 to 5 VDC voltage source applied to pin E. An internal trim pot is provided to adjust the voltage 10% at its full clockwise position of the external pot. Circuit protection includes low input voltage shutdown, soft start, high input voltage shutdown, output over limit, and open short circuit current limit



Additional information
Weight .1 lbs
Dimensions 10 × 8 × 6 in
Brand

KGS Electronics
