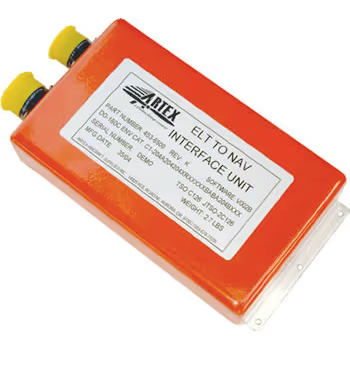

ELT to NAV Interface | 24-bit Programming, Install kit
Contact Cost Aero at 855-500-3044 for pricing
Features
- Includes install kit
- Works with 28V aircraft systems only
- Allows the ELT to transmit latitude and longitude of the aircraft
- Connects C406 and G406 series ELTs to the aircraft Flight Management Computer or GPS receiver
- Programs ELT with the 24-bit address of the aircraft
- Compatible with Garmin, UNSD, ARNAV, IIMorrow, Bendix King systems
Specifications
Weight:
2.7 lb (1.2 Kg)
Dimensions:
9.25 x 5 x 1.95 in
Vibration:
10 G(5 Hz to 2000 Hz)
Shock Test:
500 G @ 4 mSec
Crash Worthiness:
100 G @ 23 mSec
Altitude:
50,000 FT
Impact:
220 PSI (25 Kg from 6 in)
Crush:
1000 lb
Auto Reprogramming:
24-bit aircraft address (Mode S number)
Interface:
ARINC 429- all
RS-232- 9600 baud, parity: none, data bits: 8, stop bits: 1, STX & ETX required, “”A”” identifier for lat; “”B”” identifier for long
NAV Systems:
GPS-loran-inertial NAV-FMC
Operating Temperature:
-20°C to +55°C
Voltage requirements:
+28VDC ±5VDC
Current Draw:
300mA maximum
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand | ACR Artex |
